24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center

Condition : New

Spindle Taper : BT40

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3200x2560x2960mm

Weight (T) : 6.3 T

Table Size (mm) : 1200x600

CNC Control System : Siemens

Number of Axes : 3

Table Travel (X) (mm) : 1000

Table Travel (Y) (mm) : 600

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : ±0.01

Repeatability (X/Y/Z) (mm) : ±0.008

Range of Spindle Speed(r.p.m) : 1 - 8000 r.p.m

Spindle Motor Power(kW) : 11/15

Max. Table Load(kg) : 800 kg

Feed Speed(mm/min) : 1 - 10000 mm/min

Min. Time of Tool Change(s) : 2

Tool Magazine Capacity : 24

Key Selling Points : High-accuracy

Warranty : 12 Months

Place of Origin : Henan, China

Brand Name : TIMAC, TIMEWAY

Voltage : 380V/50Hz

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Color : Custom-made

X/Y-axis guideway : Linear-rail

Z-axis guideway : sliding-rail

Z-axis balancing device : Heavy casting

Tool magazine type : Arm-type ATC

ATC capacity : 24tools

Tool diameter : 78/120mm

Tool length : 300mm

Tool weight : 8kg

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Turkey, Italy, France, Brazil, Peru, India, Mexico, Russia, Spain, Japan, Colombia, Algeria, Romania, South Africa, Ukraine

Certification : ISO9001, CE

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Energy & Mining

Showroom Location : Canada, United States, Italy, France, Brazil, Peru, India, Mexico, Russia, Spain, Chile, Algeria, Uzbekistan, Australia

Core Components : SIEMENS CNC system

Rapid Feed Speed(m/min) : 36/36/15

Packaging Details : Wooden case

Port : China port

Supply Ability : 300 Set/Sets per Year

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Products Description

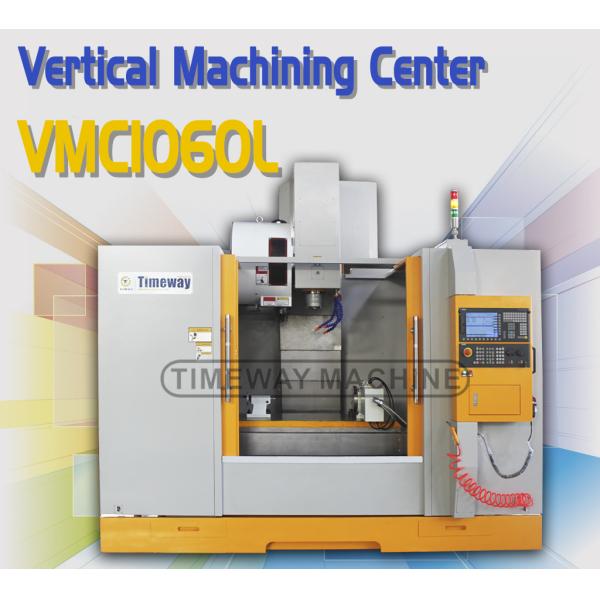

24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Specification
Unit
VMC1060L
X/Y/Z-axis guideway type
/
X/Y: Linear guide rail, Z: Sliding guide rail
Capacity
X-axis travel
mm
1000
Y-axis travel
mm
600
Z-axis travel
mm
600
Table
Table size
mm
1200×600
Loading capacity
kg
800
T-slots (No./width/pitch)
mm
5-18-110
Distance spindle nose to table center
mm
120-720
Spindle
Distance spindle center to column
mm
655
Spindle taper
/
BT-40 (150)
Spindle speed
r/min
8000
Main motor power
kw
11/15
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)
kw
3/3/3
X/Y/Z-axis servo motor (FANUC)
Nm
β22/β22/β22
X/Y/Z-axis rapid feed speed
m/min
36/36/15
X/Y/Z-axis cutting feed speed
mm/min
0-10000
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.008
X/Y/Z-axis repeat positioning accuracy
mm
±0.006
Tool magazine (ATC)
ATC style
/
Disc
ATC capacity
tools
24
Tool change time (tool to tool)
sec
1.4
Max. tool weight
kg
8
Max. tool diameter
mm
Φ78/Φ120 (Empty)
Max. tool length
mm
300
Others
Power supply
KVA
25
Air pressure require
kg/cm2
6-8
Z-axis balancing system
/
Heavy casting
Machine weight
kg
6300
Overall dimension (LxWxH)
mm
3200×2560×2960
CNC system
/
FANUC/MITSUBISHI
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Machine Details
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
========================
>> Hardened and fine ground worktable surface make sure high rigidity.

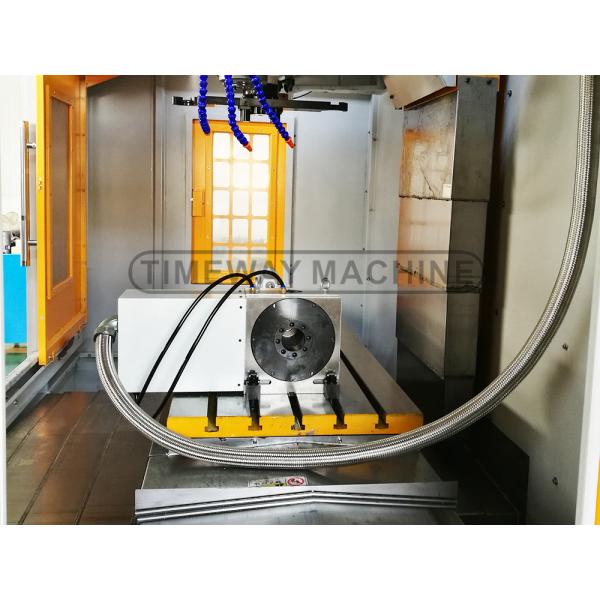

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
========================
>> Choose Taiwan BT40 disc-type tool magazine, standard 24tools, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> SIEMENS CNC system comes standard.
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
========================
>> Chain-type chip conveyor comes optional.

Why Choose Us
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
24 Tools ATC Capacity Vertical Type Milling Machine for Custom-made Machining Center
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
