High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time

Condition : New

Spindle Taper : BT40

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 2800x2350x2800mm

Weight (T) : 5.2 T

Table Size (mm) : 550x1000mm

CNC Control System : GSK, FANUC, Siemens

Number of Axes : 3

Table Travel (X) (mm) : 800

Table Travel (Y) (mm) : 550

Table Travel (Z) (mm) : 550

Positioning Accuracy (mm) : ±0.005

Repeatability (X/Y/Z) (mm) : ±0.005

Range of Spindle Speed(r.p.m) : 0.1 - 8000 r.p.m

Spindle Motor Power(kW) : 11

Max. Table Load(kg) : 500 kg

Feed Speed(mm/min) : 0.1 - 10000 mm/min

Min. Time of Tool Change(s) : 1

Tool Magazine Capacity : 24, Other

Key Selling Points : Long Service Life

Warranty : 12 Months

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : 200-480V

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Control system : FANUC 0i- MF or SIEMENS 808D

Machine Type : Vertical CNC milling machine foe metal

Working accuracy : IT6

4th-axis : Optional

Tool magazine : Disc-type ATC

ATC tool capacity : 24 tools

Tool weight : 8kg

Tool length : 300mm

After Warranty Service : Online support

Certification : EAC, ISO

Applicable Industries : Machinery Repair Shops, Manufacturing Plant

Showroom Location : Egypt, Canada, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Morocco, Argentina, Colombia, Algeria, Romania, Uzbekistan, Australia

Rapid Feed Speed(m/min) : 48

Core Components : FANUC or SIEMENS CNC system

Packaging Details : Wooden case(can be fumigated)

Supply Ability : 200 Set/Sets per Month

Price : $45,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Products Description
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Applications of the vertical machining center:
The VMC-G series vertical machining center is a vertical milling machine controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Specification
Unit
VMC850G
VMC855G
X/Y/Z-axis guideway type
/
Linear guide rail
Linear guide rail
Capacity
X-axis travel
mm
800
800
Y-axis travel
mm
500
550
Z-axis travel
mm
500
550
Table
Table size
mm
1000×500
1000×550
Loading capacity
kg
500
500
T-slots (No./width/pitch)
mm
5-18-100
5-18-100
Distance spindle nose to table center
mm
110-610
110-660
Spindle
Distance spindle center to column
mm
524
600
Spindle taper
/
BT-40
BT-40
Spindle speed
r/min
8000
8000
Main motor power
kw
7.5/11
7.5/11
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)
kw
2/2/3
2/2/3
X/Y/Z-axis servo motor (FANUC)
Nm
β12/β12/β22
β12/β12/β22
X/Y/Z-axis rapid feed speed
m/min
48/48/48
48/48/48
X/Y/Z-axis cutting feed speed
mm/min
0-10000
0-10000
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.003/300
±0.003/300
X/Y/Z-axis repeat positioning accuracy
mm
±0.003/300
±0.003/300
Tool magazine (ATC)
ATC style
/
Disc
Disc
ATC capacity
tools
24
24
Tool change time (tool to tool)
sec
1.4
1.4
Max. tool weight
kg
8
8
Max. tool diameter
mm
Φ78/Φ120 (Empty)
Φ78/Φ120 (Empty)
Max. tool length
mm
300
300
Others
Power supply
KVA
20
20
Air pressure require
kg/cm2
6-8
6-8
Z-axis balancing system
/
no
no
Machine weight
kg
4200
5200
Overall dimension (LxWxH)
mm
2800×2250×2600
2800×2350×2800
CNC system
/
FANUC/MITSUBISHI
FANUC/MITSUBISHI
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
√ FANUC 0i MF CNC system
√ X/Y/Z: Linear guide rails
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Machine Details
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
========================
>> Taiwan high rigid precision spindle, belt-driven by servo motor, large torque, high spindle speed and low noise.
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
========================

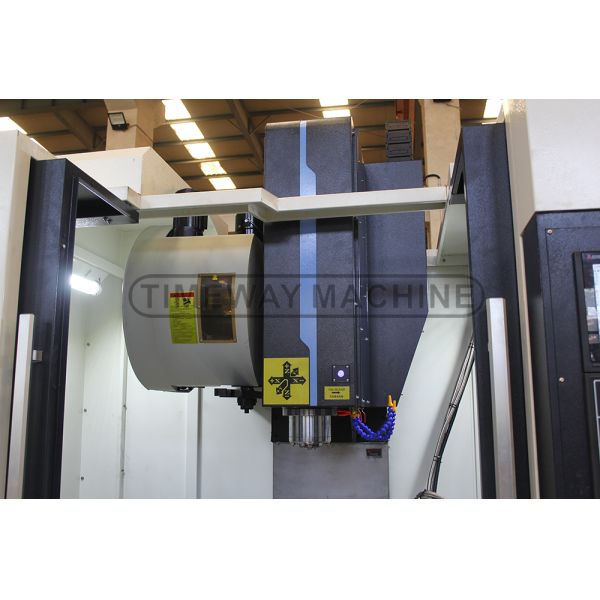

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
========================
>> Chain-type chip conveyor comes optional.

Why Choose Us
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
High Productivity VERTICAL CNC Vertical Machining Center with 1 Min. Tool Change Time
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
