VMC Center Milling Machine with Automatic Controlling Mode and High Feed Speed

Name: VMC Center Milling Machine with Automatic Controlling Mode and High Feed Speed
Brand: TIMEWAY
Price: 49 USD

Quality VMC Center Milling Machine with Automatic Controlling Mode and High Feed Speed for sale

Condition : New

Spindle Taper : BT40

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3200x2560x2960mm

Weight (T) : 6.3 T

Table Size (mm) : 1200x600

CNC Control System : FANUC

Number of Axes : 3

Table Travel (X) (mm) : 1000

Table Travel (Y) (mm) : 600

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : ±0.008

Repeatability (X/Y/Z) (mm) : ±0.005

Range of Spindle Speed(r.p.m) : 1 - 8000 r.p.m

Spindle Motor Power(kW) : 11/15

Max. Table Load(kg) : 800 kg

Feed Speed(mm/min) : 1 - 10000 mm/min

Min. Time of Tool Change(s) : 2

Tool Magazine Capacity : 24

Key Selling Points : Long Service Life

Warranty : 12 Months

Place of Origin : Henan, China

Brand Name : TIMEWAY

Voltage : 220V-480V

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Large size CNC vertical machining center

color : Black-white

Controlling Mode : Automatic

Control system : FANUC 0i MF

Max. travel of table : 1000/600

Max. travel of headstock : 600

T-slots : 5-18x110

X/Y/Z-axis rail : Linear rail

Z-axis rail : Sliding rail

Tool magazine : Disc-type 24 tools ATC

Applicable Industries : Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Uzbekistan, Australia

Rapid Feed Speed(m/min) : 36/36/15

Core Components : FANUC cnc system

Packaging Details : Wooden Case(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $49,999.00/sets >=1 sets

MOQ : 1 set

Contact Now

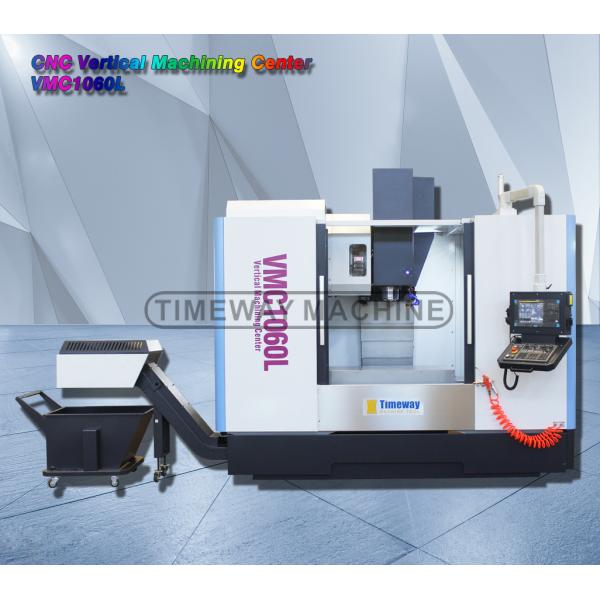

VMC Center Milling Machine with Automatic Controlling Mode and High Feed Speed

Products Description

Applications of the vertical machining center:

The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.

Equipped with 4th axis for machining round pieces.

Equipped with B+C axis cradle type NC rotary table.

Equipped with A+C axis NC rotary table.

Equipped with swivel head (B-axis) + NC rotary table (C-axis).

Specification	Unit	VMC650L
X/Y/Z-axis guideway type	/	X/Y: Linear guide rail, Z: Sliding guide rail
Capacity
X-axis travel	mm	1000
Y-axis travel	mm	600
Z-axis travel	mm	600
Table
Table size	mm	1200×600
Loading capacity	kg	800
T-slots (No./width/pitch)	mm	5-18-110
Distance spindle nose to table center	mm	120-720
Spindle
Distance spindle center to column	mm	655
Spindle taper	/	BT-40 (150)
Spindle speed	r/min	8000
Main motor power	kw	11/15
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)	kw	3/3/3
X/Y/Z-axis servo motor (FANUC)	Nm	β22/β22/β22
X/Y/Z-axis rapid feed speed	m/min	36/36/15
X/Y/Z-axis cutting feed speed	mm/min	0-10000
Accuracy
X/Y/Z-axis positioning accuracy	mm	±0.008
X/Y/Z-axis repeat positioning accuracy	mm	±0.006
Tool magazine (ATC)
ATC style	/	Disc
ATC capacity	tools	24
Tool change time (tool to tool)	sec	1.4
Max. tool weight	kg	8
Max. tool diameter	mm	Φ78/Φ120 (Empty)
Max. tool length	mm	300
Others
Power supply	KVA	25
Air pressure require	kg/cm2	6-8
Z-axis balancing system	/	Heavy casting
Machine weight	kg	6300
Overall dimension (LxWxH)	mm	3200×2560×2960
CNC system	/	FANUC/MITSUBISHI

√ FANUC 0i MF CNC system

√ X/Y: Linear guide rails, Z: Sliding guide rail

√ Taiwan BT40 spindle, 8000rpm

√ Taiwan disc-type ATC with 24tools

√ Full enclosure

√ Manual pulse generator (MPG)

√ USB & LAN interface

√ Work lamp

√ Pilot lamp

√ Cooling system

√ Centralized automatic lubrication system

√ Spindle air blast

√ Air gun

√ Milling arbor & chuck

√ Heat exchanger for electric cabinet

√ Tools & tool-box

√ Leveling wedge & bolts

√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND

_ 4th axis

_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle

_ Coolant through spindle (CTS)

_ Spindle oil cooler

_ Air conditioner

_ Chain-type chip conveyor

_ Water gun

_ Safety door

_ Tool measurement system

_ Workpiece measurement system

Machine Details

========================

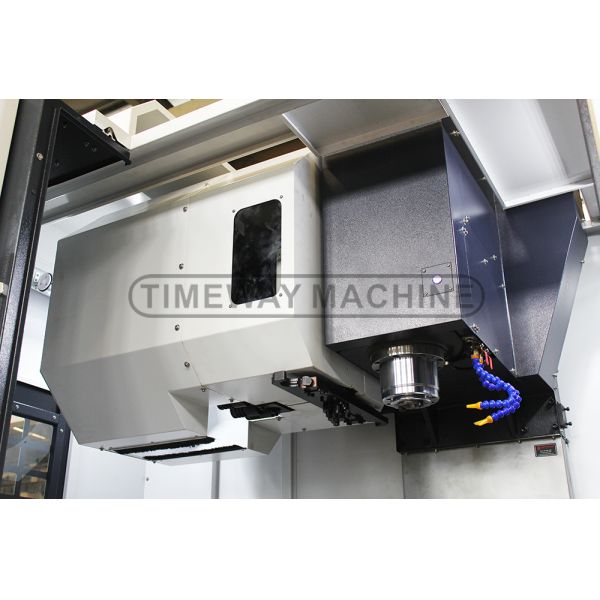

>> Standard Taiwan high rigidity precise spindle, running stable and low noise.

>> According to customer's requirement, we can provide 10000/12000/15000 rpm high speed spindle with oil cooler.

========================

>> Hardened and fine ground worktable surface make sure high rigidity.

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.

========================

>> Large working space can meet the processing requirement of different size pieces.

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.

========================

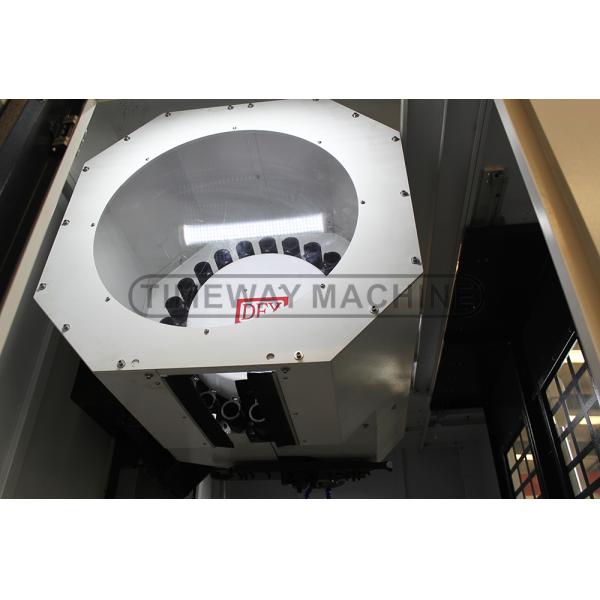

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.

========================

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.

>> Standard FANUC 0i MF CNC system. Mitsubishi CNC system comes optional.

========================

>> Chain-type chip conveyor comes optional.

Why Choose Us

Renishaw laser interferometer for CNC vertical machining center：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
