800mm Table Travel Five-axis Vertical CNC Machining Center for Small Batch Production

Name: 800mm Table Travel Fiveaxis Vertical CNC Machining Center for Small Batch Production
Brand: TIMAC
Price: 280 USD

Quality 800mm Table Travel Five-axis Vertical CNC Machining Center for Small Batch Production for sale

Condition : New

Spindle Taper : Other

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 2660*4655*2650mm

Weight (T) : 12 T

CNC Control System : FANUC

Number of Axes : 5

Table Travel (X) (mm) : 800

Table Travel (Y) (mm) : 650

Table Travel (Z) (mm) : 450

Positioning Accuracy (mm) : ±0.012

Repeatability (X/Y/Z) (mm) : ±0.008

Spindle Motor Power(kW) : 15.5 kw

Max. Table Load(kg) : 8 kg

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : High-accuracy

Warranty : 1 Year

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : 380V/50Hz

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Worktable diameter : 650 mm

Max. weight of workpiece : 1000 kg

Spindle speed : 16000 rpm

A-axis swiveling angle : -130deg to +130deg

X/Y/Z axis travel : 800*650*450 mm

A-axis speed : 30 rpm

C-axis speed : 600 rpm

Weight : 12000 kg

Certification : ISO CE

Power : 15.5kw(spindle)

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Showroom Location : Italy, Peru, Indonesia, Mexico, Russia, Thailand, Chile, Colombia, South Africa, Australia

Core Components : Motor

Packaging Details : Standard package

Port : China Port

Supply Ability : 100 Set/Sets per Year

Price : $280,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

800mm Table Travel Five-axis Vertical CNC Machining Center for Small Batch Production

1. Improved gantry framework and the whole machine structure design.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.

Specifications		Specifications	Unit	FMC-600	FMC-600T (with turning)
Capacity	Max. swiveling diameter of workpiece	mm	Φ800	Φ800
		Max. milling width	mm	800	800
		Max. milling height	mm	420	420
		The diameter of worktable	mm	Φ650*540	Φ650
		Max. weight of workpiece	kg	1000	1000; 500(turning)
Travel	X/Y/Z-axis travel	mm	800/650/450	800/650/450
		A-axis swiveling angle range	°	-130°- +130°	-130°- +130°
		C-axis rotary angle range	°	Any-angle	Any-angle
Spindle	Max. spindle torque	N.m	42/62	42/62
		Max. spindle speed	rpm	16000	16000
		Spindle motor rated power	kw	15.5	15.5
		Type of tool shank		HSK-A63	HSK-A63
		Tool center out of the water		Optional	Optional
		Spindle directional		Yes	Yes
		Positioning lock		No	Yes
A-axis	Type of drive		Direct-drive by torque motor	Direct-drive by torque motor
A-axis		Torque of drive S1/S6	N.m	1880/3480	1880/3480
C-axis	Type of drive		Direct-drive by torque motor	Direct-drive by torque motor
C-axis		Torque of drive S1/S6	N.m	860/1620	860/1620
Max. feed speed	X/Y/Z-axis	m/min	48; 60	48; 60
		A-axis	rpm	30	30
		C-axis	rpm	80	600
Min setting unit	X/Y/Z-axis	um	1; 0.1	1; 0.1
Min setting unit		C-axis	°	0.001°; 0.0001°	0.001°; 0.0001°
Full closed-loop control	X/Y/Z-axis		Standard	Standard
Full closed-loop control		A/C-axis		Standard	Standard
Positioning accuracy	X/Y/Z-axis	um	8; 5	8; 5
Positioning accuracy		A/C-axis	"	8; 5	8; 5
Repositioning accuracy	X/Y/Z-axis	um	5; 3	5; 3
Repositioning accuracy		A/C-axis	"	5; 3	5; 3
Tool magazine	Capacity		32	32
		Max. diameter of tool	mm	Φ80	Φ80
		Max. length of tool	mm	300	300
		Max. weight of tool	kg	8	8
Accessory	Wireless workpiece gauge head	um	±3(Repositioning accuracy)
Accessory		Tool setting gauge	um	±3(Repositioning accuracy)
Machine weight	N.W	kg	12000	12000
CNC system	Model		GNC61 CNC system

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

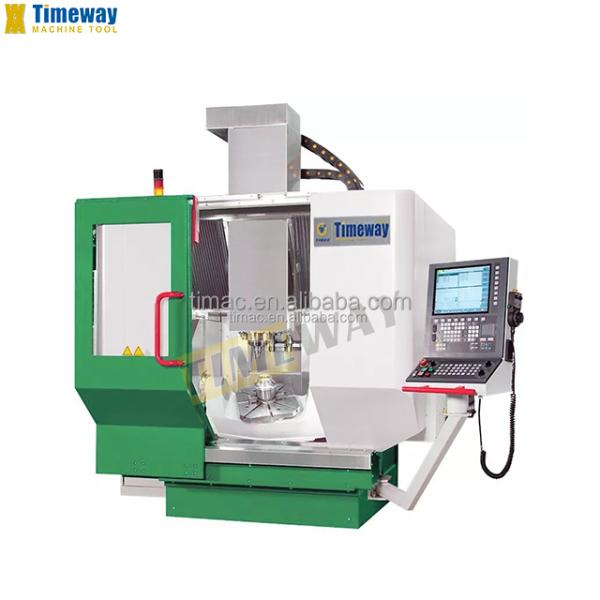

800mm Table Travel Five-axis Vertical CNC Machining Center for Small Batch Production Images
