BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining

Product Categories
Zhengzhou Timeway Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : Gantry

Dimension(L*W*H) : 2300x850x512

Weight (T) : 153 T

Table Size (mm) : 4000x12000

CNC Control System : GSK, FANUC, MITSUBISHI, Siemens

Number of Axes : 3

Table Travel (X) (mm) : 12000

Table Travel (Y) (mm) : 5600

Table Travel (Z) (mm) : 1500

Positioning Accuracy (mm) : ±0.003

Repeatability (X/Y/Z) (mm) : ±0.003

Range of Spindle Speed(r.p.m) : 2000 - 2500 r.p.m

Spindle Motor Power(kW) : 37

Max. Table Load(kg) : 7000 kg

Feed Speed(mm/min) : 8000 - 10000 mm/min

Min. Time of Tool Change(s) : 6

Tool Magazine Capacity : 24

Key Selling Points : High-accuracy

Warranty : 12 Months

Place of Origin : Henan, China

Brand Name : TIMEWAY

Voltage : Customer's Requirement

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Keywords : CNC portal milling machine

Product type : Cnc Milling Machine Metal

Machine Type : CNC Gantry Machining Center

Product name : portal milling machine

Table size : 4000x12000

Structure : Fixed beam moving gantry

X-axis travel : 12000 mm

Y-axis travel : 5600 mm

Z-axis travel : 1500 mm

Number of axis : 3

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Showroom Location : Italy, Peru, Indonesia, Mexico, Russia, Thailand, Chile, South Africa, Tajikistan

Core Components : Motor

Packaging Details : Standard package

Port : China port

Supply Ability : 100 Set/Sets per Year

Price : $700,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

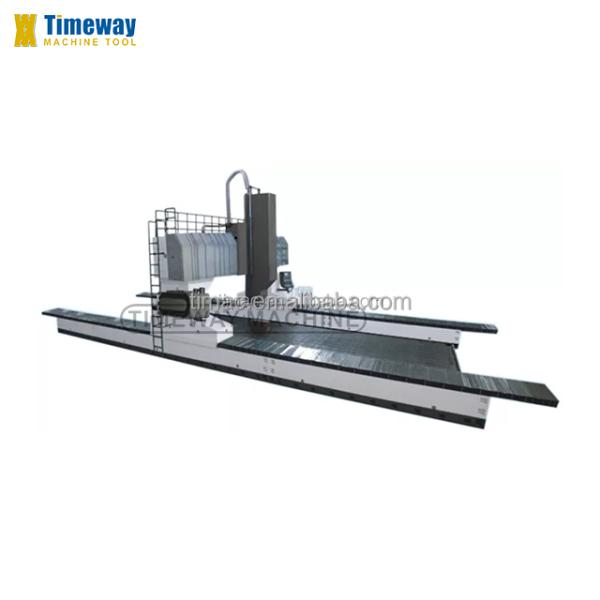

Heavy Duty Fixed Beam Double Column Machining Center Moving Gantry Machine Center
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Technical Parameter：
Specifications
Unit
GA50120B
GA50160B
GA50200B
GA50240B
Worktable size
(WxL)
mm
4000x12000
4000x16000
4000x20000
4000x24000
Headstock vertical
travel (Z axis)
mm
1500
1500
1500
1500
Gantry width
mm
5000
5000
5000
5000
Main motor
kw
37
37
37
37
Net weight (appox.)
T
153
184
215
245
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair;
3. Imported rolling screw, rack, gear box;
4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head;
6. Taiwan production pneumatic cylinder;

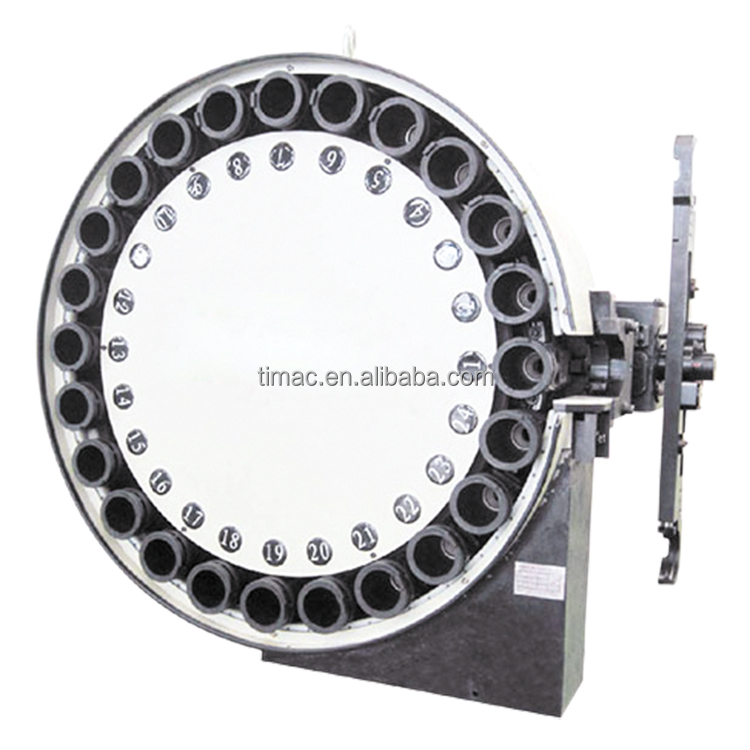

7. Taiwan ATC, carousel type, disc type, chain type are available as option;
8. Imported bearings for leadsrews;
9. Import coupling;
10. Headstock balancing system is hydraulic balance system as option;
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
1. Special milling head: Lengthen milling head, right angle milling head, universal milling head;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor.
Machine details：
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Positive Comments From Customers
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Company Introduction
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Factory Display：
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Text Introduction：
BT50 Spindle Taper Fixed Beam Double Column Machining Center for Heavy Duty Machining
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
