Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed

Name: Exchange Table CNC Horizontal Boring Machine Center with 500 6000 rpm Spindle Speed
Brand: TIMEWAY TIMAC
Price: 300 USD

Quality Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed for sale

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : Horizontal

Dimension(L*W*H) : 3800x6200x3200mm

Weight (T) : 15 T

Table Size (mm) : Other

CNC Control System : FANUC

Number of Axes : 3

Table Travel (X) (mm) : 1050

Table Travel (Y) (mm) : 900

Table Travel (Z) (mm) : 1050

Positioning Accuracy (mm) : ±0.001

Repeatability (X/Y/Z) (mm) : 0.001

Range of Spindle Speed(r.p.m) : 500 - 6000 r.p.m

Spindle Motor Power(kW) : 18.5

Max. Table Load(kg) : 1000 kg

Min. Time of Tool Change(s) : 4

Tool Magazine Capacity : 24

Key Selling Points : High-accuracy

Warranty : 12 Months

Place of Origin : China

Brand Name : TIMEWAY TIMAC

Voltage : 380V/50Hz

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Table size : 630x630mm

Number of table : 2pcs

Table indexing : 0.001°

Spindle speed : 6000rpm

Tool magazine : Disc 24pcs

X axis travel : 1050mm

Y axis travel : 900mm

Warranty period : 1year

Applicable Industries : Manufacturing Plant

Showroom Location : Mexico, Russia, Romania, South Africa

Core Components : PLC

Packaging Details : Wooden pallet or case

Port : China port

Supply Ability : 100 Set/Sets per Month

Price : $300,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Product Description

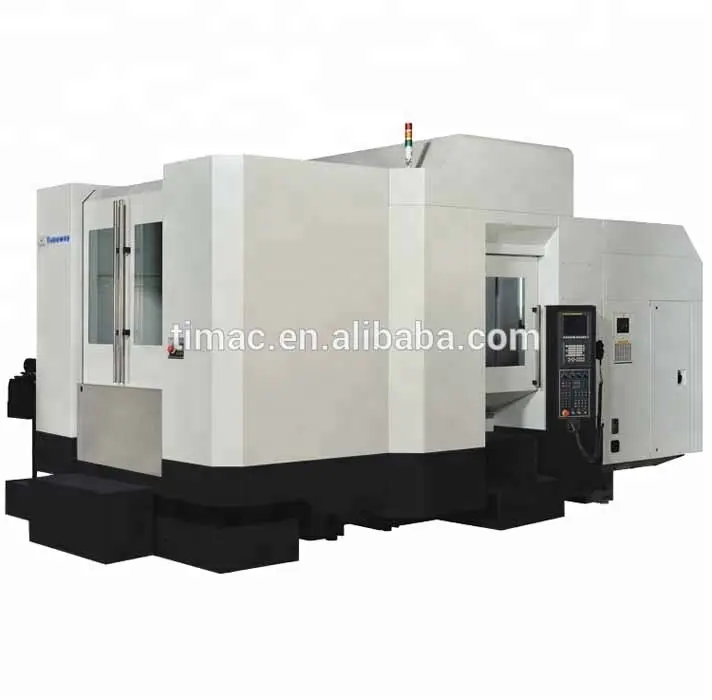

Exchange Table Horizontal Machining Center

Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed

Specification

Techncial parameters	Unit	H3 APC	H4 APC	H5 APC	H6 APC
Wortable size	mm	300x300	400x400	500x500	630x630
Worktable number	-	2	2	2	2
Worktable indexing	°	0.001°	0.001°	0.001°	0.001°
Worktable loading capacity	kg	250kgx2	1000kgx2	600kgx2	1000x2
T slot of worktable (No.-sizexdistance)	-	24-M12(80x80)	5-14x80	5-14x100	24-M16 (125x125)
X axis travel	mm	460	600	900	1050
Y axis travel	mm	350	600	800	900
Z axis travel	mm	350	600	800	1050
Distance from spindle center to worktable	mm	60-410	0-600	0-800	0-900
Spindle taper (Style/diameter)	-	BT40-Φ120	BT40-Φ120	BT50-Φ190	BT50-Φ190
Max. spindle speed	rpm	10000	10000	6000	6000
ATC style/station	-	Disc/24pcs	Disc/24pcs	Disc/24pcs	Disc/24pcs
Max. tool diameter	mm	300	300	350	350
Max. tool length	mm	Φ80	Φ80	Φ127	Φ127
Max. tool weight	kg	7	7	15	15
Main motor	kw	5-7.5	15-18.5	15	15-18.5
Net weight (appox.)	kg	6300	15000	10000	15000
Overall dimension (LxWxH)	mm	2220x3000x2400	2620x4000x2600	3530x4600x2800	3800x6200x3200

Main configuration & accessories:

1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, H3APC/H4APC is direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. Exchangeable NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional configuration & accessories:

1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor;
