Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size

Condition : New

Spindle Taper : BT-40

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : 3400x2460x2960mm

Weight (T) : 4.6 T

Table Size (mm) : 1000x500

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3

Table Travel (X) (mm) : 800

Table Travel (Y) (mm) : 500

Table Travel (Z) (mm) : 500

Positioning Accuracy (mm) : ±0.003

Repeatability (X/Y/Z) (mm) : ±0.003

Range of Spindle Speed(r.p.m) : 1 - 8000 r.p.m

Spindle Motor Power(kW) : 7.5/11

Max. Table Load(kg) : 500 kg

Feed Speed(mm/min) : 1 - 100000 mm/min

Min. Time of Tool Change(s) : 2

Tool Magazine Capacity : 24

Key Selling Points : Automatic

Warranty : 12 Months

Place of Origin : Henan, China

Brand Name : TIMAC

Voltage : 380V/50Hz

Marketing Type : Hot Product 2021

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Color : Custom-made

Spindle speed : 8000rpm

Spindle taper : BT40/150

Tool magazine : Disc type 24 tools

T-slots : 5-18-100

X/Y guideways type : Linear rails

Z guideways type : Sliding rails

Balancing way : Heavy casting

Linear rails and ball screw : Taiwan HIWIN

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Canada, United States, Italy, France, Brazil, Mexico, Russia, Spain, Chile, Ukraine, Uzbekistan

Certification : ISO9001, CE

Applicable Industries : Machinery Repair Shops, Restaurant, Home Use, Energy & Mining

Showroom Location : Canada, United States, France, Germany, Brazil, Mexico, Russia, Spain

Core Components : CNC system

Rapid Feed Speed(m/min) : 48/48/15

Packaging Details : Woode case/Pallet

Port : China ports

Supply Ability : 200 Set/Sets per Month

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Products Description
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Specification
Unit
VMC850L
X/Y/Z-axis guideway type
/
X/Y: Linear guide rail, Z: Sliding guide rail
Capacity
X-axis travel
mm
800
Y-axis travel
mm
500
Z-axis travel
mm
500
Table
Table size
mm
1000×500
Loading capacity
kg
500
T-slots (No./width/pitch)
mm
5-18-100
Distance spindle nose to table center
mm
110-610
Spindle
Distance spindle center to column
mm
524
Spindle taper
/
BT-40 (150)
Spindle speed
r/min
8000
Main motor power
kw
7.5/11
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)
kw
2/2/3
X/Y/Z-axis servo motor (FANUC)
Nm
β12/β12/β22
X/Y/Z-axis rapid feed speed
m/min
48/48/15
X/Y/Z-axis cutting feed speed
mm/min
0-10000
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.008
X/Y/Z-axis repeat positioning accuracy
mm
±0.006
Tool magazine (ATC)
ATC style
/
Disc
ATC capacity
tools
24
Tool change time (tool to tool)
sec
1.4
Max. tool weight
kg
8
Max. tool diameter
mm
Φ78/Φ120 (Empty)
Max. tool length
mm
300
Others
Power supply
KVA
20
Air pressure require
kg/cm2
6-8
Z-axis balancing system
/
Heavy casting
Machine weight
kg
4600
Overall dimension (LxWxH)
mm
2800×2350×2600
CNC system
/
FANUC/MITSUBISHI
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Machine Details
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
========================

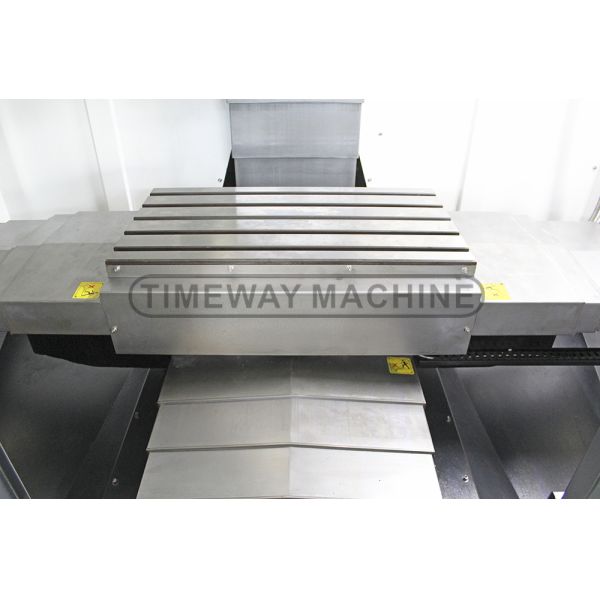

>> Hardened and fine ground worktable surface make sure high rigidity.

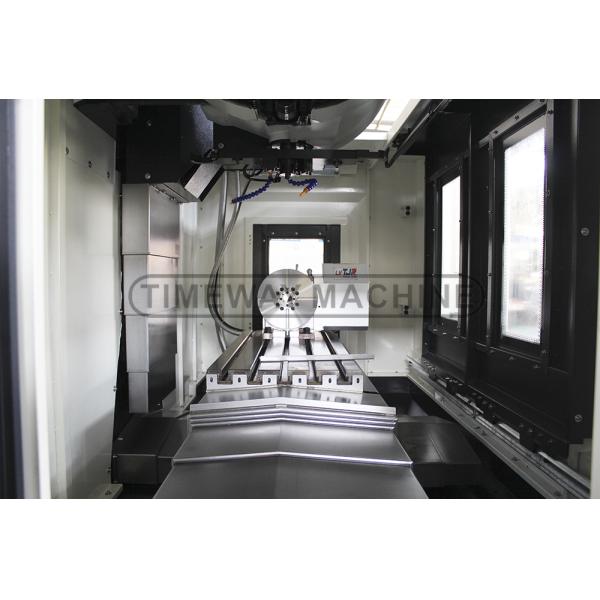

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
========================
>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
========================

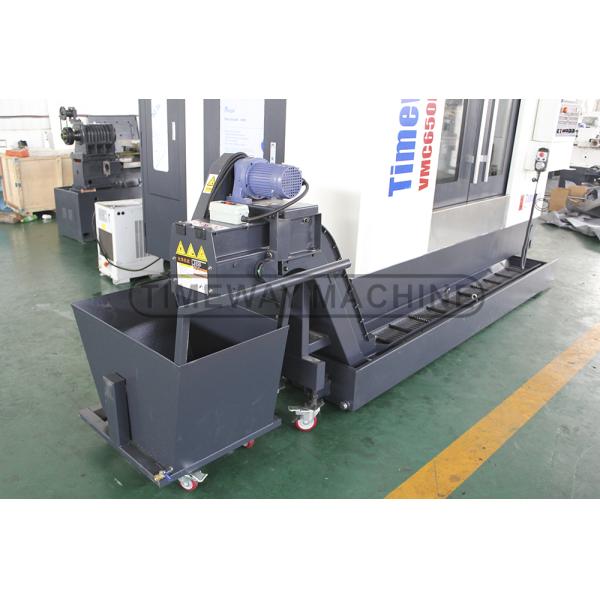

>> Chain-type chip conveyor comes optional.

Why Choose Us
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Linear Rails High Precision CNC Vertical Machining Machine 3-axis Milling Machines 1000x500 Table Size
Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
