24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center

Condition : New

Spindle Taper : BT50

No. of Spindles : Single

Type : Horizontal

Dimension(L*W*H) : 4860x3600x3460mm

Weight (T) : 12 T

Table Size (mm) : 630x630

CNC Control System : FANUC

Number of Axes : 4

Table Travel (X) (mm) : 1100

Table Travel (Y) (mm) : 800

Table Travel (Z) (mm) : 1100

Positioning Accuracy (mm) : ±0.008

Repeatability (X/Y/Z) (mm) : ±0.005

Range of Spindle Speed(r.p.m) : 1 - 6000 r.p.m

Spindle Motor Power(kW) : 15/18.5

Max. Table Load(kg) : 1500 kg

Feed Speed(mm/min) : 1 - 8000 mm/min

Min. Time of Tool Change(s) : 5

Tool Magazine Capacity : 24

Key Selling Points : Flexible Manufacturing

Warranty : One Year

Place of Origin : Henan, China

Brand Name : TIMEWAY

Voltage : 380V/50Hz or order

Marketing Type : Hot Product 2021

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Color : Custom-made

Worktable size : 630x630mm

Rotary worktable : 1° or 0.001°

T-slots : 5-18-100

Tool magazine capacity : 24tools

ATC Tool diameter : 112/200mm

ATC Tool length : 300

ATC tool weight : 18kg

ATC tool change time : 5sec

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Advertising Company

Showroom Location : Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Uzbekistan, Australia

Core Components : FANUC

Rapid Feed Speed(m/min) : 24/24/24

Packaging Details : Standard Package or As customer's requirement

Port : China Ports

Supply Ability : 300 Set/Sets per Year

Price : $75,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
Products Description
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
Applications of the vertical machining center:

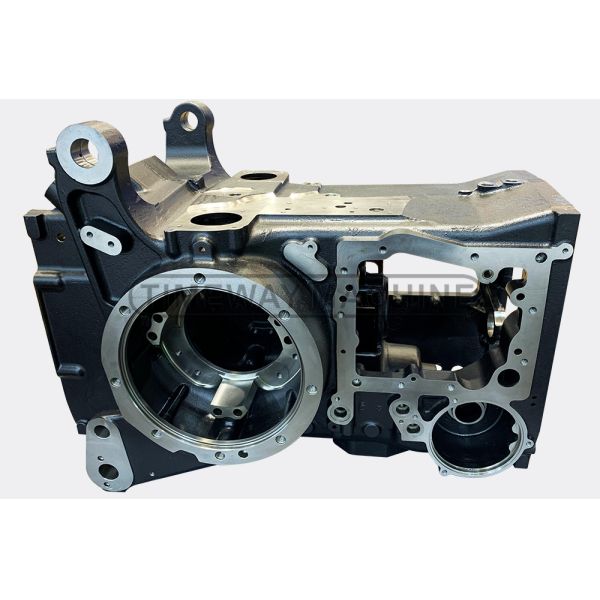

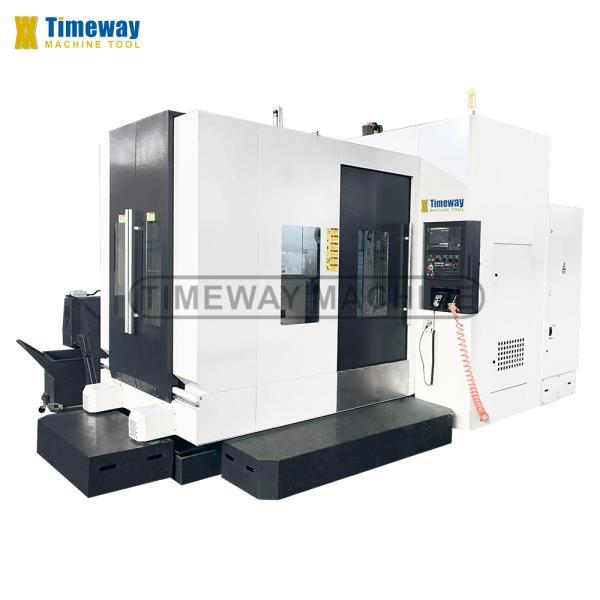

The HMC series horizontal machining center is a CNC horizontal machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Standard equipped with B axis (NC rotary table) dividing processing requirement.
The structure of HMC horizontal machining center can divide into three kinds: Positive T-type; Inverted T-type; Cross-type. Realize various processing requirements of the different size and different shape workpieces.
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
Specification
Unit
HMC630
Machine structure
/
Positive T-type
Capacity
X-axis travel
mm
1100
Y-axis travel
mm
800
Z-axis travel
mm
1100
Table (B-axis)
B-axis servo motor torque (FANUC)
/
Bis22
Table size
mm
630×630
Table number
pcs
1
Table indexing
°
1°×360
T-slots (No./width/pitch)
/
5-18-100
Table rotation speed
rpm
16.6
Loading capacity
kg
1500
Locking force (35kg / cm2)
kg/m
5000
Spindle
Distance spindle center to table
mm
50-850
Distance spindle nose to table center
mm
125-1225
Spindle taper
/
BT-50
Spindle speed
rpm
6000
Main motor power
kw
15/18.5
3-axis (X/Y/Z)
X/Y/Z-axis servo motor (FANUC)
/
bis30/bis30/bis30
X/Y/Z-axis cutting feed speed
mm/min
1-8000
X/Y/Z-axis rapid feed speed
m/min
24/24/24
X/Y/Z-axis rails type
-
X/Z: Linear/Y: sliding
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.008
X/Y/Z-axis repeat positioning accuracy
mm
±0.005
B-axis positioning accuracy
"
±10"
Tool magazine (ATC)
ATC style
/
Disc
ATC capacity
tools
24
Tool change time (tool to tool)
sec
5
Max. tool weight
kg
18
Max. tool diameter
mm
Φ112/Φ200
Max. tool length
mm
300
Others
Power supply
KVA
40
Air pressure require
kg/cm2
8
Machine weight
kg
12000
Overall dimension (LxWxH)
mm
4860×3600×3460
CNC system
/
FANUC
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
√ FANUC 0i MF CNC system
√ X/Z: Linear guide rails, Y: Sliding guide rail
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan NC rotary table (B-axis)
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
Machine Details
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
========================
>> Adopts positive T-type machine structure.
>> X/Z-axis adopt Taiwan HIWIN heavy-load Roller linear guide rails and HIWIN ball screw.
>> Hardened and fine ground worktable surface make sure high rigidity.

========================

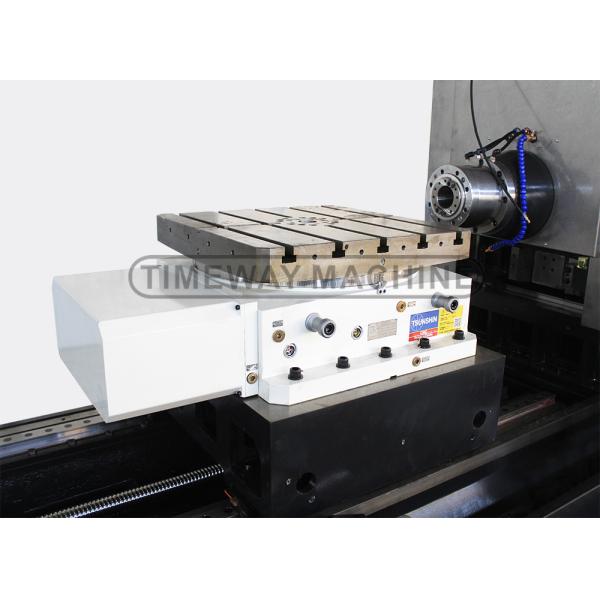

>> B-axis: Taiwan 1° NC rotary table comes standard, customer can choose 0.001° NC rotary table.
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
========================

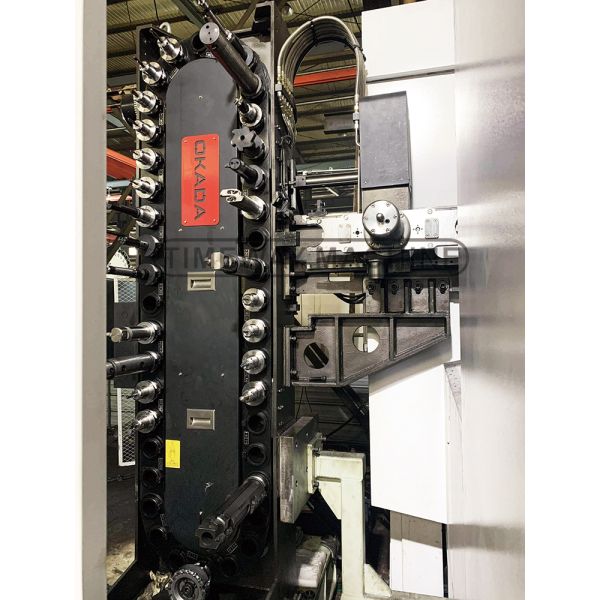

>> Choose Taiwan BT50 chain-type tool magazine (40tools ATC), with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC horizontal machining center.
>> Japan FANUC CNC system comes standard.
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
24 Tool Magazine Capacity High Precision Four-axis CNC Horizontal Machining Center
========================
>> Chain-type chip conveyor comes optional.
