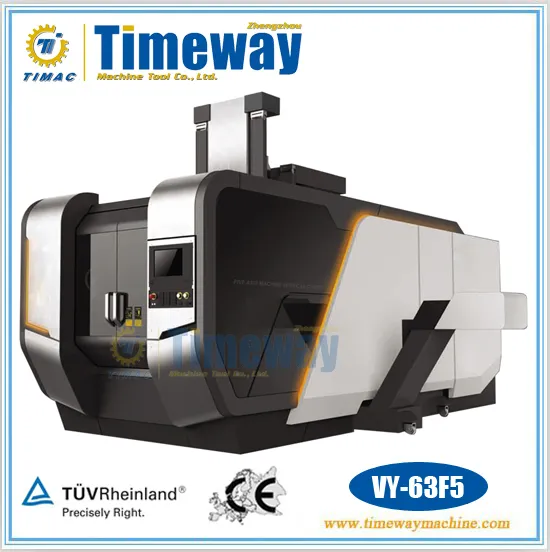

precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm

Condition : New

No. of Spindles : Single

Type : VERTICAL

Dimension(L*W*H) : TALK MORE

Weight (T) : 0 T

Table Size (mm) : Other

CNC Control System : GSK, FANUC, Siemens

Number of Axes : 5

Table Travel (X) (mm) : 1000

Table Travel (Y) (mm) : 1400

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : ±0.006

Repeatability (X/Y/Z) (mm) : ±0.003

Range of Spindle Speed(r.p.m) : 0 - 18000 r.p.m

Spindle Motor Power(kW) : 34

Max. Table Load(kg) : 800 kg

Min. Time of Tool Change(s) : 2

Tool Magazine Capacity : 40

Key Selling Points : Long Service Life

Warranty : one year

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Voltage : Customized

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

color : customized

number of axis : 5

Table size : 660*660mm

X-axis travel : 1000mm

Y-axis travel : 1400mm

Product name : 5-axis cnc milling machine

product type : 5-axis vertical machining center

Weight : As actual situation

Certification : CE, ISO9001

Power : 34Kw

Showroom Location : France, Germany, Viet Nam, Mexico, UAE, Colombia, Algeria, Romania, Ukraine

Core Components : Engine

Applicable Industries : Machinery Repair Shops, Other

Packaging Details : Wooden box

Port : China Port

Supply Ability : 100 Set/Sets per Year

Price : $167,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
VY Series Vertical 5-Axis Machining Center

Summary：

Being developed by the European technology jointly,MC-VYseries Vertical 5-axis Machining Center possesses the srtong processing ability of complicated parts and the axcellent handing .It is in accordance with the technical standards and ergonomics principles of Europe ,One time of loading and clamping can realize the precision processing of complicated and irregular parts.It is particularly applicable for industries of aviation,medicine,mold,automobile and electricity.
precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Specification
Specifications
Units
VY-80F5
VY-63F5
VY-50F5
Travel
X-axis travel
mm
1000
800
600
Y-axis travel
mm
1400
1200
800
Z-axis travel
mm
600
600
400
A-axis travel
deg.
±135°
±135°
±135°
C-axis travel
deg.
Continuous 360
Continuous 360
Continuous 360
Table
Table dimension
mm
Φ800
Φ660
Φ500
T-slot
(Dimension*Distance*Quantity)
mm
18*6*125
18*5*125
18*4*100
Max.load
kg
1200
800
500
Spindle
Spindle type
HSK-A63
HSK-A63
HSK-A63
Spindle speed
rpm
18000
18000
18000
Main motor power
kw
34
34
34
Precision
Location precision X/Y/Z
mm
0.008
0.006
0.005
Repeated location precision X/Y/Z
mm
0.005
0.003
0.002
A/C
″
±5
±5
±5
Positive Comments From Customers
precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Factory Display：
precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
precision VY-63F5 CNC Vertical Five-axis Linkage Machining Center Table Travel X 1000mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
