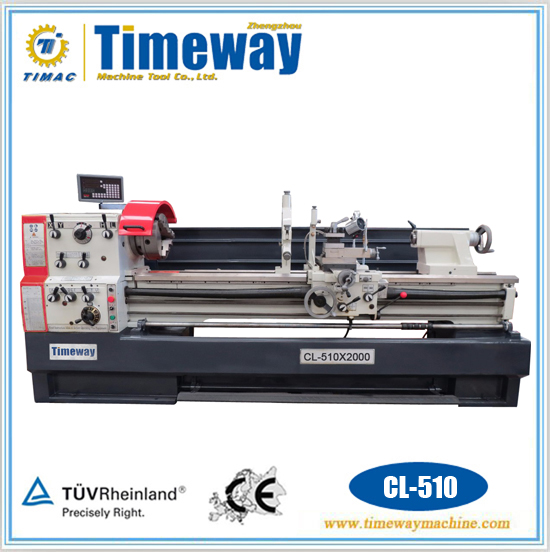

Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs

Max. Length of Workpiece (mm) : 3000

Range of Spindle Speed(r.p.m) : 25 - 2000 r.p.m

Machining Capacity : Medium Duty

Type : Horizontal

Spindle Motor Power(kW) : 7.5

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : CL-510

Weight (KG) : 2070 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : Hot Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. swing over bed : 510mm

Max. swing over cross slide : 305mm

Gap length : 170mm

Machine Type : Gab Bed Lathe

Cross slide travel : 316mm

CNC or Not : Nomal

Color : Customrized

Name : Gap-bed Lathe

Precision : High Precision High Accuracy

Processing Types : Metal Processing Machine

Condition : New

Spindle Bore(mm) : 80

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops, Farms, Construction works , Energy & Mining

Showroom Location : Canada, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, Algeria, Bangladesh, South Africa, Nigeria, Japan, Malaysia, Australia

Core Components : Motor, Engine

Max. Turned Length (mm) : 3000 mm

Year : 2024

Price : $31,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping
You can click on the picture to view the products you are interested in
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Product Description
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs

STANDARD ACCESSORIES:

3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual(English)

OPTIONAL ACCESSORIES:

Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION
UNIT
CL-510
Max. swing over bed
mm
510
Max. swing over cross slide
mm
305
Max. swing over gap
mm
735
Distance between centers
mm
1000/1500/ 2000/3000
Gap length
mm
170
Bed width
mm
350
Spindle nose
-
D1-8
Spindle bore
mm
80
Spindle taper
-
MT7
Spindle speed range (steps)
rpm
25-2000 (12)
Top slide travel
mm
130
Cross slide travel
mm
316
Tool section size
mm
25x25
Leadscrew
-
40x4T.P.I or pitch 6mm
Longitudinal feed range
mm/rev
0.059-1.646 (32)
Cross feed range
mm/rev
0.02-0.573 (42)
Metric threads range (kinds)
mm
0.2-14 (47)
Inch threads range (kinds)
TPI
2-112 (60)
Diametrical threads range (kinds)
DP
4-112 (50)
Module threads range (kinds)
MP
0.1-7 (34)
Tailstock quill diameter
mm
Φ75
Tailstock quill travel
mm
180
Tailstock quill taper
-
MT5
Main motor power
kw
7.5
Coolant pump motor power
kw
0.1
Machine dimensions (LxWxH)
mm
239/284/334/434x115x143
Packing size (LxWxH)
mm
245/290/340/440x119x174
Net weight
kg
2070/2160/2435/2805
Gross weight
kg
2460/2550/2840/3270
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Factory Display：
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
