Type :
VERTICAL
Max. Length of Workpiece (mm) :
1000
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
5000
Width of bed (mm) :
1010 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
820 mm
Travel (Z Axis)(mm) :
650 mm
Positioning Accuracy (mm) :
±0.02
Repeatability (X/Y/Z) (mm) :
±0.01
Place of Origin :
China
Dimension(L*W*H) :
4780x2570x4400 mm
Brand Name :
TIMEWAY
Model Number :
VLK1250E
Voltage :
380V/400V/440V
CNC Control System :
SIEMENS
Tool Post Stations :
4
Weight (KG) :
11000
Warranty :
1 Year
Key Selling Points :
Flexible Manufacturing
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Max. cutting diameter :
1250mm
Max. height of workpiece :
1000mm
Max. weight of workpiece :
5000kg

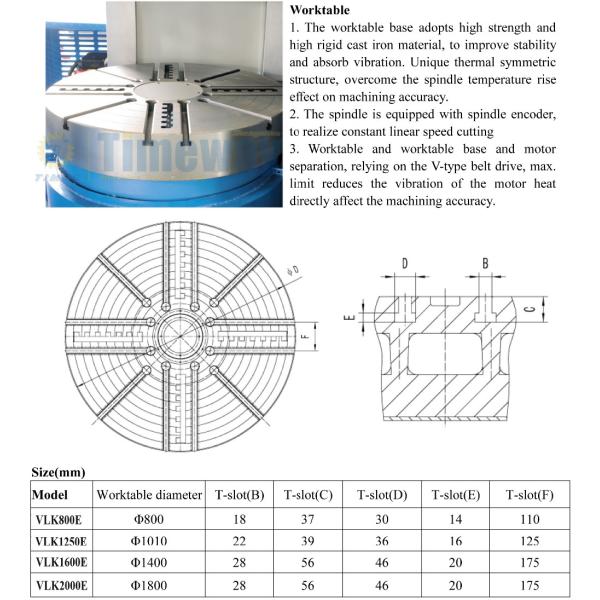

Worktable diameter :
1010mm
Spindle speed :
1.25-200rpm
Power capacity :
30Kva
CNC system :
SIEMENS 808D
Max. Swing Diameter (mm) :
1250
Warranty period :
1year
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops
Showroom Location :
United States, Italy, Germany, Mexico, Russia, Romania, South Africa, Australia
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox
Max. Turned Length (mm) :
1000
Max. Spindle Speed (r.p.m) :
200 r.p.m
Spindle Bore(mm) :
251
Packaging Details :
Pallet
Port :
China Port
Supply Ability :
300 Set/Sets per Year
Price :
$110,000.00/sets 1-2 sets
MOQ :
1 set
