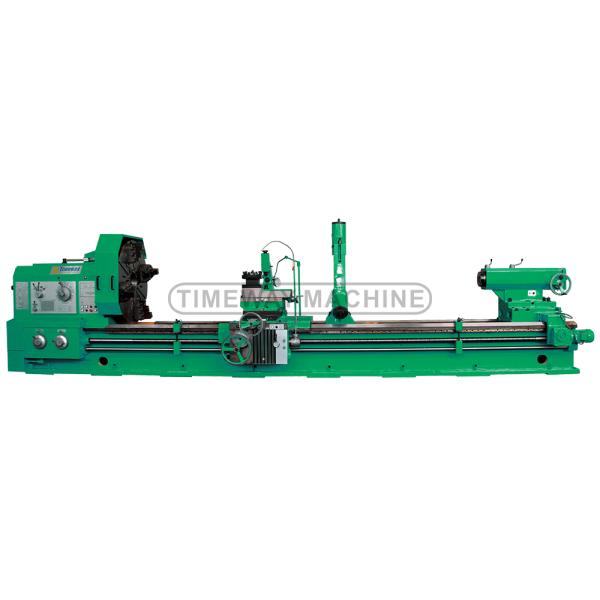

5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting

Name: 5000mm Distance between Centers Manual Lathe for Universal Horizontal ScrewCutting
Brand: Timeway/TIMAC
Price: 71 USD

Quality 5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting for sale

Max. Length of Workpiece (mm) : 5000

Range of Spindle Speed(r.p.m) : 3.15 - 315 r.p.m

Machining Capacity : Heavy Duty

Type : Horizontal

Spindle Motor Power(kW) : 22

Place of Origin : Henan, China

Brand Name : Timeway/TIMAC

Model Number : AL-1600C/5000

Dimension(L*W*H) : 8020*1995*2525

Weight (KG) : 10000 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Hot Product 2022

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Heavy Duty Horizontal Lathe

Model : AL-1600C/5000

CNC or Not : Nomal

Color : Customers' Request

Max.swing over bed : 1600mm

Max. swing over cross bed : 1210mm

Distance between centers : 5000mm

Max.turning length : 4800mm

Bed width : 970mm

Spindle bore : 130mm

Condition : New

Spindle Bore(mm) : 130

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining

Showroom Location : Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Colombia, Algeria, Romania, Bangladesh, South Africa, Ukraine, Nigeria

Max. Turned Length (mm) : 4800 mm

Core Components : Bearing, Pump, Gear, Motor, Gearbox, Engine, Other

Packaging Details : Wooden cases(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $71,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Heavy Duty Horizontal Lathe

Model: AL-1250C, AL-1400C, AL-1600C, AL-1800C

5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting

Features:

- This series heavy duty lathes adopt 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
- The main spindle is of precision roller bearing 3-point supporting structure.
- Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
- The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces,and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
- Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
- Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.

Detailed Images

Headstock & Chuck

⇒ The horizontal lathes gain wide-range spindle speed of 3.15-315 rpm with 33 speeds.
⇒ The heavy duty lathes are equipped with 4-jaw heavy lathe chuck, strong clamping force.

Closed-type Steady Rest

⇒ The steady rest adopts three-point supporting structure, positioning accuracy is higher.

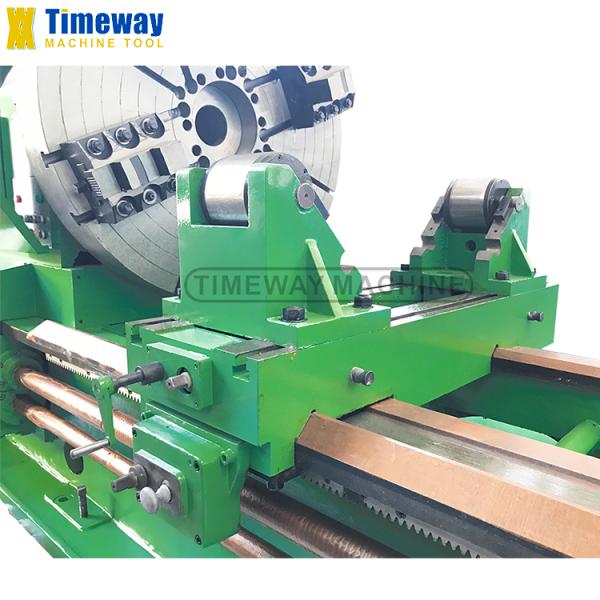

Open-type Steady Rest

⇒ Roller support (open-type steady rest) is standard configuration, make sure cutting bigger parts.
⇒ The roller support move right and left on the rails of lathes through gear and rack, reduce labor intensity.

Motorized Tailstock

⇒ Horizontal lathes are equipped with motorized tailstock, movement simple and easy.
⇒ The sleeve of tailstock can rough feed and fine feed.

Specification

Specification	Unit	AL-1250C	AL-1400C	AL-1600C	AL-1800C
Max.swing over bed	mm	1250	1400	1600	1800
Max. swing over cross bed	mm	865	1010	1210	1410
Distance between centers	mm	3000/4000/5000/6000/8000/10000/12000/
Max.turning length	mm	2800/3800/4800/5800/7800/9800/11800
Bed width	mm	970	970	970	970
Max.cutting force	N	45000	45000	45000	45000
Loading capacity	kg	10000	10000	10000	10000
Spindle nose	-	A2-15	A2-15	A2-15	A2-15
Spindle bore	mm	130	130	130	130
Spindle taper	-	Metric 140	Metric 140	Metric 140	Metric 140
Spindle speed range	rpm	Forward:3.15-315,Reverse:3.5-291
Spindle speed step	steps	Forward:21,Reverse:12				56	56	56
X/Z-axis feed kinds	kinds	56	56	56	56
Feed range	mm/r	longitudinal:0.1-12, cross:0.05-6, top tool-post：0.025-3
Metric threads range(kinds)	mm	1-120(44)	1-120(44)	1-120(44)	1-120(44)
Inch threads range(kinds)	TPI	28-1/4(31)	28-1/4(31)	28-1/4(31)	28-1/4(31)
Module threads range(kinds)	MP	0.5-60(45)	0.5-60(45)	0.5-60(45)	0.5-60(45)
Diametrical threads range(kinds)	DP	1/2-56(38)	1/2-56(38)	1/2-56(38)	1/2-56(38)
Cross slide travel	mm	650	650	650	650
Top slide travel	mm	300	300	300	V4
Main motor power	kw	22	22	22	30
Machine length	mm	6020/7020/8020/9020/11020/13020/15020
Machine width	mm	1995	1995	1995	2665
Machine height	mm	2175	2325	2525	2680

Accessories

STANDARD ACCESSORIES

4-jaw heavy independent chuck,

Steady rest (over 3M length),
Follow rest,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).

OPTIONAL ACCESSORIES

2 or 3-axis DRO,

Chuck guard,
Tool-post guard,
Rear splash guard,
Electric moving tailstock,
Grinding attachment.
