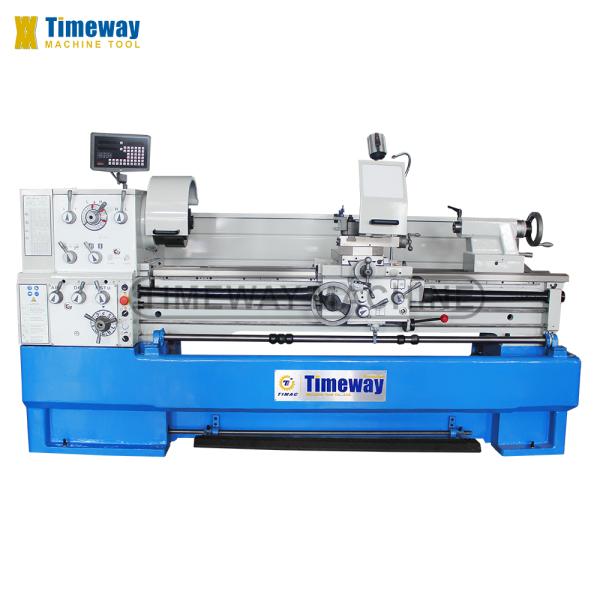

Nomal CNC Gap Bed Horizontal Lathe Machine CL-460 Boost Your Business with Efficiency

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 25 - 2000 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 300mm

Type : Horizontal

Spindle Motor Power(kW) : 5.5

Place of Origin : China

Model Number : CL-460

Dimension(L*W*H) : 275x108x137

Weight (KG) : 1810 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Gab Bed Lathe

Keyword : Universal Metal Lathe

Function : Machining Metal

Precision : High Precision High Accuracy

Processing : Metal Workpiece

CNC or Not : Nomal

Application : Material Processing

Spindle taper : MT6

Swing over bed : 460

certification : CE

Condition : New

Spindle Bore(mm) : 58

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia

Core Components : Other

Max. Turned Length (mm) : 1500 mm

Price : $25,666.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Nomal CNC Gap Bed Horizontal Lathe Machine CL-460 Boost Your Business with Efficiency

Specification

SPECIFICATION	UNIT	CL-460
Max. swing over bed	mm	460
Max. swing over cross slide	mm	270
Max. swing over gap	mm	690
Distance between centers	mm	1000/1500/ 2000
Gap length	mm	165
Bed width	mm	300
Spindle nose	-	D1-6
Spindle bore	mm	58
Spindle taper	-	MT6
Spindle speed range (steps)	rpm	25-2000 (12)
Top slide travel	mm	128
Cross slide travel	mm	285
Tool section size	mm	25x25
Leadscrew	-	40x4T.P.I or pitch 6mm
Longitudinal feed range	mm/rev	0.031-1.7 (42)
Cross feed range	mm/rev	0.014-0.784 (42)
Metric threads range (kinds)	mm	0.1-14 (41)
Inch threads range (kinds)	TPI	2-112 (60)
Diametrical threads range (kinds)	DP	4-112 (50)
Module threads range (kinds)	MP	0.1-7 (34)
Tailstock quill diameter	mm	60
Tailstock quill travel	mm	130
Tailstock quill taper	-	MT4
Main motor power	kw	5.5
Coolant pump power	kw	0.1
Machine dimensions (LxWxH)	cm	220/275/325x108x137
Packing size (LxWxH)	cm	225/280/330x112x162
Net weight	kg	1645/1810/1965
Gross weight	kg	1910/2115/2295

STANDARD ACCESSORIES:

3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box & tools
Operation manual.

TOPTIONAL
ACCESSORIES:

Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
