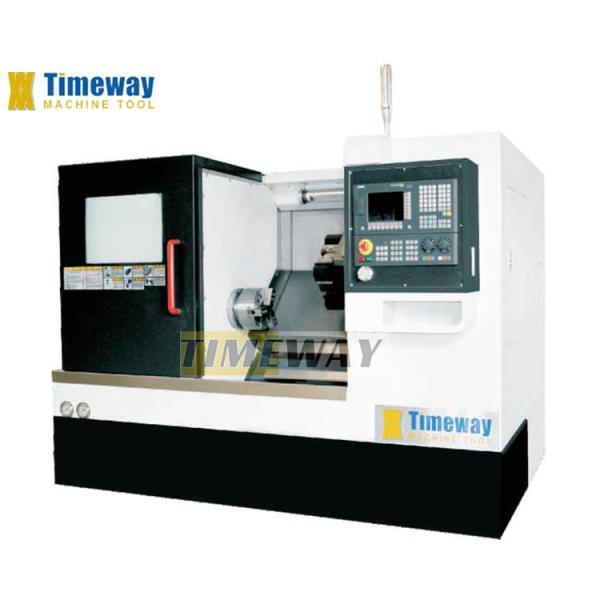

56mm Spindle Bore High Precision CNC Lathe Machine for Industry Production Efficiency

Name: 56mm Spindle Bore High Precision CNC Lathe Machine for Industry Production Efficiency
Brand: TIMAC
Price: 60 USD

Quality 56mm Spindle Bore High Precision CNC Lathe Machine for Industry Production Efficiency for sale

Type : Slant Bed Lathe

Max. Length of Workpiece (mm) : 420 mm

Machining Capacity : Medium Duty

Width of bed (mm) : 50 mm

Spindle Motor Power(kW) : 7.5 kw

No. of Spindles : Single

Number of Axes : 3

Travel (X Axis)(mm) : 210 mm

Travel (Z Axis)(mm) : 450 mm

Place of Origin : China

Dimension(L*W*H) : 2600x1800x1600 mm

Brand Name : TIMAC

Model Number : CK-32

Voltage : 220V/380V

CNC Control System : Fanuc/Siemens/GSK

Tool Post Stations : 4

Weight (KG) : 2700

Warranty : 1 Year

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Slant Bed CNC Lathe

Keyword : CNC Lathe

CNC or Not : CNC

Model : CK-32

Max. swing over bed : 420 mm

Max. turning diameter : 320 mm

Max. turning length : 350 mm

Spindle bore : 56 mm

Machine dimensions (L*W*H) : 2600*1800*1600 mm

Machine weight : 2700 kg

Condition : New

Showroom Location : Egypt, Canada, Turkey, Germany, Viet Nam, Peru, Indonesia, Russia, Colombia, South Africa, Kazakhstan, Uzbekistan

Marketing Type : New Product 2020

Max. Spindle Speed (r.p.m) : 3500 r.p.m

Spindle Bore(mm) : 56 mm

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Core Components : Bearing, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $60,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Products Description

56mm Spindle Bore High Precision CNC Lathe Machine for Industry Production Efficiency

Specification	Unit	CK-32	CK-36	CK-45
Max. swing over bed	mm	420	550	500
Max. swing over cross slide	mm	220	220	220
Standard turning diameter	mm	210	210	210
Max. turning diameter	mm	320	360	360
Max. turning length	mm	350	500	750
Spindle speed	rpm	3500	3000	2500
Spindle nose	-	A2-5	A2-6	A2-6
Spindle bore	mm	56	62	66
Hydraulic chuck size	mm	160	200	200
Cross travel (X)	mm	210	230	220
Longitudinal travel (Z)	mm	450	600	850
X/Z-axis rapid feed speed	m/min	12/20	24/24	20/20
Hydraulic cool post type	-	80-8T	80-8T	80-8T
Tool section size	mm	25x25/Φ32	25x25/Φ32	25x25/Φ32
Tailstock quill diameter	mm	52	110	110
Tailstock quill travel	mm	60	100	100
Tailstock quill taper	-	MT4	MT5	MT4
Bed structure	-	45° Integral bed	45° Integral bed	45° Integral bed
Guideway type	-	Linear/Sliding	Linear/Sliding	Linear/Sliding
Main motor power	kw	7.5	11	7.5
Power supply	kva	30	25	30
Machine dimensions (LxWxH)	mm	2600x1800x1600	2900x1800x1750	2900x1800x1600
Machine weight	kg	2700	3200	3200

· FANUC CNC system,

· 8-station hydraulic tool post,

· Hydraulic chuck,

· Electronic handwheel,

· Lubrication system,

· Cooling system,

· Work lamp,

· Pilot lamp,

· Full protection guard,

· Heat exchanger,

· Leveling blocks & bolts,

· Tools & tool-box,

· Operation manuals.

· GSK, SIEMENS CNC system,

· Air conditioner,

· Hydraulic hollow chuck,

· Tool setter,

· Bar feeder,

· Hydraulic tailstock,

· Chain type chip conveyor.

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
