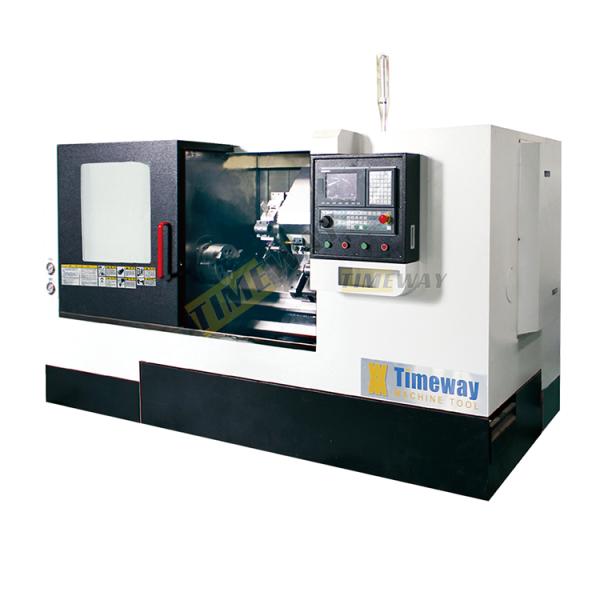

Type :
Slant Bed Lathe
Max. Length of Workpiece (mm) :
enquiry us
Machining Capacity :
Medium Duty
Max. Weight of Workpiece(kg) :
enquiry us
Width of bed (mm) :
200 mm
Spindle Motor Power(kW) :
22
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
400 mm
Travel (Z Axis)(mm) :
3200 mm
Positioning Accuracy (mm) :
enquiry us
Repeatability (X/Y/Z) (mm) :
enquiry us
Place of Origin :
Henan, China
Dimension(L*W*H) :
5900*2200*2200
Brand Name :
Timeway
Model Number :
CK-80
Voltage :
220V/380V,50HZ
CNC Control System :
Fanuc/Siemens/GSK
Tool Post Stations :
8
Weight (KG) :
7800
Warranty :
1 Year
Key Selling Points :
Long Service Life
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Slant Bed CNC Lathe
Product name :
CNC Lathe Mechine
Name :
High Precision CNC Lathe Machine
Keyword :
Cnc Lathe Machine
Precision :
High Precision Machine
Model :
CK-80
Application :
Material Processing
Color :
Customer Optional
Max.swing over bed :
800mm
Condition :
New
Toolpost Brand :
enquiry us
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works
Showroom Location :
Egypt, Viet Nam, Russia
Marketing Type :
Hot Product 2019
Year :
least date
Max. Spindle Speed (r.p.m) :
1500 r.p.m
Spindle Bore(mm) :
112
Max. Turned Length (mm) :
3000
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, enquiry us
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$69,000.00/sets 1-2 sets
MOQ :
1 set
