Medium Duty Machining Capacity CNC Slant-type Lathe Machine with A2-5 Spindle Nose

Name: Medium Duty Machining Capacity CNC Slanttype Lathe Machine with A25 Spindle Nose
Brand: TIMAC
Price: 36 USD

Quality Medium Duty Machining Capacity CNC Slant-type Lathe Machine with A2-5 Spindle Nose for sale

Max. Length of Workpiece (mm) : 320

Range of Spindle Speed(r.p.m) : 50 - 3500 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 420

Type : VERTICAL

Spindle Motor Power(kW) : 7.5

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : CK4035

Voltage : 220/380v

Dimension(L*W*H) : 2600x1800x1600mm

Weight (KG) : 2700 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. swing over cross slide : 220mm

Standard turning diameter : 210mm

Spindle nose : A2-5

Hydraulic chuck size : 160mm

Cross travel (X) : 210mm

Longitudinal travel (Z) : 450mm

X/Z-axis rapid feed speed : 20/12 m/min

After-sales Service Provided : Online support

Tailstock quill travel : 50mm

Tailstock quill taper : MT4

Condition : New

Spindle Bore(mm) : 56

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia

Core Components : Motor, Engine

Max. Turned Length (mm) : 320 mm

Packaging Details : Wooden case, can be fumigated

Port : China port

Supply Ability : 500 Set/Sets per Month

Price : $36,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Medium Duty Machining Capacity CNC Slant-type Lathe Machine with A2-5 Spindle Nose

Specifications	Unit	CK4035	CK3650	CK4575
Max. swing over bed	mm	420	550	500
Max. swing over cross slide	mm	220	220	220
Standard turning diameter	mm	210	210	210
Max. turning diameter	mm	320	360	360
Max. turning length	mm	320	500	750
Spindle speed	rpm	50-3500	50-3000	2500
Spindle nose	-	A2-5	A2-6	A2-6
Spindle bore	mm	56	62	66
Hydraulic chuck size	mm	160	200	200
Cross travel (X)	mm	210	230	220
Longitudinal travel (Z)	mm	450	600	850
X/Z-axis rapid feed speed	m/min	20/12	24/24	20/20
Hydraulic cool post type	-	80-8T	80-8T	80-8T
Tool section size	mm	25x25/Φ32	25x25/Φ32	25x25/Φ32
Tailstock quill diameter	mm	52	110	110
Tailstock quill travel	mm	50	100	100
Tailstock quill taper	-	MT4	MT5	MT4
Bed structure	-	45° Integral bed	45° Integral bed	45° Integral bed
Guideway type	-	Linear/Sliding	Linear/Sliding	Linear/Sliding
Main motor power	kw	7.5	11	7.5
Power supply	kva	30	25	30
Machine dimensions (LxWxH)	mm	2600x1800x1600	2900x1800x1750	2900x1800x1600
Machine weight	kg	2700	3200	3200

Standard accessories:

GSK 980TDI,

8-station hydraulic tool post,

Hydraulic chuck,

Electronic handwheel,

Lubrication system,

Cooling system,

Work lamp,
Protection guard,

Leveling blocks & bolts,

Tools & tool-box,

Operation manuals.

Optional accessories:

FANUC CNC system,

SIEMENS CNC system,

Pilot lamp,

Air conditioner,

Heat exchanger,

8-station servo tool post,

Hydraulic hollow chuck,

Special fixture,

Tool setter,

Bar feeder,

Hydraulic tailstock,

Chain type chip conveyor.

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

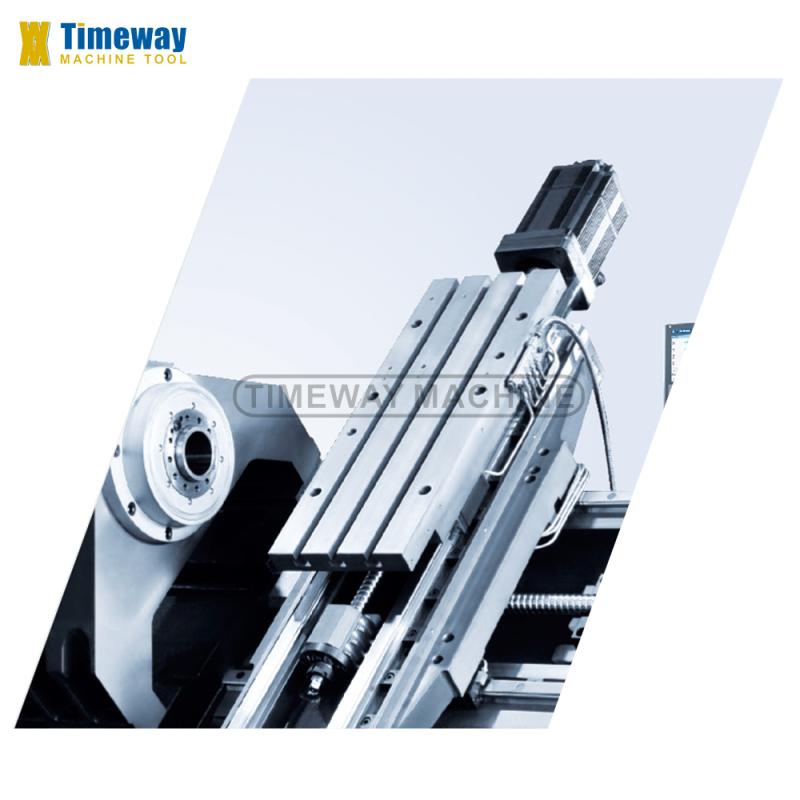

Medium Duty Machining Capacity CNC Slant-type Lathe Machine with A2-5 Spindle Nose Images
