Max. Length of Workpiece (mm) :
8000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
970
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
Henan, China
Brand Name :
Timac, TIMEWAY
Model Number :
AL-1800Cx8000
Voltage :
As customer's request
Dimension(L*W*H) :
11020x2665x2680 mm
Weight (KG) :
21500 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Lathe color :
Optional
Max. weight of workpiece :
10tons or 12tons
Lathe function :
Cutting large parts
Max. machining diameter of workpiece :
1800mm
Max. machining diameter between centers :
1410mm
Machining force :
45000N
Longitudinal stroke :
8000mm
Cross stroke :
800mm
Top turret stroke :
300mm
Tailstock quill diameter :
220mm
After-sales Service Provided :
Online support, Video technical support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Canada, United Kingdom, United States, France, Germany, Brazil, Indonesia, Mexico, Russia, Australia, Romania, South Africa
Certification :
ISO9001, CE
Condition :
New
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Food Shop, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, France, Germany, Brazil, Indonesia, Russia, Romania, South Africa
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel
Max. Turned Length (mm) :
7800 mm
Spindle Bore(mm) :
130 m'm
Year :
2021

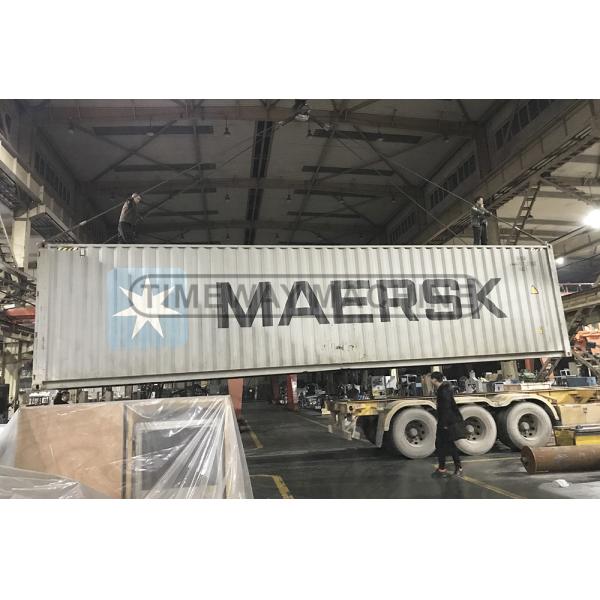

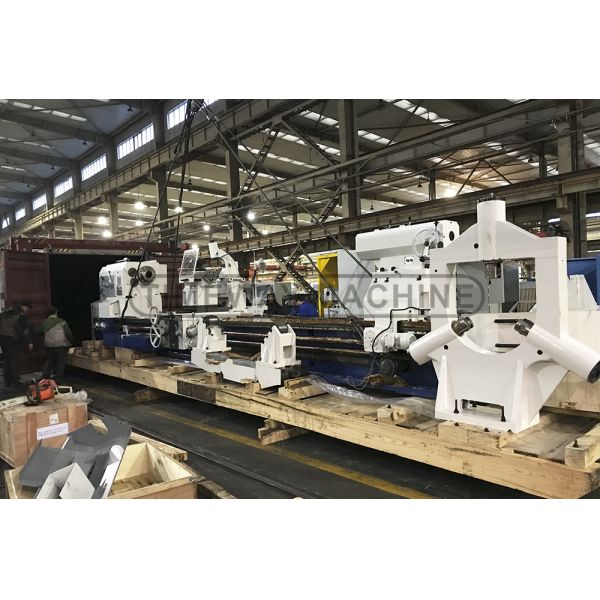

Packaging Details :
Wooden cases (fumigated)
Port :
Tianjin or Shanghai Port
Supply Ability :
100 Set/Sets per Month
Price :
$150,000.00/sets 1-2 sets
MOQ :
1 set
