High Precision Heavy Duty Semi-Automatic Tornos For Machinery Turning Working Accuracy IT6

Name: High Precision Heavy Duty SemiAutomatic Tornos For Machinery Turning Working Accuracy IT6
Brand: TIMAC
Price: 60 USD

Quality High Precision Heavy Duty Semi-Automatic Tornos For Machinery Turning Working Accuracy IT6 for sale

Max. Length of Workpiece (mm) : 5000

Range of Spindle Speed(r.p.m) : 3.15 - 315 r.p.m

Machining Capacity : Heavy Duty

Width of bed (mm) : 755

Type : Horizontal

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : AL-1250Bx5M

Voltage : 220V~460V

Dimension(L*W*H) : 8100x2150x1825 mm

Weight (KG) : 14000 KG

Warranty : 1 Year

Key Selling Points : High Rigidity

Marketing Type : Hot Product 2021

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. Weight of Workpiece(kg) : 6000

Spindle Taper : Metric 140

Cutting torque : 0 N.m

Rapid Feed Speed(mm/min) : 0 - 3740 mm/min

Feed Speed(mm/min) : 0 - 1870 mm/min

Tool Post Stations : 8, 4, 6, 12

Working accuracy : IT6

Surface roughness : Ra1.6um

Gap of connection surfaces : Less than 0.04mm

Tornos level : Less than 0.04/1000mm

Max. swing over bed : 1250mm

Max. swing over cross slide : 865mm

Load bearing : 6000kg

Longitudinal rapid feed speed : 3740mm/min

Cross rapid feed speed : 1870mm/min

Top tool-post rapid feed speed : 935mm/min

Price : $60,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

High Precision Heavy Duty Semi-Automatic Tornos For Machinery Turning Working Accuracy IT6

Introduction:
We, " Timeway Machine " offer wide range series of heavy duty tornos, starting from 150mm up to 1000mm Centre Height, and distance between centres from 750mm up to 6000mm.
For the heavy duty type tornos, there is a delelopment of distance between centres from 8000mm up to 18000mm, Max. weight of weight from 3 tons up to 32 tons, and width of bed ( 600mm, 755mm, 1100mm, 1600mm)increase accordingly along theswing and weight of machine to ensure the stronger stability and longer service life.

Features:
High precision tornos
1. Bed with high rigidity Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway, TSF coated carriage to minimize the possibility of low speed stick-slip.
2. Main spindle with high rigidity and high accuracy Spindle comes with bearing of famous brand, spindle-box

Specification

Unit

AL-1000B

AL-1250B

AL-1400B

AL-1600B

*Capacity

Centre height

500

625

700

820

Swing over bed

1000

1250

1400

1640

Swing over carriage

615

865

1015

1250

Maximum length of workpiece

1500/3000/5000/6000/8000/10000

/12000/14000/16000/18000

Maximum turning length

1300/2800/4800/5800/7800/9800

/11800/13800/15800/17800

Max.weight of workpiece

ton

6 ( optional 8 tons)

Width of guide way

755

*Spindle

Spindle nose

A2-15(8XM22)

Spindle bore

130

Taper hole of spindle

1:20/140

Number of forward turning speeds

Number of reverse turning speeds

spindle speeds(forward)

r/min

3.15-315

spindle speeds(reverse)

r/min

3.5-291

*Feed

Number of feeds per revolutio

56/56

(longitudinal/transverse)

Feed per revolution(Longitudinal)

0.1-12(0.004"-0.473")

Feed per revolution(Transverse)

0.05-6(0.002"-0.236")

Feed per revolution(Upper tool-post)

0.025-3(0.001"-0.118")

*Threads

Number and range of metric thread

44;1-120mm

Number and range of inch thread

T.P.I

31;28-1/4

Number and range of module thread

45:0.5-60mm

Number and range of diametrical

D.P

38:1/2-56DP

pitch thread

*Carriage

Distance between spindle center

line and tool resting plane

Section of tool shank

Tool post swing range

±90°

Maximum travel of carrige

1450/2950/4950/5950/7950/9950

/11950/13950/15950/17950

Maximum travel of top slide

300

Maximum travel of cross slide

520(20")

580(22")

580

630(24")

Tool post travel per turn of the

0.05(0.002")

dials of top or cross slide

Rapid travel speed(longitudinal)

mm/min

3740

Rapid travel speed(Transverse)

mm/min

1870

Rapid travel speed(Top slide)

mm/min

935

*Tailstock

Diameter of tailstock quill

160(6")

Travel of tailstock quill

300(12")

Taper hole of tailstock quill

Morse 6

*Motor

Main motor power

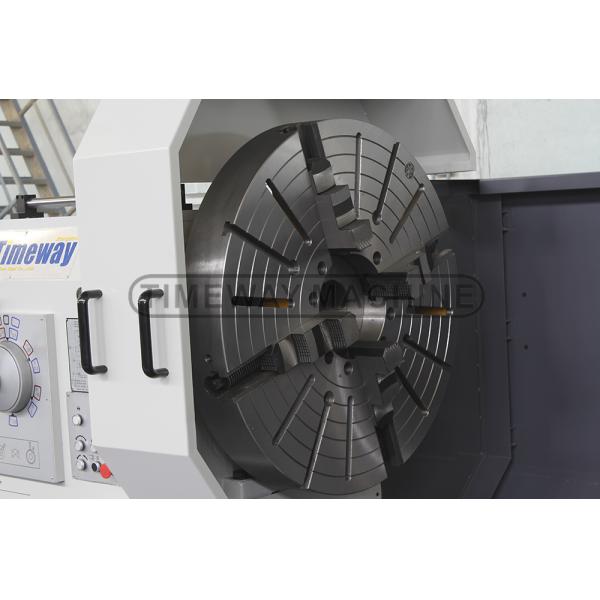

· 4-jaw independent chuck
· Steady rest (over 3M length)
· Follow rest (over 3M length)
· Manual moving tailstock
· Dead center of tailstock
· 4-station tool post
· Cooling system
· Work lamp
· Tools & tool-box
· Leveling wedge and bolts
· Operation manual (English)

· Face plate
· 2 or 3-axis digital indicator
· Electrical moving tailstock
· Chuck guard
· Tool-post guard
· Rear splash guard
· Quick changing tool post
· Grinding attachment

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

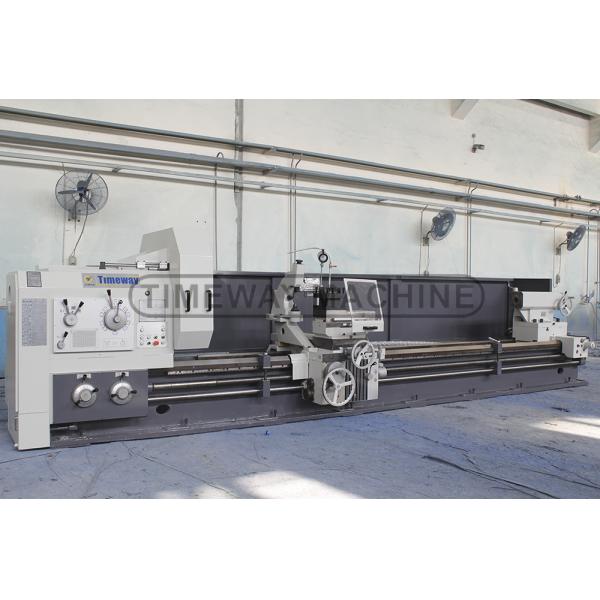

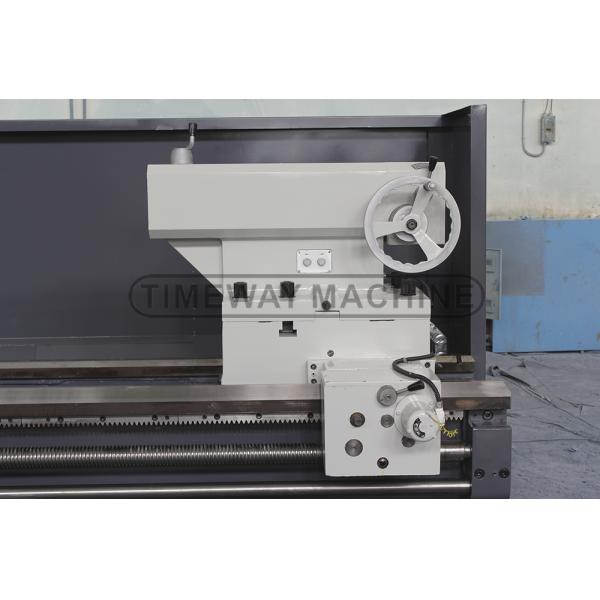

High Precision Heavy Duty Semi-Automatic Tornos For Machinery Turning Working Accuracy IT6 Images
