Light Processing Capacity Precision Manual Lathe for Multi-Functional Turning 1.5 KW

Name: Light Processing Capacity Precision Manual Lathe for MultiFunctional Turning 15 KW
Brand: TIMAC, TIMEWAY
Price: 10 USD

Quality Light Processing Capacity Precision Manual Lathe for Multi-Functional Turning 1.5 KW for sale

Max. Length of Workpiece (mm) : 910

Range of Spindle Speed(r.p.m) : 65 - 1400 r.p.m

Machining Capacity : Light Duty

Width of bed (mm) : 430

Type : Horizontal

Spindle Motor Power(kW) : 1.5

Place of Origin : Henan, China

Brand Name : TIMAC, TIMEWAY

Model Number : T-1236A

Voltage : As request

Dimension(L*W*H) : 1680x750x1420 mm

Weight (KG) : 620 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Automatic Grade : Manual

CNC or Not : Normal

Machine tool : Engine lathe with milling machine

Max. Swing Diameter : 300 mm

Weight : as model

Power : 1.5 KW

Spindle bore : 38 mm

Processing capacity : Light

Max. workpiece length : 910 mm

Condition : New

Spindle Bore(mm) : 38

Showroom Location : Canada, Turkey, Italy, Brazil, Kenya, UAE, Romania, Uzbekistan, Malaysia

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Core Components : Bearing, Pump, Gear, Motor, Gearbox, Engine, Other

Max. Turned Length (mm) : 910 mm

Year : 2022

Packaging Details : In plywood cases.

Port : China port

Supply Ability : 300 Set/Sets per Month

Price : $10,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Light Processing Capacity Precision Manual Lathe for Multi-Functional Turning 1.5 KW

* Widely used in general machinery manufacturing, production, single - piece manufacturing and other fields.
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.
* Adjustable tailstock with fine scale for taper turning

Specification	T-1236A
Swing over bed	300 mm
Swing over cross slide	180 mm
Max.swing over gap	430 mm
Distance between centers	910 mm
Spindle bore	38 mm
Taper of spindle bore	MT5
Range of spindle speed	65-1400 rpm
Range of longitudinal feeds	0.017-1.291 mm/rev
Range of cross feeds	0.017-0.276 mm/rev
Range of metric threads	0.4-7 mm
Range of inch threads	4-60 T.P.I.
Max.travel of tailstock quill	100 mm
Taper of tailstock bore	MT3
Motor power	1.1/1.5kw
Packing size(LxWxH)	1850x750x1400 cm
Net weight	540kg/620kg

· 3 jaw chuck

· 4 jaw chuck

· Dead center

· Face plate

· Steady rest

· Follow rest

· Reduction sleeve

· Oil gun

· Coolant system

· Working light

· Chasing dial indicator

· Quick change tool post
· 2/3 axis DRO

· Living center

· Taper turning attachment

· Chuck guard

· Leadscrew guard

· Tool post guard

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

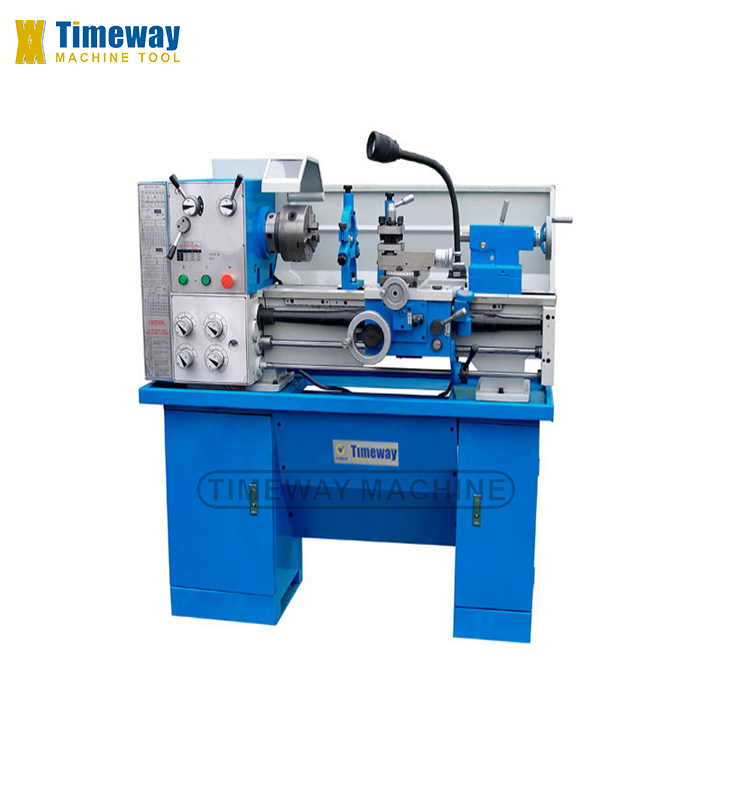

Light Processing Capacity Precision Manual Lathe for Multi-Functional Turning 1.5 KW Images
