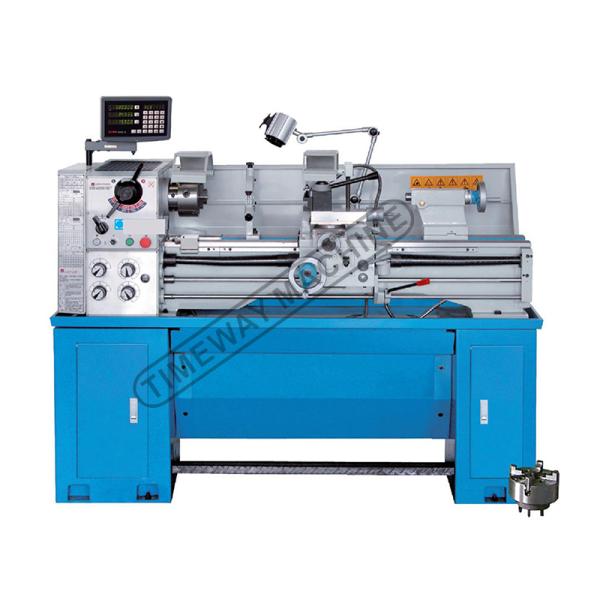

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing

Name: 460mm Max Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing
Brand: TIMAC
Price: 6 USD

Quality 460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing for sale

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 25 - 2000 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 300

Type : Horizontal

Spindle Motor Power(kW) : 4

Place of Origin : China

Brand Name : TIMAC

Model Number : T-1640,T-1660,,T-1840,T-1860

Voltage : 220/380V

Dimension(L*W*H) : 800x1120x1700mm

Weight (KG) : 2020 KG

Warranty : 1 Year, 1 year

Key Selling Points : High-accuracy

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : Normal

Automatic Grade : Manual

After-sales Service Provided : Online support

High precision industrial lathe : High precision industrial lathe

Max. Swing Diameter : 460mm

Power : 4/5.5kw

Distance between centers : 1500mm

Max. swing over bed : 400mm

Spindle Bore : 58mm

Condition : New

Spindle Bore(mm) : 58

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location : France, Indonesia, Russia, South Africa, Malaysia, Australia

Core Components : Bearing, Gear, Motor, Gearbox, Other

Max. Turned Length (mm) : 1500 mm

Packaging Details : Wooden case(can be fumigated)

Port : China port

Supply Ability : 500 Set/Sets per Month

Price : $6,900.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High precision industrial lathe

Features:

1. Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity

2. The spindle system is high in rigidity and accuracy

3. The design of the main drive is optimized and the gears in the headstock are precision ground.

4. The noise of the machine is low.

5. There is no need for change gears.

6. The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.

7. An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable.

8. A pedal braking device providing quick and effective stop while operating.

Model	T-1640, T-1660	T-1840, T-1860
Swing Over Bed	400mm(16")	460mm(18")
Swing Over Cross Slide	224mm(8-13/16")	274mm(10-3/4")
Swing In Gap	640mm(25-1/8")	690 mm(27-1/8")
Length Of Gap	155mm(6-1/8")
Max. Length Of Workpiece	1000mm(40") , 1500mm(60")	1000mm(40"), 1500mm(60")
Bed Width	300mm(11-13/16")
Spindle Nose	D1-6
Spindle Bore	58mm(2-1/4")
Taper Of Spindle Bore	NO.6Morse
Range Of Spindle Speed	12steps 25-2000r/min
Max.Travel Of Compound Rest	120mm(4-3/4")
Max.Travel Of Cross Slide	290mm(11-3/8")
Leadscrew Pitch	4T.P.I.
Max. Section Of Tool	25mm×25mm(1×1")
Longitudinal Feeds Range	42kinds 0.031-1.7mm/rev, (0.0011"-0.0633"/rev)
Cross Feeds Range	42kinds 0.014-0.784mm/rev, (0.00033"-0.01837"/rev)
Metric Threads Range	41kinds 0.1-14mm
Inch Threads Range	60kinds 2-112T.P.I.
Diametrical Pitches Range	50kinds 4-112D.P.
Module Pitches Range	34kinds 0.1-7M.P.
Dia. Of Tailstock Sleeve	60mm(2-5/16")
Travel Of Tailstock Sleeve	120mm (4-3/4")
Morse Taper Of Tailstock Sleeve	NO.4 Morse
Power Of Main Motor	4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power Of Coolant Pump	0.1kw(1/8HP).3PH
Net Weight/Gross Weight	1670/1980kg, 1970/2320kg	1720/2045kg, 2020/2358 kg
Overall Dimension ( L× W × H)mm	2170, 2720×1040×1340	2250, 2720×1120×1700
Packing Size ( L× W × H)mm	2250, 2800×1120×1700	2250, 2800×1120×1700

Standard Accessories:

3 Jaw Chuck, 4 Jaw Chuck Face Plate, Steady Rest, Follow Rest, Change Gears Set, Work Light, Chasing Dial Indicator, Reduction Sleeve, Dead Centers, Full Length Splash Guard, Coolant System, Brake System, Tool Box & Tools

Optional Accessories:

Taper Turning Attachment, Live Center, Leadscrew Guard, Digital Readout, Quick Change Tool Post, Chuck Guard, Digital Readout (2 Axis), Drill Chuck+Arbor

Why Choose Us

Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;

2 . Professional R&D team and 25 years export experience;

3 . Exported more than 70 countries;

4 . CE, ISO Certificates;

5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);

6 . 12 months quality warranty;

7 . Oversea engineers available for problem resolving.

Company Introduction

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing

Customer Visiting

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing

Exhibition&Training

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing

460mm Max. Swing Diameter High Precision Industrial Lathe for Normal CNC Manufacturing Images
