Horizontal Gap-bed Manual Lathe Machine for Medium Duty Machining Capacity by TIMEWAY

Name: Horizontal Gapbed Manual Lathe Machine for Medium Duty Machining Capacity by TIMEWAY
Brand: Timac, Timeway
Price: 11 USD

Quality Horizontal Gap-bed Manual Lathe Machine for Medium Duty Machining Capacity by TIMEWAY for sale

Max. Length of Workpiece (mm) : 1000

Range of Spindle Speed(r.p.m) : 9 - 1600 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 400

Type : Horizontal

Spindle Motor Power(kW) : 7.5

Place of Origin : Henan, China

Brand Name : Timac, Timeway

Model Number : BL-500B, BL-660B, BL-800B

Voltage : 220V/380V/400V/415V/440V

Dimension(L*W*H) : as model

Weight (KG) : 2100 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Lathe color : Optional

Machine style : Horizontal gap-bed manual lathe

Max. workpiece length : 1000mm

Max. workpiece diameter : 500mm

Spindle speed : 9-1600rpm (24steps)

Automatic feed (X-axis) : 0.012-2.73mm/r (93kinds)

Automatic feed (Z-axis) : 0.028-6.43mm/r (93kinds)

Rapid feed (X-axis) : 1.9m/min

Rapid feed (Z-axis) : 4.5m/min

Spindle bore : 82mm

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location : Canada, United States, Italy, Germany, Brazil, Mexico, Russia, Spain, Chile, Colombia, Algeria, Romania, South Africa, Ukraine, Uzbekistan, Australia

Core Components : Bearing, Pump, Gear, Motor, Gearbox

Spindle Bore(mm) : 82

Max. Turned Length (mm) : 950 mm

Year : 2021

Packaging Details : Wooden case/Pallet(can be fumigated)

Supply Ability : 500 Set/Sets per Month

Price : $11,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

Horizontal Gap-bed Manual Lathe Machine for Medium Duty Machining Capacity by TIMEWAY

Products Description

Specification	Unit	BL-500B	BL-660B	BL-800B
Max. swing over bed	mm	500	660	800
Max. swing over cross slide	mm	300	420	560
Max. swing over gap	mm	710	870	1000
Gap length	mm	240	240	240
Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000	2000/3000
Max. turning length	mm	700/950/1450/1950/2950	700/950/1450/1950/2950	1850/2850
Spindle bore	mm	Φ82	Φ82	Φ82
Spindle taper	-	Φ90, 1:20	Φ90, 1:20	Φ90, 1:20
Spindle nose	-	ISO 702/II No.8	ISO 702/II No.8	ISO 702/II No.8
Spindle speed range (steps)	rpm	9-1600 (24)	9-1600 (24)	8-1400 (24)
Top slide travel	mm	145	145	145
Cross slide travel	mm	320	310	320
Tool section size	mm	25x25	25x25	25x25
X-axis rapid feed speed	m/min	50HZ: 1.9; 60HZ: 2.3	50HZ: 1.9; 60HZ: 2.3	50HZ: 1.9; 60HZ: 2.3
Z-axis rapid feed speed	m/min	50HZ: 4.5; 60HZ: 5.4	50HZ: 4.5; 60HZ: 5.4	50HZ: 4.5; 60HZ: 5.4
X-axis feed range	mm/r	0.012-2.73 (93)	0.012-2.73 (93)	0.012-2.73 (93)
Z-axis feed range	mm/r	0.028-6.43 (93)	0.028-6.43 (93)	0.028-6.43 (93)
Metric threads range (kinds)	mm	0.5-224 (48)	0.5-224 (48)	0.5-224 (48)
Inch threads range (kinds)	TPI	72-1/8 (46)	72-1/8 (46)	72-1/8 (46)
Module threads range (kinds)	MP	0.5-112 (42)	0.5-112 (42)	0.5-112 (42)
Diametrical threads range (kinds)	DP	56-1/4 (45)	56-1/4 (45)	56-1/4 (45)
Tailstock quill diameter	mm	Φ75	Φ75	Φ90
Tailstock quill travel	mm	150	150	150
Tailstock quill taper	-	MT5	MT5	MT5
Main motor power	kw	7.5	7.5	7.5
Rapid feed motor power	kw	0.3	0.3	0.3
Coolant pump motor power	kw	0.12	0.12	0.12
Machine length	mm	2382/2632/3132/3632/4632	2382/2632/3132/3632/4632	3365/4365
Machine width	mm	975	975	1340
Machine height	mm	1230	1270	1430
Machine weight	kg	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000	330/3700

3-jaw chuck	Living center
4-jaw chuck	Taper turning attachment
Face plate	Drill chuck
Dead center	Quick change tool holder
Thread chasing dial	2/3 axis digital readout
Splash guard	Chuck cover
Oil gun	Leadscrew cover
Work lamp	Tool post cover
Cooling system	Driving plate
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual

Machine Details

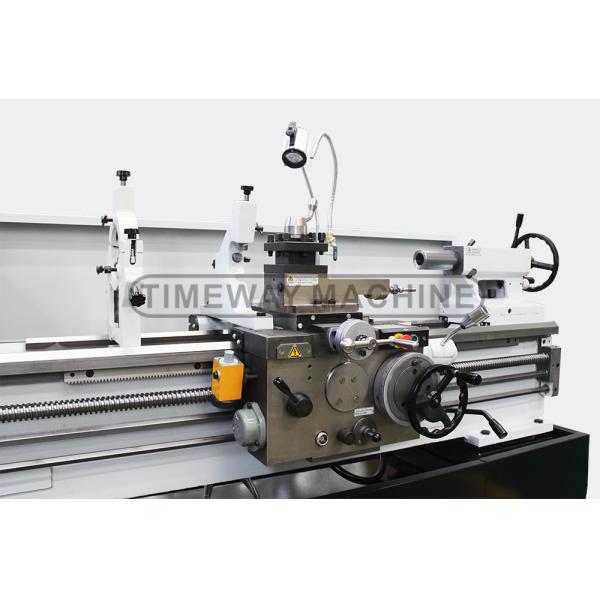

The series gap bed lathe is suitable for all kinds of turning work, such as internal and external turning, taper turning, and other rotary parts turning, end face turning, also turning all kinds of common thread: Inch, Metric, Module and D.P; perform drilling, reaming, tapping and groove broaching.

===================================

>> Standard 3-jaw lathe chuck, quickly clamping workpiece;

>> 2/3-axis digital readout (DRO) is available.

>> Chuck guard is available.

===================================

>> The bed with ribs is made of high quality casting iron;

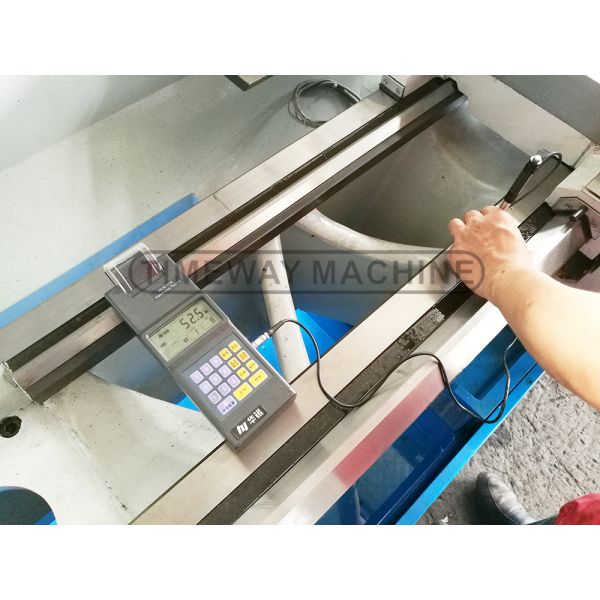

>> The guideway rails are hardened and ground, and the hardness up to be HRC52;

===================================

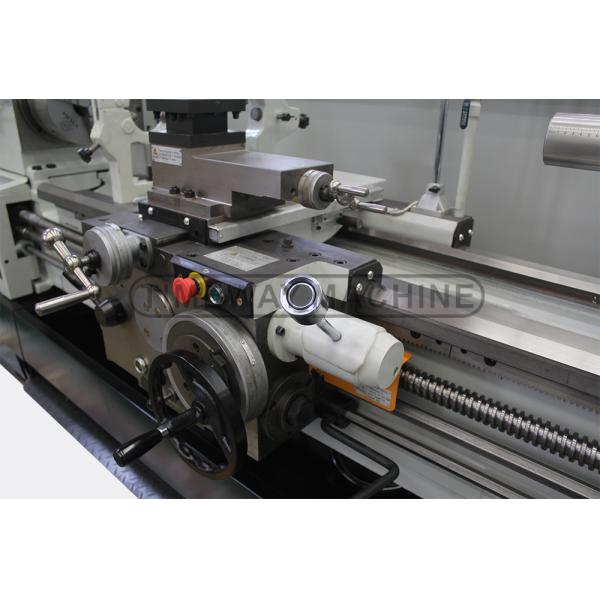

>> Automatic feed and rapid feed on the X/Z-axis by one handle.

>> USA-type, EUROPE-Type, Italian type quick change tool post for choice;

===================================

>> Steady rest and follow rest are standard equipped for the flat bed lathe.

>> Manual tailstock can quickly lock and loosen.

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC horizontal lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
