330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

Name: 330mm Max Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
Brand: TIMAC
Price: 4 USD

Quality 330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine for sale

Max. Length of Workpiece (mm) : 1000

Machining Capacity : Medium Duty

Type : Horizontal

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : T-1340A

Voltage : As request

Dimension(L*W*H) : 1940x760x1520mm

Weight (KG) : 560 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Spindle bore : 38mm

Automatic Grade : Manual

CNC or Not : Normal

lathe machine : high precision metal lathe machine

Max. Swing Diameter : 330mm

Weight : 560/600kg

Power : 1.5kw

Processing capacity : medium

Max.workpiece length : 1000mm

Warranty period : 1 year

Condition : New

Spindle Bore(mm) : 38

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other

Showroom Location : Peru, Indonesia, Mexico, Thailand, South Africa, Malaysia

Core Components : Bearing, Gear, Motor, Gearbox, Other, Engine

Max. Turned Length (mm) : 1000 mm

Packaging Details : In plywood cases.

Port : China port.

Supply Ability : 400 Set/Sets per Month

Price : $4,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Precision Gear Head Engine Lathe

T-1340A

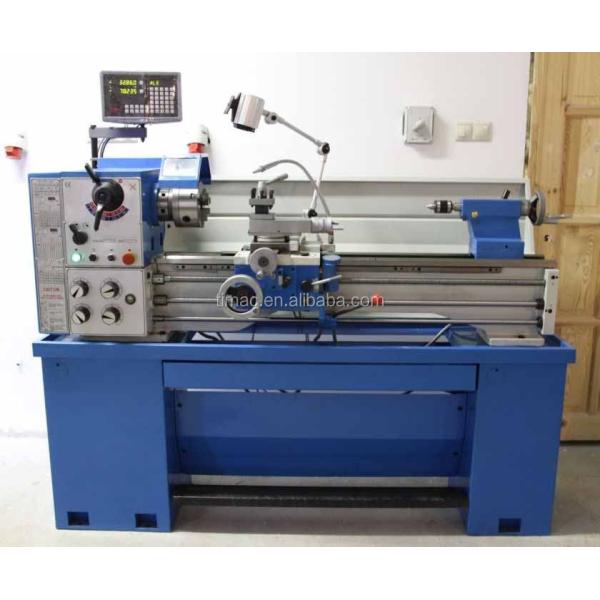

Main Outlook

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

Product Description

Technical Parameter:

Specification	Unit	T-1340A
Max.swing over bed	mm	330
Max.swing over cross slide	mm	198
Max.swing in gap	mm	450
Distance between centers	mm	1000
Spindle nose		D4
Spindle bore	mm	38
Spindle bore taper		M.T.#5
Spindle speed	rpm	70-2000(8steps)
Longitudinal feed range	mm/rev	0.078-1.044
Cross feed range	mm/rev	0.22-0.298
Metric threads	mm	0.45-10
Inch threads	TPI	21/4-40
Tailstock bore taper		M.T.#3
Main motor	kw	1.5
Net weight/Gross weight	kg	560/600
Packing dimension	mm	1940×760×1520

Standard accessories:

3 jaw chuck, 4 jaw chuck,

Face plate, steady rest,

Follow rest, oil gun,

Dead center,

Changing gears,

Reduction sleeve,

Chasing dial indicator

Optional accessories:

Coolant system, working light,

Foot brake system

Digital readout system (DRO),

Quick change tool post & holders,

Taper turning attachment

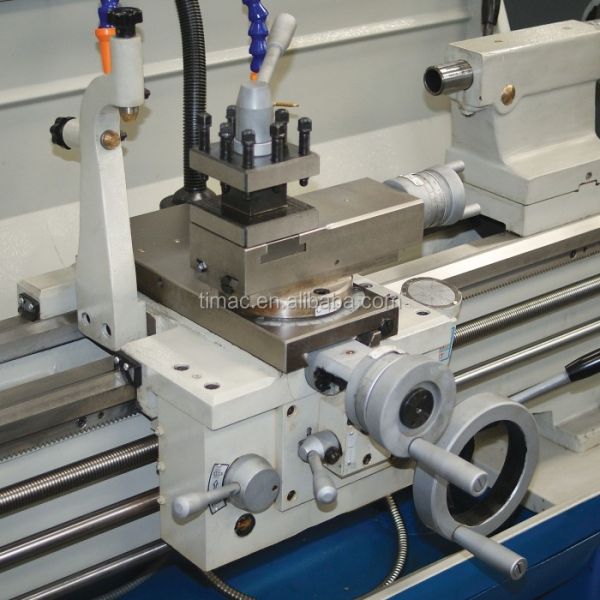

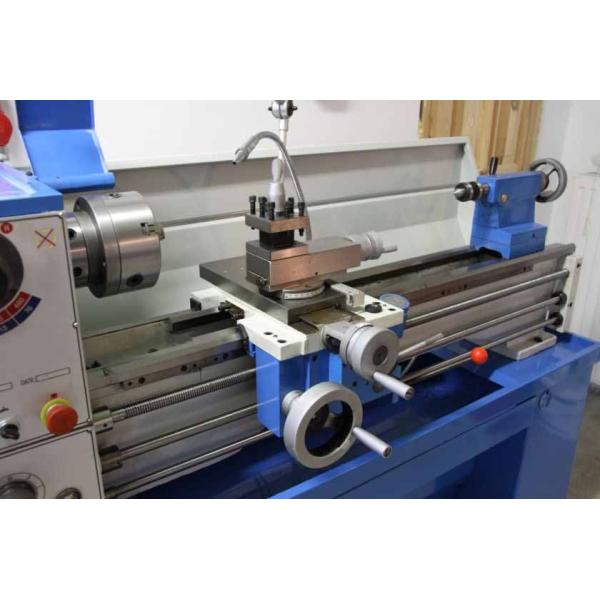

Detail Images

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine Images
