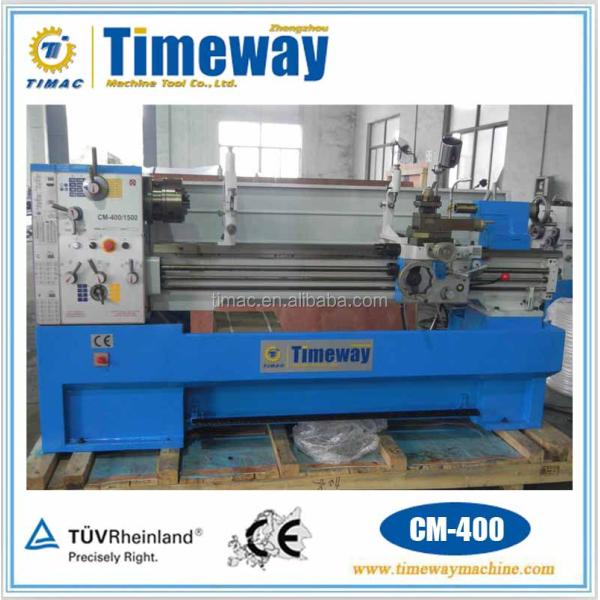

Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance

Name: Max Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM400 with Performance
Brand: TIMAC
Price: 6 USD

Quality Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance for sale

Max. Length of Workpiece (mm) : 1500 mm

Range of Spindle Speed(r.p.m) : 45 - 1800 r.p.m

Machining Capacity : Heavy Duty

Width of bed (mm) : 250

Type : Horizontal

Spindle Motor Power(kW) : 2.8

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : CM-400x1000, CM-400x1500

Voltage : 380V, 220V, 400V, 440V, etc

Dimension(L*W*H) : 2060, 2560x 900x1640mm

Weight (KG) : 2100 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : Normal

Automatic Grade : Automatic

Precision gap bed lathe : Precision gap bed lathe

Width of bed : 250mm

Max. Swing Diameter : 410mm

Weight : 1550, 1850/1800, 2100kg

Power(W) : 2.8/3.3kw

After-sales Service Provided : Online support

After Warranty Service : Online support

Local Service Location : Canada, United Kingdom, United States, France

Certification : ISO9001, CE

Condition : New

Applicable Industries : Manufacturing Plant

Showroom Location : Canada, United Kingdom, United States, France

Core Components : Bearing

Spindle Bore(mm) : 52

Max. Turned Length (mm) : 1500 mm

Year : 2020

Packaging Details : Woden case/Pallet (fumigated)

Port : Shanghai port

Supply Ability : 150 Set/Sets per Month

Price : $6,800.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Precision Gap Bed Lathe

Features:

1. Powerful precision gearhead lathes with cost effective;

2. Need not change any gears you can turn all the metric and inch thread indicating in chart;

3. Three points support for spindle;

4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

Parameter:

Specification	CM-400
Swing over bed	410mm
Swing over cross slide	255mm
Swing in gap	580mm
Length of gap	250mm
Distance between centers	1000, 1500mm
Width of bed	250mm
Spindle nose	D1-6
Spindle bore	52mm
Taper of spindle bore	No.6 Morse
Range of spindle speed	16 changes 45-1800r/min
Max. travel of compound rest	102mm
Max. travel of cross slide	210mm
Leadscrew pitch	4T.P.I.
Max. Section of tool	20 × 20mm
Longitudinal feeds range	0.05-1.7mm/rev
Cross feeds range	0.025-0.85mm
Metric threads range	39 kinds 0.2-14mm
Inch threads range	45 kinds 2-72T.P.I.
Diametrical pitches range	21 kinds 8-44 D.P.
Module pitches range	18 kinds 0.3-3.5 M.P.
Dia.of tailstock sleeve	50mm
Travel of tailstock sleeve	120mm
Morse taper of tailstock sleeve	No.4 Morse
Cross adjustment	±13mm
Power of main motor	2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP
Power of coolant pump	0.1kw (1/8HP), 3PH
Overall Dimension (LxWxH)	1940, 2440x 850x1320mm
Packing size (LxWxH)	2060, 2560x 900x1640mm
Net weight/Gross weight	1550, 1850/1800, 2100kg

*** Standard accessories:

3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)

*** Optional accessories:

Digital readout system (DRO), quick change tool post & holders, taper turning attachment

Detailed Images

Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance 3-jaw chuck Tailstock

Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance

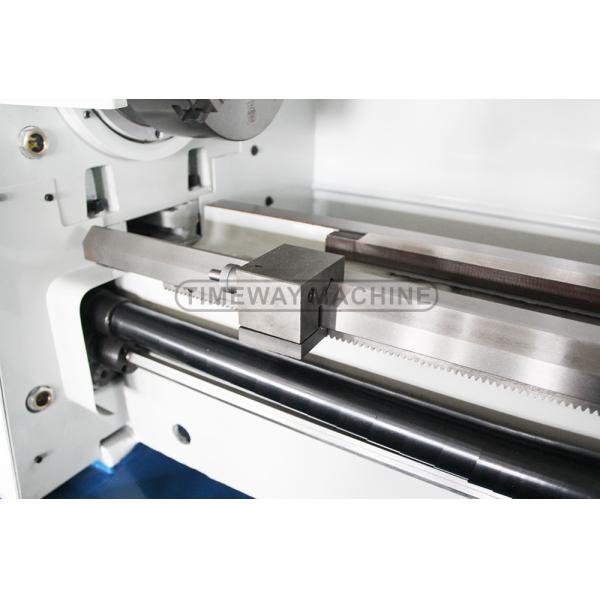

Tool Holder Sizing device

Packaging & Shipping

Max. Swing Diameter 410mm Light Duty Precision Gap Bed Lathe CM-400 with Performance

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG

Container loaded: 4 sets / 20'GP
