400mm Bed Width 24"-40" Precision Gap Bed Lathe Machine Customized Design

Name: 400mm Bed Width 24quot40quot Precision Gap Bed Lathe Machine Customized Design
Brand: TIMAC TIMEWAY
Price: 28 USD

Quality 400mm Bed Width 24"-40" Precision Gap Bed Lathe Machine Customized Design for sale

Max. Length of Workpiece (mm) : 1000

Range of Spindle Speed(r.p.m) : 9 - 1275 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 400

Type : Horizontal

Spindle Motor Power(kW) : 7.5

Place of Origin : Henan, China

Brand Name : TIMAC TIMEWAY

Model Number : FL-660Y

Voltage : as customer's request

Dimension(L*W*H) : 2450*1150*1750mm

Weight (KG) : 3100 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Automatic Grade : Manual

Product Name : Manual Metal Lathe Machine

Color : customized

workpiece length : 1000mm

Processing capacity : Medium Duty

Spindle bore : 103mm

Name : gap bed lathe machine

Machine Type : Gap Bed lathe

Keyword : horizontal lathe machine

Certification : CE & ISO

Condition : New

Spindle Bore(mm) : 103

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Energy & Mining

Showroom Location : Canada, United States, Italy, Germany

Core Components : Pump, Motor, Engine

Max. Turned Length (mm) : 1000 mm

Year : 2020

Packaging Details : in wooden case (can be fumigated) or as your request

Port : Chiana Port

Supply Ability : 200 Set/Sets per Month

Price : $28,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

400mm Bed Width 24"-40" Precision Gap Bed Lathe Machine Customized Design

24"-40" Precision Gap-bed Lathe Machine For Sale At Low Price

Features :
1. Precision ground;
2. Clutched head stock;
3. Safety torque limiting device for lead screw;
4. Safety overload clutch for feed rod;
5. Rapid traverse (optional);
6. Main spindle supported at 2 points with precision taper roller bearing.

Standard Accessories :

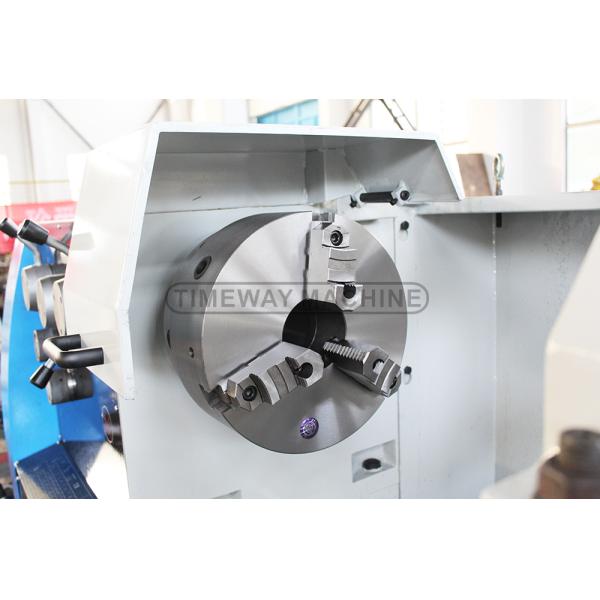

3 jaw chuck, Changing gears, Dead center, Reduction sleeve, Oil gun, Coolant system, Working light,
4 jaw chuck, Face plate, Steady rest, Follow rest, Chasing dial indicator.

Optional Accessories :
Digital readout system (D.R.O), quick change tool post & holders, taper turning attachment

PRODUCT SPECIFICATIONS

Specification		Unit	FL-600Y	FL-660Y	FL-800Y	FL-1000Y
Capacity	Max.swing over bed	mm	600	660	800	1000
		Max.swing over cross slide	mm	405	435	545	745
		Max.swing in gap	mm	800	860	1000	1200
		Effective length of gap	mm	280
		Distance between centers	mm	1000/1500/2000/3000/4000
		Width of bed	mm	400
Headstock	Spindle bore	mm	103(Optional: 165)
		Spindle nose		ISO-D111(Optional:ISO-D15)
		Spindle taper		Metric 115
		Spindle speed(No.)	rpm	9-1275(ccw/18), 16-816(cw/6)
Net/gross	1000mm	kg	2900/3100	3100/3300	3300/3500	3500/3700
		1500mm	kg	3100/3300	3300/3500	3500/3700	3700/3900
		2000mm	kg	3300/3600	3500/3800	3700/4000	3900/4200
		3000mm	kg	3700/4100	3900/4300	4100/4500	4300/4700
		4000mm	kg	4100/4600	4300/4800	4500/5000	4700/5200

Positive Comments From Customers

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

400mm Bed Width 24"-40" Precision Gap Bed Lathe Machine Customized Design Images
