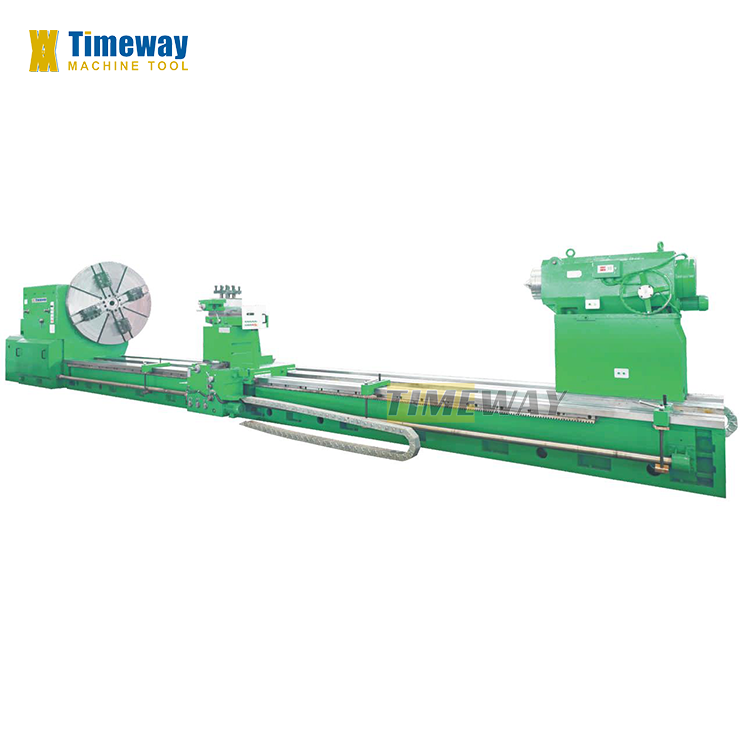

High Productivity Horizontal Metal Turning Lathe Machine with Large Workpiece Capacity

Name: High Productivity Horizontal Metal Turning Lathe Machine with Large Workpiece Capacity
Brand: TIMEWAY
Price: 70 USD

Quality High Productivity Horizontal Metal Turning Lathe Machine with Large Workpiece Capacity for sale

Max. Length of Workpiece (mm) : 6000

Range of Spindle Speed(r.p.m) : 0.8 - 160 r.p.m

Machining Capacity : Heavy Duty

Width of bed (mm) : 1600

Type : Horizontal

Spindle Motor Power(kW) : 75

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : AL-2000H

Voltage : 220V/380V/400V/415V/440V

Dimension(L*W*H) : 16577x2479x2580mm

Weight (KG) : 20000 KG

Warranty : 1 Year

Key Selling Points : High Rigidity

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Online support

Precision cutting roughness : Ra1.6um

4-jaw chuck diameter : 1600/1800mm

Maximum workpiece length : 6000

Processing capacity : heavy duty

Spindle bore diameter : 85

Name : High Productivity Heavy Duty Horizontal Metal Turning Lathe Machine

Machine Type : Horizontal Metal Turning Lathe Machine

Keyword : Metal Turning Lathe

Product Name : Manual Metal Lathe Machine

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant

Showroom Location : Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Russia, Uzbekistan, Australia

Core Components : Bearing, Pump, Motor

Spindle Bore(mm) : 85

Max. Turned Length (mm) : 5800 mm

Year : 2020

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 5 Set/Sets per Month

Price : $70,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

High Productivity Heavy Duty Horizontal Metal Turning Lathe Machine

High Productivity Horizontal Metal Turning Lathe Machine with Large Workpiece Capacity

Application:
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling,forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features:
This turns machine is a universal lathe with loading capacity of 25/32/40 tons, after used roller support and steady rest, loading capacity to be 40tons. It is suitable for high-speed steel and hard alloy steel tools. For shaft parts of different materials, cylindrical and disc-shaped parts, turning outer ring, end face, slotting, cutting, The boring, the inner and outer cones of the rut, and the use of the upper tool holder (via the hanging wheel) for turning various threads of less than 600 mm in length.
1.The lathe bed is integral box-shaped three rectangular rail structure, which is cast in one-time casting with high-grade cast iron (HT300). After two times of aging treatment, the stability is good; the width of the guide rail is 1600mm, the rigidity is good, and the anti-vibration capability is strong; Precision grinding by imported guide grinding machines ensures long life, high precision and good retention.
2. The main drive mechanism of the machine tool is driven by a 75KW DC motor. The total speed ratio of the variable speed control mode is 1:22.2, 3steps speed changing, and the mechanical and electrical speed ratio is 1:200. The spindle obtains a stepless speed regulation range of 0.8 to 160 r/min.
3.The feed system is connected to the main drive through the light bar, so that the feed is directly related to the spindle speed, and the feed rate is convenient to select.
4.The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.
5.The turns standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
6.The turns supply two kinds of center frame, that is a closed center frame and an open center frame.
7.Two rows of high-precision racks are installed on front and behind the machine, the front racks drives the carriage feed to realize turning thread, and the rear row of racks drives the tailstock for motorized movement.
8.High rigidity and high precision spindle: The machine tool spindle bearing adopts domestic famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.

Specification	Unit	AL-2000H
Max. swing over bed	mm	2000
Max. swing over cross slide	mm	1600
Distance between centers	mm	3000~20000
Max. torque of chuck	N.m	80000
Chuck diameter	mm	1600/1800
Spindle speed range	rpm	0.8-160 (stepless)
Range of longitudinal feed	mm	0.125-48 (18)
Range of cross feed	mm	0.063-24 (18)

Positive Comments From Customers

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
