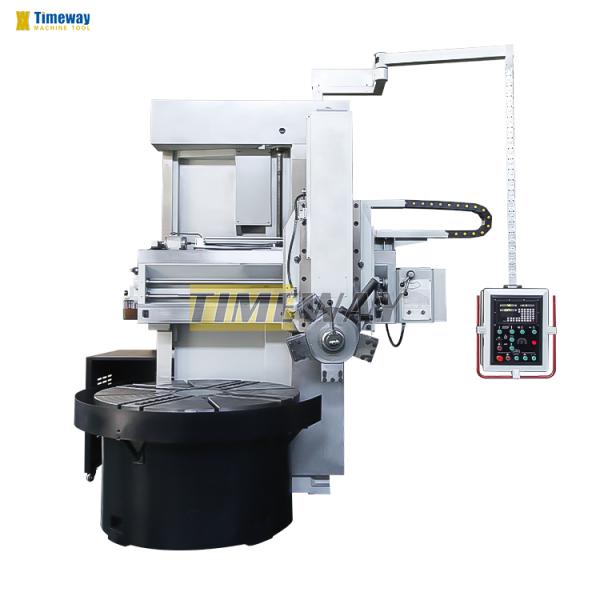

17800 KG Weight Conventional Single Column Vertical Lathe Machine VL Series

Name: 17800 KG Weight Conventional Single Column Vertical Lathe Machine VL Series
Brand: TIMEWAY
Price: 58 USD

Quality 17800 KG Weight Conventional Single Column Vertical Lathe Machine VL Series for sale

Max. Length of Workpiece (mm) : 1600mm

Range of Spindle Speed(r.p.m) : 4 - 125 r.p.m

Machining Capacity : Heavy Duty

Type : VERTICAL

Spindle Motor Power(kW) : 37

Place of Origin : China

Brand Name : TIMEWAY

Model Number : VL2000E

Voltage : As customer's requirements

Dimension(L*W*H) : 3210*2970*4200 mm

Weight (KG) : 17800 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

max. turning diameter : 2000mm

max. height of workpiece : 1600mm

max. weight of workpiece : 12000kg

worktable diameter : 1800mm

max. cutting force of tool-post : 25KN

max. torque of worktable : 32KN.m

worktable speed : 4-125rpm

tool post feed speed : 0.8-86mm/min

vertical travel of tool post : 1000mm

cross travel of tool post : -65~1150mm

Condition : New

Showroom Location : Canada, United Kingdom, United States, France, Brazil, Peru, Indonesia, Pakistan, Russia, Spain, Chile, UAE, Malaysia, Australia

Core Components : Bearing, Motor, Gearbox, PLC, Engine

Spindle Bore(mm) : Other

Max. Turned Length (mm) : 1600 mm

Year : 2023

Applicable Industries : Manufacturing Plant, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $58,643.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

vertical lathe

Specification	Unit	VL1250E	VL2000E
Max. Turning diameter	mm	1250	2000
Max. Height of workpiece	mm	1000/1250/1400	1250/1600
Max. Weight of workpiece	kg	5	12000
Worktable diameter	mm	1010	1800
Max. Cutting force of tool-post	KN	20	25
Max. Torque of worktable	KN.m	17.5	32
Worktable speed	rpm	6.3-200(16)	4-125 (16)
Tool post feed speed	mm/min	0.8-86(12)	0.8-86 (12)
Tool-post rapid feed speed	mm/min	1800	1800
Swiveling angle of tool-post	°	±30	±30
Cross travel of tool-post	mm	-28~733	-65~1150
Vertical travel of tool-post	mm	650/800	800/1000
Main motor power	kw	22	37
Worktable guideway type	-	rolling	rolling
Tool-post guideway type	-	sliding	sliding
Machine weight	kg	8300/8600/8900	17500/17800
Machine dimension(L×W×H)	mm	2360x2870x3870	3210×2970×4200

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Company Video

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
