precision BL-500C Gap Bed Lathe Max Processing Dia 500mm for Industrial Manufacturing

Name: precision BL500C Gap Bed Lathe Max Processing Dia 500mm for Industrial Manufacturing
Brand: Timeway
Price: 20 USD

Quality precision BL-500C Gap Bed Lathe Max Processing Dia 500mm for Industrial Manufacturing for sale

Max. Length of Workpiece (mm) : 1000

Range of Spindle Speed(r.p.m) : 36 - 1600 r.p.m

Machining Capacity : Medium Duty

Type : Horizontal

Spindle Motor Power(kW) : 7.5

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : BL-500C, BL-660C, BL-800C

Voltage : 220V/380V/400V/415V

Dimension(L*W*H) : 2632x975x1270mm

Weight (KG) : 2050 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Horizontal Metal Turning Lathe Machine

Keyword : METAL PROCESSING HORIZONTAL LATHE MACHINE

Function : Metal Turning

Precision : High Precision Machine

Color : Customrized

Distance between centers : 750/1000/1500/2000/3000mm

Spindle speed : 36-1600 (12)rpm

Motor power : 7.5kw

Name : Lathe Machine

Spindle hole : 105mm

Condition : New

Spindle Bore(mm) : 105

Showroom Location : Canada, Turkey, United Kingdom, United States, Pakistan, India, Russia, Thailand, Nigeria, Japan

Max. Turned Length (mm) : 950 mm

Year : 2023

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Core Components : Bearing, Gear, Gearbox, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $20,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

precision BL-500C Gap Bed Lathe Max Processing Dia 500mm for Industrial Manufacturing

Products Description

Specification	Unit	BL-500C	BL-660C	BL-800C
Max. swing over bed	mm	500	660	800
Max. swing over cross slide	mm	300	420	560
Max. swing over gap	mm	710	870	1000
Gap length	mm	240	240	240
Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000	2000/3000
Max. turning length	mm	700/950/1450/1950/2950	700/950/1450/1950/2950	1850/2850
Spindle bore	mm	Φ105	Φ105	Φ105
Spindle taper	-	Φ113, 1:20	Φ113, 1:20	Φ113, 1:20
Spindle nose	-	ISO 702/II No.8	ISO 702/II No.8	ISO 702/II No.8
Spindle speed range (steps)	rpm	36-1600 (12)	36-1600 (12)	30-1400 (12)
Top slide travel	mm	145	145	145
Cross slide travel	mm	320	310	320
Tool section size	mm	25x25	25x25	25x25
X-axis rapid feed speed	m/min	50HZ: 1.9; 60HZ: 2.3	50HZ: 1.9; 60HZ: 2.3	50HZ: 1.9; 60HZ: 2.3
Z-axis rapid feed speed	m/min	50HZ: 4.5; 60HZ: 5.4	50HZ:4.5; 60HZ: 5.4	50HZ: 4.5; 60HZ: 5.4
X-axis feed range	mm/r	0.027-1.07 (65)	0.027-1.07 (65)	0.027-1.07 (65)
Z-axis feed range	mm/r	0.63-2.52 (65)	0.63-2.52 (65)	0.63-2.52 (65)
Metric threads range (kinds)	mm	1-14 (22)	1-14 (22)	1-14 (22)
Inch threads range (kinds)	TPI	28-2 (25)	28-2 (25)	28-2 (25)
Module threads range (kinds)	MP	0.5-7 (18)	0.5-7 (18)	0.5-7 (18)
Diametrical threads range (kinds)	DP	56-4 (24)	56-4 (24)	56-4 (24)
Tailstock quill diameter	mm	Φ75	Φ75	Φ90
Tailstock quill travel	mm	150	150	150
Tailstock quill taper	-	MT5	MT5	MT5
Main motor power	kw	7.5	7.5	7.5
Rapid feed motor power	kw	0.3	0.3	0.3
Coolant pump motor power	kw	0.12	0.12	0.12
Machine length	mm	2382/2632/3132/3632/4632	2382/2632/3132/3632/4632	3365/4365
Machine width	mm	975	975	1340
Machine height	mm	1270	1450	1490
Machine weight	kg	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000	3000/3200

3-jaw chuck	Chasing dial indicator
4-jaw chuck	Liver center
Face plate	Digital readout system (DRO)
Steady rest	Quick change tool-post
Follow rest	Taper turning attachment
Changing gears
Dead center
Reduction sleeve
Oil gun
Coolant system
Working lamp
General tools
Operation manual

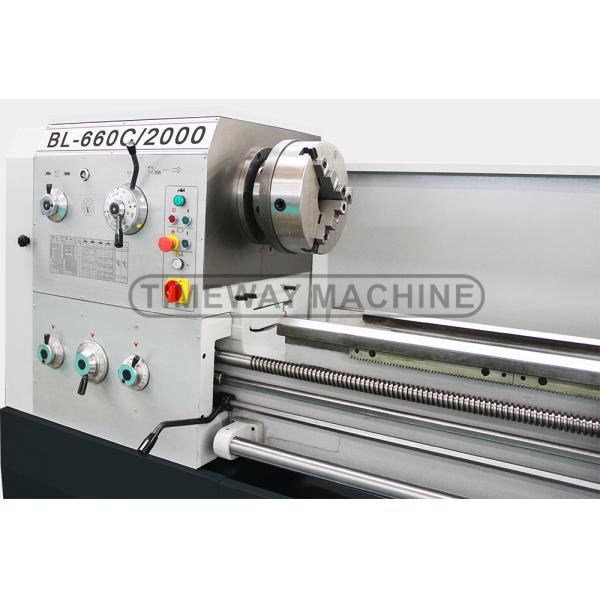

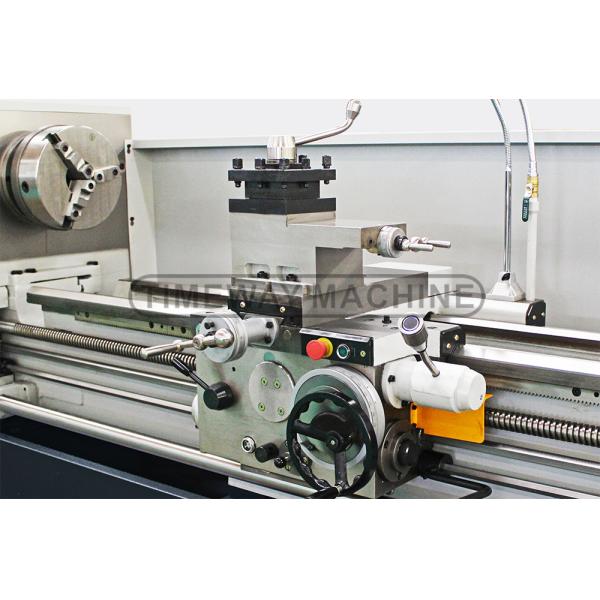

Machine Details

Why Choose Us

Renishaw laser interferometer (only for CNC horizontal lathe)：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
