Precision and Efficiency Professional Installation Training for AL-1400B Manual Lathe

Name: Precision and Efficiency Professional Installation Training for AL1400B Manual Lathe
Brand: TIMEWAY
Price: 23 USD

Quality Precision and Efficiency Professional Installation Training for AL-1400B Manual Lathe for sale

Max. Length of Workpiece (mm) : 1400

Machining Capacity : Heavy Duty

Type : Horizontal

Place of Origin : China

Brand Name : TIMEWAY

Model Number : AL-1400B

Weight (KG) : 8000 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Bench Lathe

Machine Type : Horizontal Metal Turning Lathe Machine

After-sales Service Provided : Online Support

Product Name : Manual Metal Lathe Machine

Keyword : Universal Metal Lathe

Function : Machining Metal

Automatic Grade : Normal

Precision : High Precision

Product type : Bench Lathe Machine Tool

CNC or Not : Nomal

Condition : New

Spindle Bore(mm) : 130

Applicable Industries : Home Use, Retail, Construction works

Showroom Location : Italy, Peru, Russia, South Korea, Romania, Nigeria

Core Components : Bearing, Pump, Gear, PLC, Pressure vessel

Max. Turned Length (mm) : 12000 mm

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $23,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

AL - 1400B

Heavy Duty Horizontal Lathe:

Specification	Unit	AL-1400B
Max. swing over bed	mm	1400
Max. swing over cross slide	mm	1015
Distance between centers	mm	1500/2000/3000/4000/5000/6000/8000/10000/12000
Max. turning length	mm	1300/1800/2800/3800/4800/5800/7800/9800/11800
Bed width	mm	755
Loading capacity	kg	6000
Spindle nose	-	A2-15 (8xM22)
Spindle bore	mm	130
Spindle taper	-	Metric 140
Spindle speed range	rpm	CCW: 3.15-315, CW: 3.5-291
Spindle speed step	steps	CCW: 21, CW: 12
X/Z-axis feed kinds	kinds	56/56
Feed range	mm	Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3
Metric threads range (kinds)	mm	1-120 (44)
Inch threads range (kinds)	TPI	28-1/4 (31)
Module threads range (kinds)	MP	0.5-60 (45)
Diametrical threads range (kinds)	DP	1/2-56 (38)
Distance spindle center to tool base	mm	48
Tool post swivel angle	°	±90°
Cross slide travel	mm	580
Top slide travel	mm	300
Tool section size	mm	45x45
Rapid feed speed	mm/min	Longitudinal: 3740; Cross: 1870; Top tool-post: 935
Tailstock quill diameter	mm	160
Tailstock quill travel	mm	300
Tailstock quill taper	-	MT6
Main motor power	kw	22
Machine length	mm	4600/5100/6100/7100/8100/9100/11100/13100/15100
Machine width	mm	2150
Machine height	mm	1950
Machine height	mm	1622

Positive Comments From Customers

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

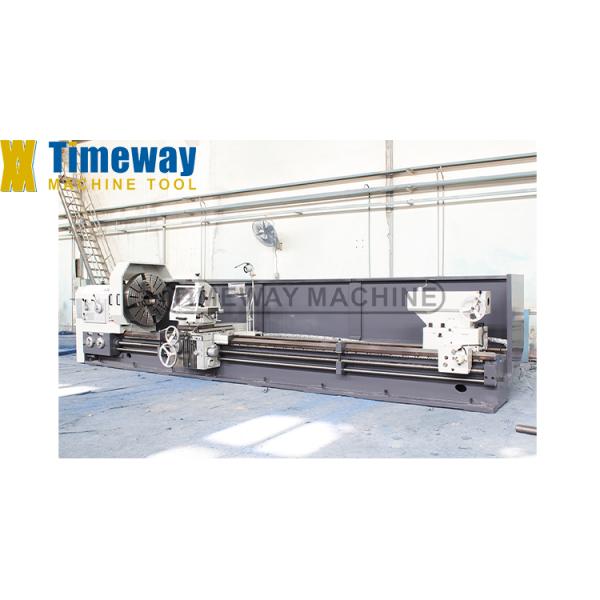

Precision and Efficiency Professional Installation Training for AL-1400B Manual Lathe Images
