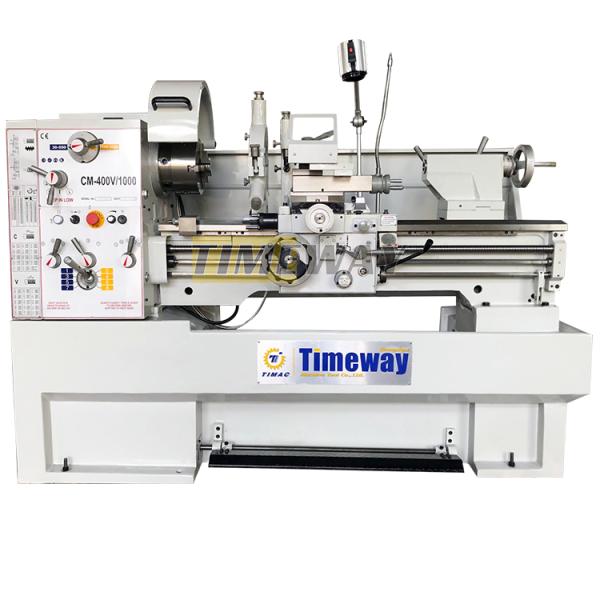

High Precision Machine Competitive Lathe torno Gap-bed Lathe Mini Lathe 19307601500

Name: High Precision Machine Competitive Lathe torno Gapbed Lathe Mini Lathe 19307601500
Brand: Timeway
Price: 6 USD

Quality High Precision Machine Competitive Lathe torno Gap-bed Lathe Mini Lathe 1930*760*1500 for sale

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 550 - 3000 r.p.m

Machining Capacity : Light Duty

Width of bed (mm) : 187

Type : Horizontal

Spindle Motor Power(kW) : 3.3kw

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : CM-400V

Voltage : 220V/380V/400V/415V

Dimension(L*W*H) : 1930*760*1500

Weight (KG) : 1600 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : New Product 2021

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Manual Lathe Machine

Machine Type : Horizontal Normal Lathe

Product Name : Manual Metal Lathe Machine

Keyword : Metal Lathe

Function : Machining Metal

Precision : High Precision Machine

Processing : Metal Workpiece

Key word : Horizontal Manual Lathe Machine

Color : Customrized

Distance between centers : 1500mm

Condition : New

Spindle Bore(mm) : 52

Showroom Location : United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan

Core Components : Bearing, Gear, Motor, Gearbox, Engine

Max. Turned Length (mm) : 1500 mm

Year : 2021

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $6,560.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Conventional Gap-Bed Lathe

High Precision Machine Competitive Lathe torno Gap-bed Lathe Mini Lathe 1930*760*1500

Feature:
* Precision ground and supersonic frequency hardened bed ways.
* The spindle is supported with precision roller bearing;
* Headstock gears are made of high quality steel, ground and hardened;
* Removable gap is provided for larger diameter work;
* Easy operating gear box has various feeds and thread cutting function;

Products Description

3-jaw chuck	Living center
4-jaw chuck	Taper turning attachment
Face plate	Drill chuck
Dead centers	Quick change tool holder
Thread chasing dial	2/3 axis digital readout
Splash guard	Chuck cover
Oil gun	Leadscrew cover
Work lamp	Tool post cover
Cooling system	Driving plate
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Tool-box & tools
Operation manual

Specifications	Unit	CM-400	CM-400V
Swing over bed	mm	410	410
Swing over cross slide	mm	255	255
Swing in gap diameter x width	mm	580	580
Height of center	mm	205	205
Distance between centers	mm	1000/ 1500	1000/ 1500
Width of bed	mm	250	250
Cutting tool max section	mm	20x20	20x20
Total travel of cross slide	mm	210	210
Total travel of top slide	mm	140	140
Spindle bore	mm	52	52
Spindle morse taper in bore	-	D1-6	D1-6
Lead screw thread	TPI	4	4
Spindle speeds range (steps)	rpm	45-1800 (16)	30-550 or 550-3000 (stepless)
Threads imperial pitches	TPI	2-72 (45)	2-72 (45)
Threads metric pitches	mm	0.1-14 (39)	0.1-14 (39)
Longitudinal feeds	mm/rev	0.05-1.7	0.05-1.7
Cross feeds	mm/rev	0.025-0.85	0.025-0.85
Range of module pitches	MP	0.3-3.5 (18)	0.3-3.5 (18)
Range of diametral pitches	DP	8-44 (21)	8-44 (21)
Tailstock quill diameter	mm	50	50
Total travel of tailstock quill	mm	120	120
Taper in tailstock quill	-	MT4	MT4
Spindle drive motor	kw	3.3/2.2	3.3/2.2
Coolant pump motor	w	90	90
Packing size (LxWxH)	mm	2060/2560x900x1640	2060/2560x900x1640
Net weight	kg	1300/1550	1350/1600
Gross weight	kg	1500/1750	1555/1755

Machine Details

Machine features:

This series universal center lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.

Inductive hardened, polished grey cast-iron machine bed.

Electro mechanical foot brake reduces downtime significantly.

State-of-the-art main spindle bearing with high quality angular ball bearings.

Easy, smooth and precisely adjustable speed and feed settings.

Hardened, polished gears and shafts, also in feed gear unit.

Centrally located, logical switches for feeds and threads with leadscrew and feed rod.

Adjustable tailstock for taper turning, handwheel feature adjustable scale(0.02mm).

The removeable bridge allows machining of workpieces with a big diameter.

Head stock gears are made of high quality steel ground and hardened more than HRC 50.

==================================

>> 3-jaw manual chuck comes standard;

>> Chuck guard for protecting operator is optional.

==================================

>> The lathe rails are hardened and ground;

>> Finish X and Z-axis automatic feeding;

>> Tool post guard is optional.

==================================

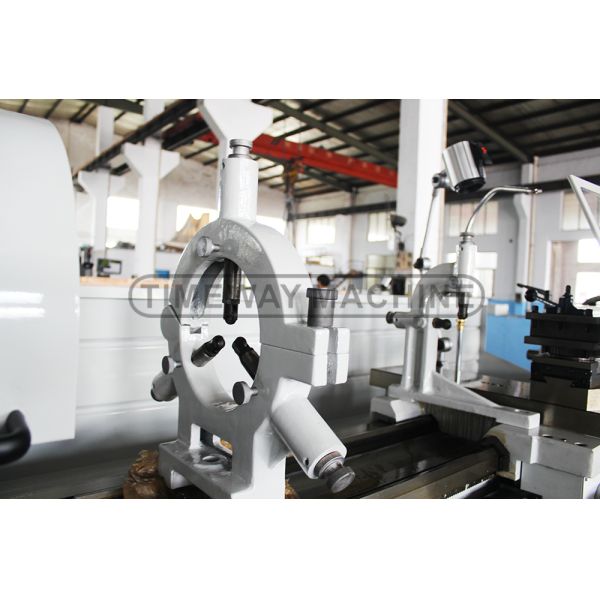

>> The steady rest and follow rest come standard for gap lathe machine.

==================================

>> Standard 4-station tool post, USA-type quick change tool post is available.

==================================

>> 2 & 3-axis DRO is optional;

>> Foot brake can realize quickly stopping the spindle;

>> Z-axis screw guard and sizing device come optional.

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC horizontal lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.

Why Choose Us

Renishaw laser interferometer (only for CNC horizontal lathe)：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
