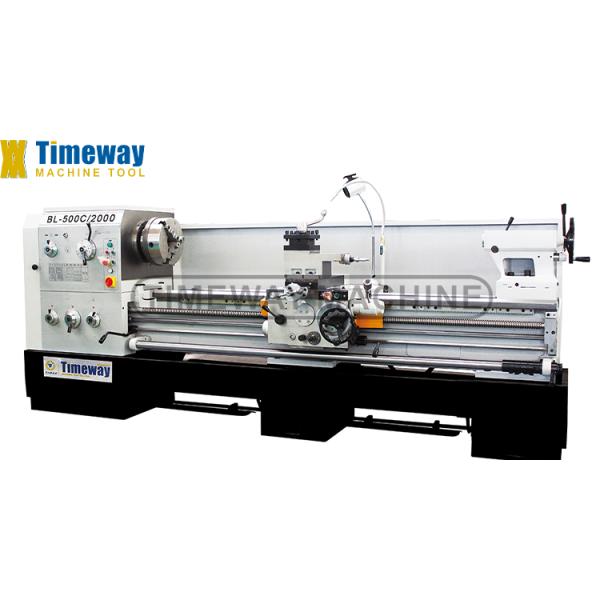

BL-500C Gap-bed Lathe Processing with Customized Service and Advanced Cooling System

Name: BL500C Gapbed Lathe Processing with Customized Service and Advanced Cooling System
Brand: TIMEWAY
Price: 11 USD

Quality BL-500C Gap-bed Lathe Processing with Customized Service and Advanced Cooling System for sale

Max. Length of Workpiece (mm) : 500

Machining Capacity : Medium Duty

Type : Horizontal

Place of Origin : China

Brand Name : TIMEWAY

Model Number : BL-500C

Weight (KG) : 2050 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Bench Lathe

Machine Type : Horizontal Metal Turning Lathe Machine

After-sales Service Provided : Online Support

Product Name : Manual Metal Lathe Machine

Keyword : Universal Metal Lathe

Function : Machining Metal

Automatic Grade : Normal

Product type : Economical Lathe

Precision : High Precision

CNC or Not : Nomal

Condition : New

Spindle Bore(mm) : 105

Applicable Industries : Building Material Shops, Machinery Repair Shops, Construction works

Showroom Location : Egypt, Italy, Peru, Russia, South Korea, Romania, Nigeria

Core Components : Bearing, Pump, Gear, Motor, Other, PLC, Pressure vessel, Engine

Max. Turned Length (mm) : 3000 mm

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $11,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

BL - 500C

Gap-bed Lathe:

Specification	Unit	BL-500C
Max. swing over bed	mm	500
Max. swing over cross slide	mm	300
Max. swing over gap	mm	710
Gap length	mm	240
Distance between centers	mm	750/1000/1500/2000/3000
Max. turning length	mm	700/950/1450/1950/2950
Spindle bore	mm	Φ105
Spindle taper	-	Φ113, 1:20
Spindle nose	-	ISO 702/II No.8
Spindle speed range (steps)	rpm	36-1600 (12)
Top slide travel	mm	145
Cross slide travel	mm	320
Tool section size	mm	25x25
X-axis rapid feed speed	m/min	50HZ: 1.9; 60HZ: 2.3
Z-axis rapid feed speed	m/min	50HZ: 4.5; 60HZ: 5.4
X-axis feed range	mm/r	0.027-1.07 (65)
Z-axis feed range	mm/r	0.63-2.52 (65)
Metric threads range (kinds)	mm	1-14 (22)
Inch threads range (kinds)	TPI	28-2 (25)
Module threads range (kinds)	MP	0.5-7 (18)
Diametrical threads range (kinds)	DP	56-4 (24)
Tailstock quill diameter	mm	Φ75
Tailstock quill travel	mm	150
Tailstock quill taper	-	MT5
Main motor power	kw	7.5
Rapid feed motor power	kw	0.3
Coolant pump motor power	kw	0.12
Machine length	mm	2382/2632/3132/3632/4632
Machine width	mm	975
Machine height	mm	1270
Machine weight	kg	2050/2100/2300/2500/2900

Positive Comments From Customers

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
