Customrized Heavy Duty Horizontal Lathe Machine with Large Loading Capacity of 3500 KG

Name: Customrized Heavy Duty Horizontal Lathe Machine with Large Loading Capacity of 3500 KG
Brand: Timeway
Price: 26 USD

Max. Length of Workpiece (mm) : 3000

Range of Spindle Speed(r.p.m) : 0.8 - 160 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 380mm

Type : Horizontal

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : AL-1600H

Voltage : 110V/220V

Dimension(L*W*H) : 13577*2479*2280

Weight (KG) : 3500 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. Weight of Workpiece(kg) : 25000

Spindle Taper : BT50, BT40

Cutting torque : 80000 N.m

Rapid Feed Speed(mm/min) : 0 - 3000 mm/min

Feed Speed(mm/min) : 0 - 2000 mm/min

Tool Post Stations : 8, 4

Name : Manual Lathe Machine

Machine Type : Horizontal Metal Turning Lathe Machine

Product Name : Manual Metal Lathe Machine

Keyword : Universal Metal Lathe

Function : Machining Metal

Precision : High Precision

Color : Customrized

CNC or Not : Nomal

Processing : Metal Workpiece

Distance between centers : 1000mm/1500mm/2000mm/3000mm

Price : $26,480.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

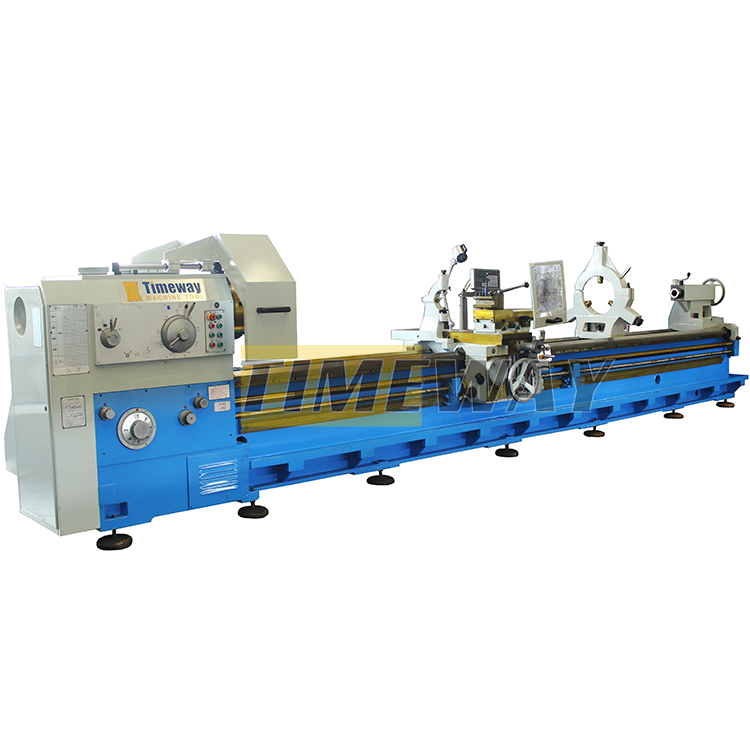

Heavy Duty Horizontal Lathe

Features:
1.Stable performance: It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.

2.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.

3.High rigidity overall bed with 600 mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 3000 kg.

Specification

Specification	Unit	AL-1600H	AL-2000H	AL-2500H
Max. swing over bed	mm	1600	2000	2500
Max. swing over cross slide	mm	1250	1600	2200
Distance between centers	mm	3000~20000	3000~20000	3000~20000
Max. torque of chuck	N.m	80000	80000	80000
Bed width	mm	1600 (3 slideway)	1600 (3 slideway)	1600 (3 slideway)
Loading capacity	tons	32	32	32
Spindle taper	-	75°	75°	75°
Chuck diameter	mm	1600	1600/1800	1600/1800/2000
Spindle speed range	rpm	0.8-160 (stepless)	0.8-160 (stepless)	0.8-160 (stepless)
Range of longitudinal feed	mm	0.125-48 (18)	0.125-48 (18)	0.125-48 (18)
Range of cross feed	mm	0.063-24 (18)	0.063-24 (18)	0.063-24 (18)
Metric thread	mm	2-40	2-40	2-40
Inch thread	TPI	1-14	1-14	1-14
Module thread	MP	1.5-20	1.5-20	1.5-20
Max. travel of cross slide	mm	725	725	800
Max. travel of top slide	mm	600	600	600
Section of tool shank	mm	70x70	70x70	70x70
Tailstock quill daimeter	mm	300	300	300
Tailstock quill travel	mm	300	300	300
Tailstock quill taper	-	100, 1:7	100, 1:7	100, 1:7
Tailstock rapid feed speed	mm/min	3000	3000	3000
Tailstock quill rapid feed speed	mm/min	664	664	664
Main motor power	kw	75	75	75
Machine length	mm	13577~21577	13577~21577	13577~21577
Machine width	mm	2479	2479	2515
Machine height	mm	2280	2580	2655

Detailed Images

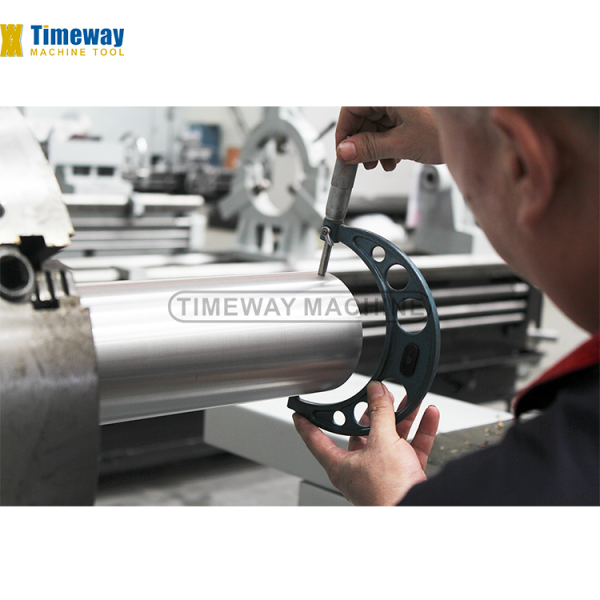

Turning external surface

After the machine meets all geometric accuracy, we will test the bar on the horizontal lathe, and check the actual processing
accuracy (Roundness and cylindricity).

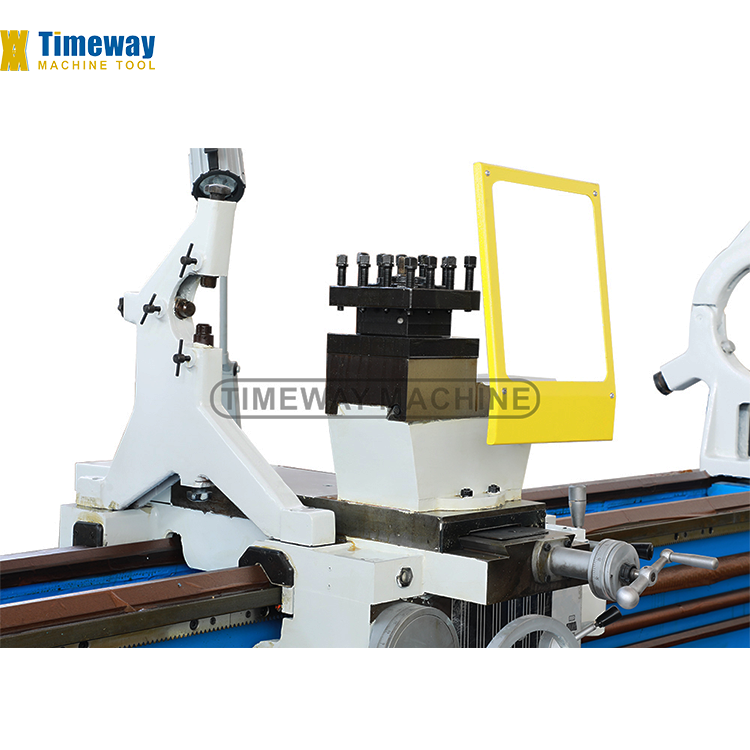

Tool post:

Manual 4-staions tool post comes standard, have strong clamping force and high rigidity.
The guard for the tool-post is optional, meet CE-standard.
The follow rest is suitable for turning thin-length bar, reduce effectively runout of the rotating bar

Turning end surface

After all lathes are making all geometric accuracy test, we also machining the disc parts, and check the verticality of the cross
slide.
