Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Name: Precision Torno Mechanico Horizontal Gapbed Manual Lathe Machine for Industrial Needs
Brand: TIMAC
Price: 8 USD

Quality Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs for sale

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 45 - 1800 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 250

Type : Horizontal

Spindle Motor Power(kW) : 2.8/3.3

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : CM-400x1000, CM-400X1500

Voltage : As Customers' Requirement

Dimension(L*W*H) : 1940x850x1320mm

Weight (KG) : 1550 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : normal

Automatic Grade : manual

Max. Swing Diameter : 410mm

Weight : 1550/1880kg

Power(W) : 2.8/3.3kw

Max. travel of compound rest : 102mm

Max. travel of cross slide : 210mm

After-sales Service Provided : Online support

Max. Swing Diameter (mm) : 410

Certification : CE norms

Condition : New

Spindle Bore(mm) : 52

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining

Showroom Location : Canada, United States, Italy, Germany, Spain, South Africa, Australia

Core Components : Bearing, Pump, Gear, Motor, Engine

Max. Turned Length (mm) : 1500 mm

Year : 2020

Packaging Details : Wooden cases(can be fumigated)

Port : china port

Supply Ability : 500 Set/Sets per Month

Price : $8,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

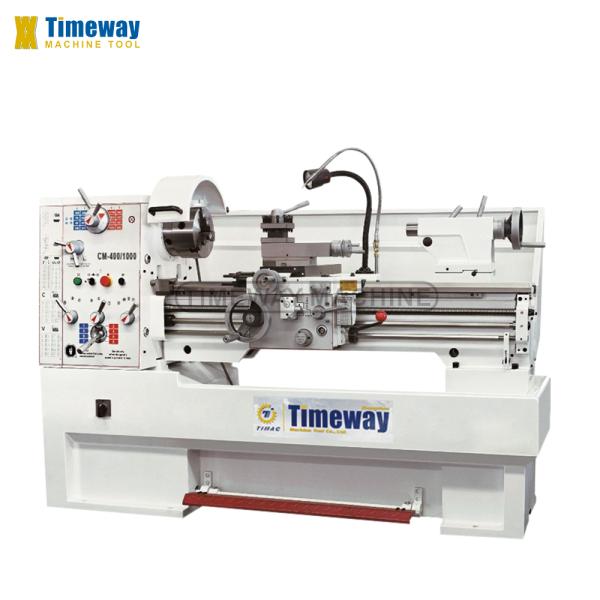

Precision Gap Bed Lathe (CM-400x1000, CM-400x1500)

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Feature:

1. Powerful precision gearhead lathes with cost effective;

2. Need not change any gears you can turn all the metric and inch thread indicating in chart;

3. Three points support for spindle;

4. Clutch in apron for safety and for changing apron feed direction without changing spindle running

direction.

Specification	CM-400
Swing over bed	410mm
Swing over cross slide	255mm
Swing in gap	580mm
Length of gap	250mm
Distance between centers	1000, 1500mm
Width of bed	250mm
Spindle nose	D1-6
Spindle bore	52mm
Taper of spindle bore	No.6 Morse
Range of spindle speed	16 changes 45-1800r/min
Max. travel of compound rest	102mm
Max. travel of cross slide	210mm
Leadscrew pitch	4T.P.I.
Max. Section of tool	20 x 20mm
Longitudinal feeds range	0.05-1.7mm/rev
Cross feeds range	0.025-0.85mm
Metric threads range	39 kinds 0.2-14mm
Inch threads range	45 kinds 2-72T.P.I.
Diametrical pitches range	21 kinds 8-44 D.P.
Module pitches range	18 kinds 0.3-3.5 M.P.
Dia.of tailstock sleeve	50mm
Travel of tailstock sleeve	120mm
Morse taper of tailstock sleeve	No.4 Morse
Cross adjustment	13mm
Power of main motor	2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP
Power of coolant pump	0.1kw (1/8HP), 3PH
Overall Dimension (LxWxH)	1940, 2440x 850x1320mm
Packing size (LxWxH)	2060, 2560x 900x1640mm
Net weight/Gross weight	1550, 1850/1800, 2100kg

Standard accessories:

3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, chasing dial indicator, operation manual(English edition)

Optional accessories:

Digital readout system (DRO), quick change tool post & holders, taper turning attachment

Details image:

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Packaging images:

Company Information

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Team&Certification

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Exhibition&Training

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Package&Transport

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Customer Visited

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

Export Cases

Precision Torno Mechanico Horizontal Gap-bed Manual Lathe Machine for Industrial Needs

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
