400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Name: 400 Swing Energy Saving Gapbed Lathe Machine with Voltage As Customers Requirement
Brand: TIMAC
Price: 35 USD

Quality 400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement for sale

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 16 - 1600 r.p.m

Machining Capacity : Medium Duty

Width of bed (mm) : 360

Type : Horizontal

Spindle Motor Power(kW) : 4/5.5

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : FL-500A FL-500F

Voltage : As Customers' Requirement

Dimension(L*W*H) : as model

Weight (KG) : 1750 KG

Warranty : 1 Year

Key Selling Points : Energy saving

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : normal

Automatic Grade : manual

After-sales Service Provided : Engineers available to service machinery overseas

Lathe machine : Gap bed lathe machine

Max. Swing Diameter : 500mm

Weight : as model

Power(W) : 4kw/5.5kw

Spindle taper : Morse No. 6

Spindle nose : C6

Max. swing in gap : 660mm

Condition : New

Spindle Bore(mm) : 52

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail

Showroom Location : Canada, United States, Italy, Germany, Mexico, South Africa, Australia

Core Components : Bearing, Gear, Motor, Engine

Max. Turned Length (mm) : 1500 mm

Year : 2020

Packaging Details : Wooden case (can be fumigated)

Supply Ability : 500 Set/Sets per Month

Price : $35,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Precision Gap Bed Lathe Machine

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Product Description

Feature:

Powerful precision gearhead lathes with cost effective;
Need not change any gears you can turn all the metric and inch thread indicating in chart;
Three points support for spindle;
Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.

Technical Parameter:

Specification	Unit	FL-360A	FL-400A	FL-500A	FL-600A
		FL-360F	FL-400F	FL-500F	FL-600F
Max. swing over bed	mm	360	400	500	600
Max. swing over cross slide	mm	190	230	330	430
Max. swing in gap	mm	520	560	660	760
Center distance	mm	750, 1000, 1500, 2000
Bed width	mm	360
Spindle hole	mm	52 (optional: 82)
Spindle nose		ISO-C6
Spindle taper		Morse No. 6
Spindle speeds	rpm	A: 40-1400 (9 Steps), F: 16-1600 (12 Steps)
Metric threads range	mm	A: 0.25-14mm (19 Steps), F: 0.25-7mm (17Kinds)
Inch threads range	T.P.I	A: 2-40TPI, F: 0.25-7mm (17Kinds)
Module threads range	M.P	A: 0.5-3.5mm (11 Kinds), F: 0.25-3.5mm (12 Kinds)
Diametric threads range	D.P	A: ---, F: 0.25-3.5mm (12 Kinds)
Longitudinal feed range	mm/rev	0.0832-4.66
Cross feed range	mm/rev	0.048-2.69
Max. travel of top slide	mm	95
Max. travel of cross slide	mm	180	200	250	250
Max. size of tool (W x H)	mm	20 x 20
Tailstock sleeve diameter	mm	65
Tailstock sleeve taper		Morse No. 4
Tailstock sleeve travel	mm	140
Main motor	kw	4	5.5	5.5	7.5
Net weight / Gross weight
750mm	kg	1350/1750	1400/1800	1500/1900	1600/2000
1000mm	kg	1450/1850	1500/1900	1600/2200	1700/2100
1500mm	kg	1600/2000	1650/2050	1750/2150	1900/2300
2000mm	kg	1750/2150	1800/2200	1900/2300	2050/2450
Packing size(LxWxH)	mm	2250, 2450, 2950, 3450 x 1150 x 1750

Standard accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, follow rest, changing gears, dead center, reduction sleeve,

oil gun, Chasing dial indicator, centers, Coolant system, Working light, Foot brake system, Operation manual(English edition).

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

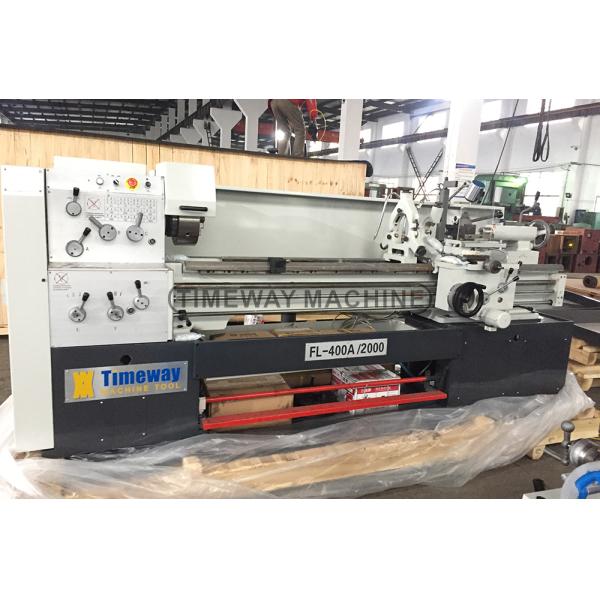

FL-400A & FL-400F

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Factory photos:

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Company Information

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Team&Certification

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Exhibition&Training

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Package&Transport

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Customer Visited

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

Export Cases

400 Swing Energy Saving Gap-bed Lathe Machine with Voltage As Customers' Requirement

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
