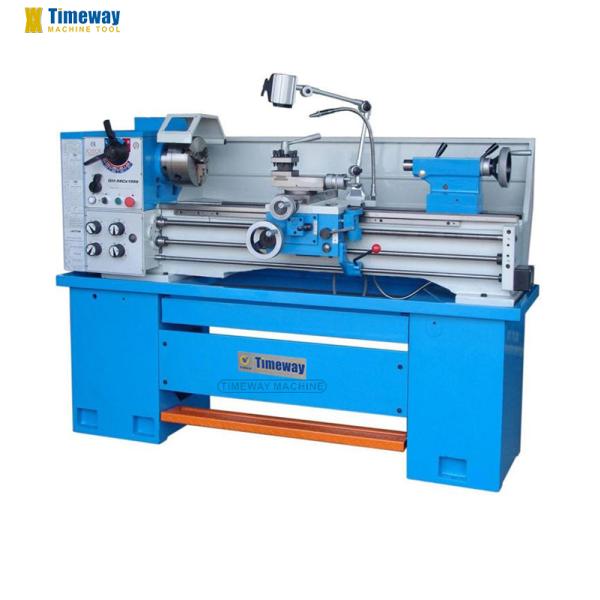

36C Precision Gap Lathe Machine with Max. Turned Length 1000mm and Spindle Bore 51mm

Name: 36C Precision Gap Lathe Machine with Max Turned Length 1000mm and Spindle Bore 51mm
Brand: TIMAC
Price: 3 USD

Quality 36C Precision Gap Lathe Machine with Max. Turned Length 1000mm and Spindle Bore 51mm for sale

Max. Length of Workpiece (mm) : 1000

Range of Spindle Speed(r.p.m) : 70 - 2000 r.p.m

Machining Capacity : Medium Duty

Type : Horizontal

Place of Origin : China

Brand Name : TIMAC

Model Number : GH-36C

Voltage : As request

Dimension(L*W*H) : 1740X760X1520mm

Weight (KG) : 650 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Automatic Grade : Manual

Color : Customized Option

Max. workpiece length : 1000mm

Processing capacity : Medium

Spindle bore : 51mm

Spindle bore taper : MT6#

Spindle speed : 7-2000rpm(8steps)

Max. Swing Diameter : 356mm

Certification : ISO9001; CE

Power : 1.5kw

Condition : New

Showroom Location : Italy, Peru, Indonesia, Mexico, Thailand, Morocco, South Africa, Australia

Spindle Bore(mm) : 51

Max. Turned Length (mm) : 1000 mm

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Core Components : Gear, Motor, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 100 Set/Sets per Month

Price : $3,225.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

36C Precision Gap Lathe Machine with Max. Turned Length 1000mm and Spindle Bore 51mm

* Widely used in general machinery manufacturing, production, single - piece manufacturing and other fields.
* Easy, stable and precisely adjustable speed and feed settings.
* The lathe bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning.
* Adjustable tailstock with fine scale for taper turning

Specification	GH-32C	GH-36C
Swing over bed	330mm	356mm
Swing over gap	450mm	476mm
Swing over cross slide	198mm	224mm
Distance between centers	750mm, 1000mm
Taper of spindle bore	MT6
Spindle nose	D5
Spindle bore	51mm
Number of spindle speeds	8
Range of spindle speeds	70~2000 r.p.m
Range of cross feeds	0.022-0.298mm/r
Range of longitudinal feeds	0.078-1.044mm/r
Range of inch threads	2-1/2~40 T.P.I
Range of metric threads	0.45-10mm
Top Slide travel	76mm
Cross slide travel	160mm
Tailstock quill travel	92mm
Taper of tailstock quill	MT4
Motor	1.5KW
Packing size(LxWxH)	1740/1940X760X1520mm
Net weight	620KG	650KG

· 3 jaw chuck

· 4 jaw chuck

· Dead center

· Face plate

· Steady rest

· Follow rest

· Reduction sleeve

· Oil gun

· Coolant system

· Working light

· Chasing dial indicator

· Quick change tool post
· 2/3 axis DRO

· Living center

· Taper turning attachment

· Chuck guard

· Leadscrew guard

· Tool post guard
