Speed Worktable 1600mm Single Column Vertical Lathe Machine for Workpiece Length 1400mm

Name: Speed Worktable 1600mm Single Column Vertical Lathe Machine for Workpiece Length 1400mm
Brand: TIMAC TIMEWAY
Price: 65 USD

Quality Speed Worktable 1600mm Single Column Vertical Lathe Machine for Workpiece Length 1400mm for sale

Max. Length of Workpiece (mm) : 1400mm

Range of Spindle Speed(r.p.m) : 5 - 160 r.p.m

Machining Capacity : Medium Duty

Type : VERTICAL

Spindle Motor Power(kW) : 30

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Model Number : VL1600E

Voltage : As customer's requirements

Dimension(L*W*H) : 3350*2713*4680 mm

Weight (KG) : 13000 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

max. turning diameter : 1600mm

max. height of workpiece : 1400mm

max. weight of workpiece : 8000kg

worktable diameter : 1400mm

max. cutting force of tool-post : 25KN

max. torque of worktable : 25KN.m

worktable speed : 5-160rpm

tool post feed speed : 0.8-86mm/min

vertical travel of tool post : 800mm

cross travel of tool post : 915mm

Condition : New

Showroom Location : Egypt, Canada, United Kingdom, United States, Italy, France, Brazil, Peru, Indonesia, Pakistan, India, Russia, Chile, UAE, Australia

Core Components : Bearing, Motor, Gearbox, PLC, Engine

Spindle Bore(mm) : Other

Max. Turned Length (mm) : 1600 mm

Year : 2022

Applicable Industries : Manufacturing Plant, Construction works , Other

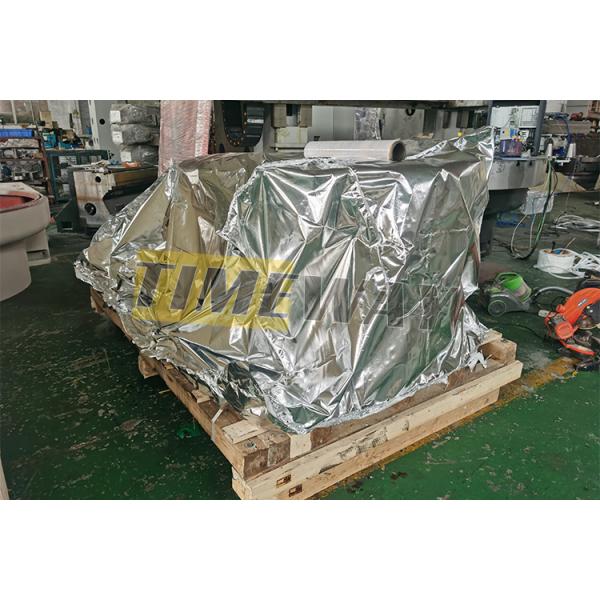

Packaging Details : Wooden cases(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $65,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Products Description

Feature:

1.This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.

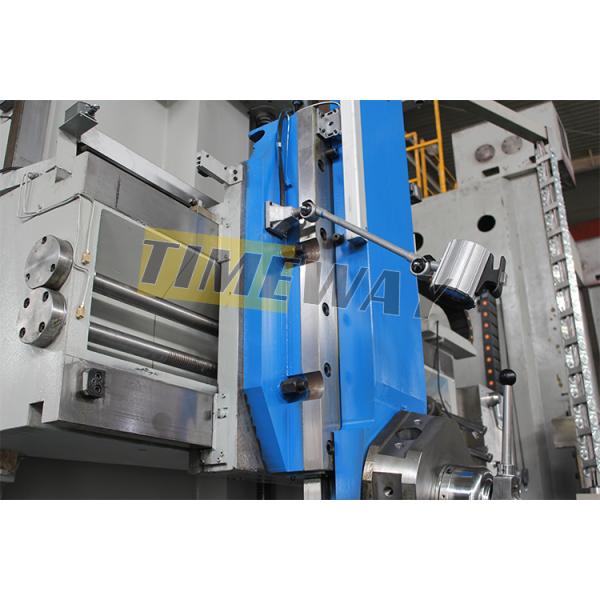

2. The basic part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.

3. Main transmission is driven by AC motor, main drive speed changing with 16 steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.

4. Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.

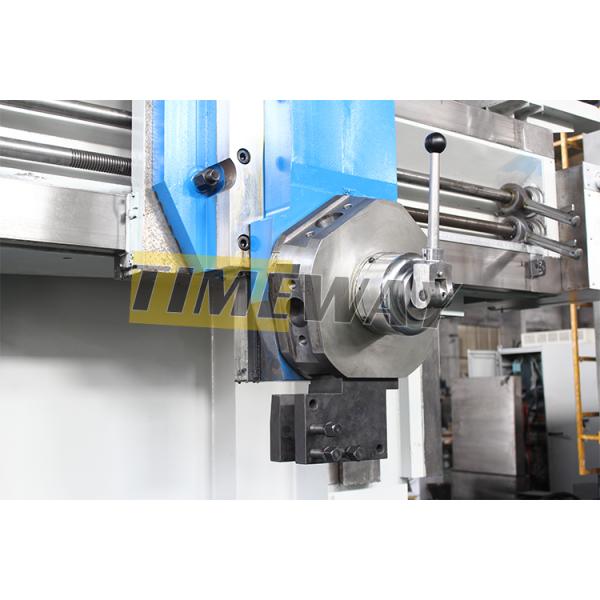

5.Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning. The tool-posts adopt hydraulic balance. Horizontal and Vertical feed of vertical tool-post use the sliding screw driving. The tool-post is driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high strength PTFE soft belt.

6. Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the worktable lubricating.

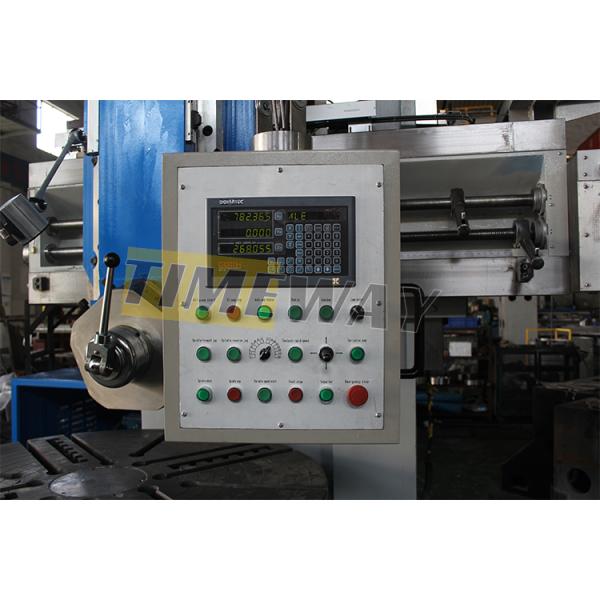

7. The machine uses PLC control, high reliability, electrical wiring in accordance with the process.

8. Beautiful appearance, agreeableness, convenient operation and maintenance.

9. According to customer's special requirement, we can provide digital display device, T-type ram and square ram.

Speed Worktable 1600mm Single Column Vertical Lathe Machine for Workpiece Length 1400mm

Specification	Unit	C5116
Max. Turning diameter	mm	1600
Max. Height of workpiece	mm	1400
Max. Weight of workpiece	kg	8000
Worktable diameter	mm	1400
Max. Cutting force of tool-post	KN	25
Max. Torque of worktable	KN.m	25
Worktable speed	rpm	5-160 (16)
Tool post feed speed	mm/min	0.8-86 (12)
Tool-post rapid feed speed	mm/min	1800
Swiveling angle of tool-post	°	±30
Cross travel of tool-post	mm	915
Vertical travel of tool-post	mm	800
Max. Height of tool shank section	mm	40
Main motor power	kw	30
Beam lifting motor power	kw	2.2
Worktable guideway type	-	rolling
Tool-post guideway type	-	sliding
Machine weight	kg	1300
Machine dimension(L×W×H)	mm	3350×2713×4680
