2021 Horizontal Tornos For Industry Field Max. rotating diameter over carriage 350mm

Name: 2021 Horizontal Tornos For Industry Field Max rotating diameter over carriage 350mm
Brand: Timac
Price: 30 USD

Quality 2021 Horizontal Tornos For Industry Field Max. rotating diameter over carriage 350mm for sale

Max. Length of Workpiece (mm) : 4000

Range of Spindle Speed(r.p.m) : 7.5 - 1000 r.p.m

Machining Capacity : Heavy Duty

Width of bed (mm) : 550

Type : Horizontal

Spindle Motor Power(kW) : 11

Place of Origin : Henan, China

Brand Name : Timac

Model Number : AL-630Bx4M

Voltage : As customer's request

Dimension(L*W*H) : 6275x1393x1537 mm

Weight (KG) : 6300 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max. rotating diameter : 630 mm

Max. rotating diameter over carriage : 350 mm

Max. weight of workpiece : 2000 kg

Spindle nose : C11

Spindle taper : Metric 120

Tailstock quill taper : MT5

Tailstock quill diameter : 100 mm

Tailstock quill travel : 250 mm

Tornos color : Customized

Tornos structure : Horizontal type

Condition : New

Spindle Bore(mm) : 100

Applicable Industries : Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Energy & Mining

Showroom Location : Canada, United States, Italy, France, Germany, Russia, Australia

Core Components : Bearing, Gear, Motor, Gearbox, Pressure vessel

Max. Turned Length (mm) : 3850 mm

Year : 2021

Packaging Details : Wooden cases (fumigated)

Port : Tianjin or Shanghai or Qingdao Port

Supply Ability : 300 Set/Sets per Month

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

2021 Horizontal Tornos For Industry Field Max. rotating diameter over carriage 350mm

Features:

* The horizontal tornos are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts.They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
* Mature structure: the tornos is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speedand powerful cutting.
* Stable performance: Tornos is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
* Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state,thereby avoiding the occurrence of low-speed crawling.
* High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
* High torsion-resistant flat bed, high-quality cast iron carefully manufactured, and induction on the rail surface quenching precision treatment, by the sticky PTFE conductive rails and precision scraping by hand.
* Spindle standard through the hole for the Φ100mm large hole; Large speed range with 18 speeds for machining a wide variety of workpieces.
* Adopt split type bed structure, the guide rail surface adopt double V-flat rails, 550mm bed width and the bearing capacity can be to 2000kg.

Specifications	Unit	AL-630B	AL-800B	AL-940B
Capacity
Swing over bed	mm	630	800	940
Swing over carriage	mm	350	520	660
Max. length of workpiece	mm	500/1000/1500/2000/3000/4000/5000/6000/8000/ 10000
Max. turning length	mm	600/850/1350/1850/2850/3850/4850/5850/7850/9850
Swing over gap (optional)	mm	830	1000	1140
Effective width of gap (optional)	mm	300	300	300
Span of guideway	mm	550	550	550
Max. weight of workpiece	kg	2000	2000	2000
Spindle
Spindle nose		C11	C11	C11
Spindle bore	mm	100	100	100
Taper hole of spindle		Metric 120	Metric 120	Metric 120
Range of spindle speeds	r/min	7.5-1000	6-800	6-800
No. of spindle speeds	steps	18	18	18
Feed
Longitudinal feed speed	mm/r	0.1-24.32 (64)	0.1-24.32 (64)	0.1-24.32 (64)
Cross feed speed	mm/r	0.05-12.16 (64)	0.05-12.16 (64)	0.05-12.16 (64)
Screw pitch of leadcsrew	mm	12	12	12
No. and range of metric thread	mm	1-240 (50)	1-240 (50)	1-240 (50)
No. and range of inch thread		14-1 (26)	14-1 (26)	14-1 (26)
No. and range of module thread	mm	0.5-120 (53)	0.5-120 (53)	0.5-120 (53)
No. and range of dia. thread		28-1 (24)	28-1 (24)	28-1 (24)
Rapid traverse speed	mm/min	4000	4000	4000
Tool post
Max. travel of cross slide	mm	440	540	570
Max. travel of top slide	mm	200	200	200
Section of tool shank	mm	32x32	32x32	32x32
Tailstock
Dia. of tailstock quill	mm	100	100	100
Travel of tailstock quill	mm	250	250	250
Taper hole of tailstock quill		MT5	MT5	MT5
Others
Main motor power	kw	11	11	11
Length	mm	2958/3275/3725/4225/5225/6275/7355/8355/10275/ 12275
Width	mm	1393	1473	1430
Height	mm	1537	1622	1690

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

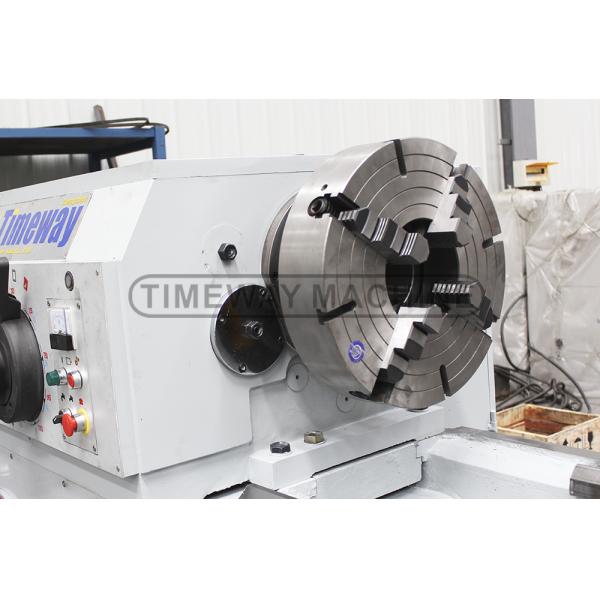

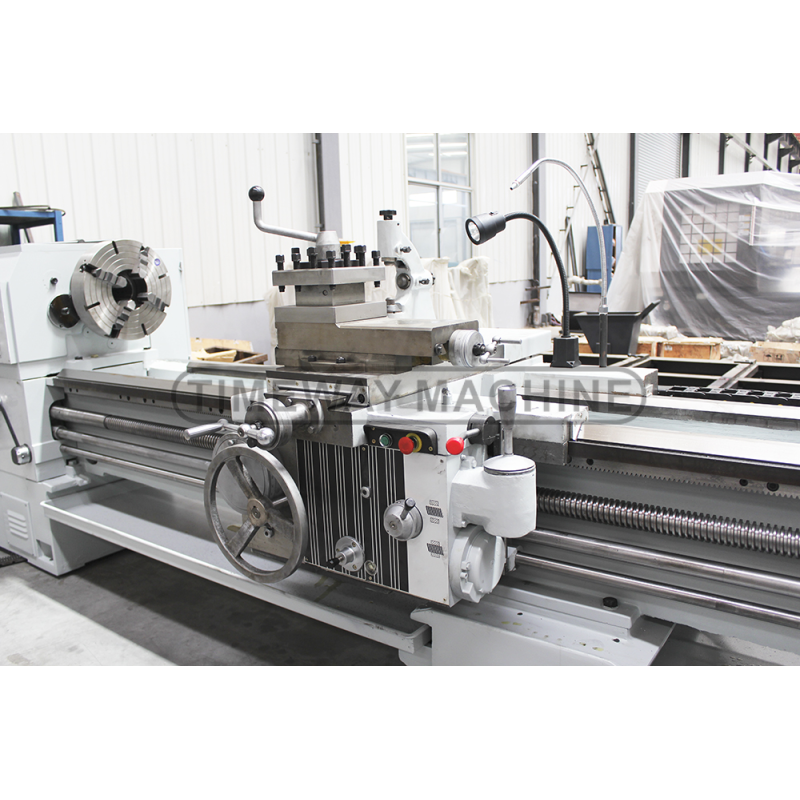

2021 Horizontal Tornos For Industry Field Max. rotating diameter over carriage 350mm Images
