Max. Work Length Ground Between Centers 1600mm QM-600C Crankshaft Grinding Machine

Name: Max Work Length Ground Between Centers 1600mm QM600C Crankshaft Grinding Machine
Brand: TIMEWAY
Price: 42 USD

Quality Max. Work Length Ground Between Centers 1600mm QM-600C Crankshaft Grinding Machine for sale

Type : Universal

CNC or Not : Normal

Condition : New

Wheel Size(mm) : 900x32x305

Year : 2022

Place of Origin : China

Brand Name : TIMEWAY

Voltage : As customer's requirements

Dimension(L*W*H) : 4166x2037x1584mm

Weight (KG) : 6000

Power (kW) : 9.82

Warranty : 1 Year

Key Selling Points : High-accuracy

Showroom Location : India, UAE, Spain, South Korea, Egypt, Russia, Canada, United States, Peru, Thailand, Chile, Pakistan, Ukraine, Brazil, United Kingdom, Indonesia

Applicable Industries : Construction works , Retail

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Other

Max. swing dia. over table : 600x1600mm

Throw of crankshaft : 110mm

Max. work length gound: between centers : 1600mm

Max. loading capacity : 120kg

Center height : 300mm

Work speed : 25, 45, 95rpm

Wheel spindle speed : 740, 890rpm

Grinding wheel size : 900x32x305mm

Total motor power : 9.82kw

Color : Client's Request

Packaging Details : Wooden cases(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $42,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Max. Work Length Ground Between Centers 1600mm QM-600C Crankshaft Grinding Machine

The crankshaft grinding machine is used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crank-pins of crankshaft, also used in large engineering machinery and diesel engines for ships to grind crankshaft.

*QM-600Cx16, QM-600Cx18*
Work spindle speed adjustable between 3 speeds by simply changing belts.
Cross swallow tailed chucks used in workstock and tailstock.
Friction clutch used in the headstock transmission chain for easy adjustment.
Single layer table, with an oblique angle of 10 degree; table traverse operated both by hand and by power.
Rapid approach and withdrawal of wheel carriage effected by hydraulic means.
The wheel spindle being of 80mm in diameter has good rigidity and strength.
The rolling guideways employed for movement of wheel carriage.
Lubrication of table and wheel carriage operated automatically bu oil pump circulation.

*QM-600x30*
Table traverse operated either by hand or by power; rapid approach & withdrawal of wheel carriage effected by hydraulic means.
Wheel spindle rotation controlled by a hydraulic & mechanical interlocking mechanism.
Workpiece rotation driven by servo motors controlled bu an electrical synchronous system.
The hydrostatic & dynamic wheel spindle driven by pulleys, equipped with separated oil system, separated lubrication device, special oil tank, and air cooling device as well.
The machine equipped with an independent electrical cabinet, coolant system and magnetic separator.
The machine has an independent coolant device attached with a magnetic separator filtering the dirt efficiently.

Specification	Unit	QM-600Cx16	QM-600Cx18	QM-600x30
Max. work swing dia. x Max. length	mm	600x1600	600x1800	600x3000
Max. swing dia. over table	mm	600	600	600
Work dia. ground with steady rest	mm	30-110	300-110	30-200
Throw of crankshaft	mm	110	110	120
Max. work length ground: between centers	mm	1600	1800	3000
Max. work weight	kg	120	120	1000
Center height	mm	300	300	320
Work speed	rpm	25,45,95	25,45,95	25-95(stepless)
Max. cross movement	mm	185	185	185
Wheel-head rapid approach & withdrawal	mm	100	100	260
Wheel spindle speed	rpm	740,890	740,890	740,890
Wheel peripheral speed	m/s	25.6-35	25.6-35	35
Grinding wheel size	kw	900x32x305	900x32x305	900x65x305
Table travel/turn of handwheel coarse	mm/r	5.88	5.88	5.88
Table travel/turn of handwheel fine	mm/r	1.68	1.68	1.68
Total motor power	kw	9.82	9.82	35
Machine dimensions(LxMxH)	mm	4166x2037x1584	4166x2037x1584	9650x2400x1584
Machine weight	kg	6000	6500	14500
Ovality	mm	0.005	0.005	0.005
Cylindricity	mm	0.01	0.01	0.012
Roughness(external)	um	Ra0.32	Ra0.32	Ra0.32
Roughness(end)	um	Ra0.63	Ra0.63	Ra0.63

· 3-jaw chuck

· Wheel adopter

· Grinding wheels & wheel extractor

· Steady rest

· Driving dog

· Wheel dresser

· Wheel balancing arbor

· Vertical aligning stand

· Horizontal aligning stand

· End dresser

· Diamond pen

· Digital indicator
· Centering device
· Wheel balancing stand

· Hanging measuring device

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

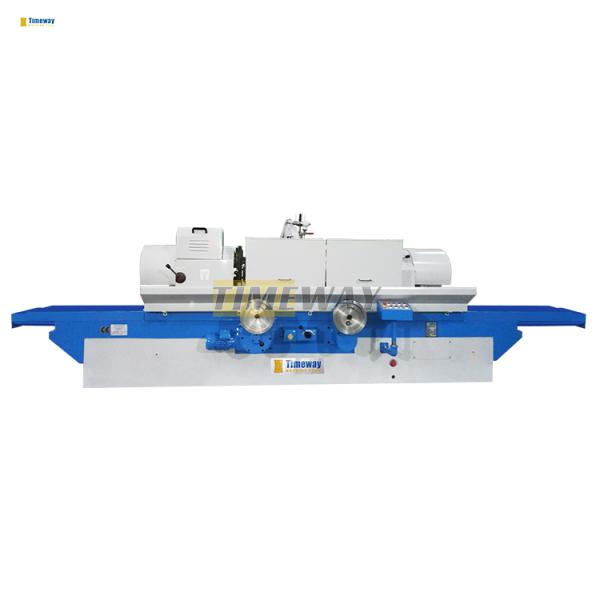

Max. Work Length Ground Between Centers 1600mm QM-600C Crankshaft Grinding Machine Images
