Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing

Product Categories
Zhengzhou Timeway Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

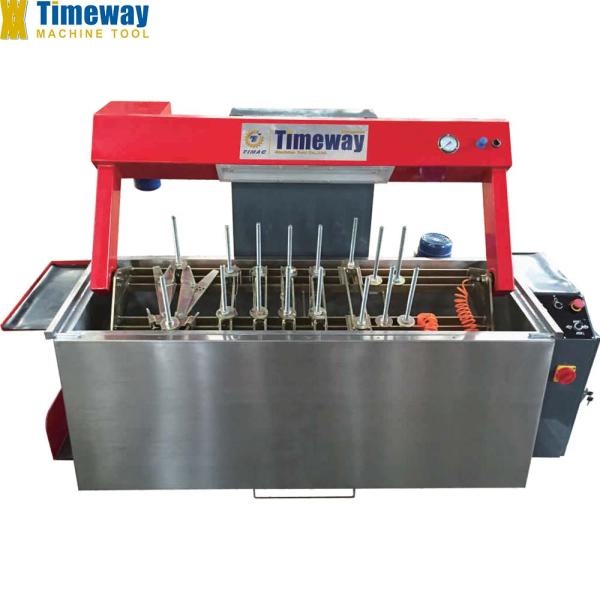

Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing

Place of Origin : Henan, China

Brand Name : TIMEWAY

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2024

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Gear

Warranty : 1 Year

Key Selling Points : Competitive Price

Weight (KG) : 800

Applicable Industries : Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

Showroom Location : Canada, United Kingdom, Italy, Germany, Viet Nam, Indonesia, India, Mexico, Russia, Thailand, Kenya, Bangladesh, Tajikistan, Japan, Australia

Product name : Cylinder Head Pressure Tester

Max.length of cylinder head : 1550mm

Max.width of cylinder head : 500mm

Max.height of cylinder head : 550mm

Heating elements power : 2x5.5kw

Hydraulic motor power : 0.75kw

Workpiece size : 1500x600x800mm

Vertical lifting speed : 60mm/sec

Power supply : 3x380V-AC-50Hz

Machine weight : 800kg

Price : $5,099.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping
You can click on the picture to view the products you are interested in
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Product Description
Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
360° Electric powered roll-over fixture.
Hydraulic cradle lift for easy positioning of heavy cylinder heads.
Stainless steel tank with heat barrier.
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing

Accessories：

Cylinder head holding flat parallels
Clamping system
Rubber washer
Plastic plate
Pipe & connector

Specification
SPECIFICATION
UNIT
HP60150
Max.length of cylinder head
mm
1550
Max.width of cylinder head
mm
500
Max.height of cylinder head
mm
550
Dimensions inside the sink
mm
1846x880x900
Workpiece size
mm
1500x600x800
Heater
kw
2x5.5
Hydraulic oil pump motor
kw
0.75
Geared motor
kw
0.75
Fliping speed
rpm
4.5
Lifting speed
mm/sec
60
Temperature range
°C
0-90
Power supply
-
3x380V-AC-50Hz
Workpiece loading capacity
kg
450
Machine weight
kg
800
Machine dimensions (LxWxH)
mm
3400x1300x1950
Client feedback
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Factory Display：
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
