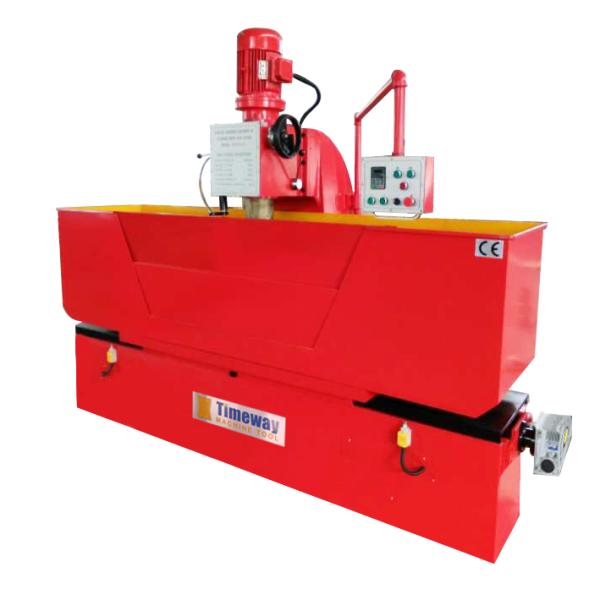

Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors

Name: Cylinder Head and Block Surface Grinding MachineCNC Rectificadora de Bloque Motors
Brand: TIMAC TIMEAY
Price: 10 USD

Quality Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors for sale

Type : Cylinder block surface grinding machine

CNC or Not : Normal

Condition : New

Year : latest day

Place of Origin : Henan, China

Brand Name : TIMAC TIMEAY

Voltage : 220/380V

Dimension(L*W*H) : 2650x1050x2100 mm

Weight (KG) : 2300

Power (kW) : 1.5

Warranty : 1 Year

Key Selling Points : High-accuracy

Showroom Location : Mexico, South Africa, Malaysia, Kazakhstan, Nigeria, Tajikistan, Chile, Ukraine, Brazil

Applicable Industries : Manufacturing Plant, Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Bearing, Engine, Gear, Pressure vessel, Gearbox, PLC, Pump

After-sales Service : Engineers available to service machinery overseas

Product name : Cylinder block surface grinding machine

Max. Grinding Length : 1300 mm

Power(W) : 1.5/2.4 kw

Max. Grinding Diameter : 350 mm

After-sales Service Provided : Online support

After Warranty Service : 1 year

Certification : CE ISO

Name : cylinder grinding machine for engine

Keywords : rectificadora para vlvulas

Packaging Details : Wooden case(can be fumigated)

Port : China port

Supply Ability : 200 Set/Sets per Month

Price : $10,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors

Summary

1. The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).

2.The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material.

Product Description

Cylinder Block Surface Grinding Machine

Feature：

1.The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.

2.Pulley adopt with unloading to make the main spindle only usutain twisting moment.

3.The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the potentiometer whorl twists and to gain right feed speed, easy to operate reliable.

Specification

Specification	3M9735Ax130	3M9735Ax150
Working table size	1300x500mm	1500x500 mm
Max. length of grinding	1300 mm	1500 mm
Max. width of grinding	350 mm	350 mm
Max height of grinding	600 mm	800 mm
Grinding wheel disk diameter	360 mm	360 mm
Spindle speed	1400/700 r/min	1400/700 r/min
Power of the main motor	1.5/2.4 kw	1.5/2.4kw
N.W. / G.W.	2800 / 3100 kg	3000 / 3300 kg

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

Cylinder Head and Block Surface Grinding Machine/CNC Rectificadora de Bloque Motors Images
