600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications

Name: 600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications
Brand: TIMAC
Price: 50 USD

Quality 600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications for sale

Place of Origin : Henan, China

Brand Name : TIMAC

Condition : New

Machine Type : pneumatic press

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Gearbox, Motor, Pressure vessel

Voltage : 3 Phase 380V 10%/50-60Hz

Power : 55kw

Dimension(L*W*H) : 4694x4320x6060mm

Warranty : 1 Year

Key Selling Points : High Productivity

Showroom Location : Peru, India, Mexico, Thailand, Colombia, Algeria, Sri Lanka

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Other

Weight (KG) : 22000

Nominal capacity : 6300 KN

Slide stroke : 600 mm

Number of strokes per minute : 11

Worktable size : 920x820 mm

Space for installing die : 470mm

After Warranty Service : Online support

Local Service Location : Colombia

Weight : 38513 kg

Certification : CE ISO9001

Energy : 40 KJ

Packaging Details : Soft package or According to customer's require

Port : China Port

Supply Ability : 500 Set/Sets per Year

Price : $50,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications

The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them,
model JA-53-300 has won the silver medal in china.

Specification	Unit	FSP-400	FSP-630	FSP-1000C	FSP-1000F
Nominal capacity	KN	4000	6300	10000	10000
Energy	KJ	40	80	160	160
Slide stroke	mm	500	600	700	700
Strokes per minute	Min-1	1114	11	10	10
Space for installing die	mm	400	470	500	500
Bed dimension	mm	820x730	920x820	1200x1000	1200x1000
Bottom of slide	mm	636x636	760x700	1190x800	1190x800
Overall dimensions	mm	3200x2812x5165	4694x4320x6060	4400x6062x7290	4400x5240x7300
Main motor power	kw	30	55	90	90
Total weight	kw	22000	38513	82000	76155

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

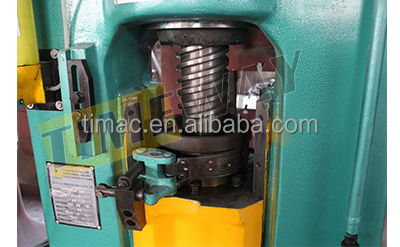

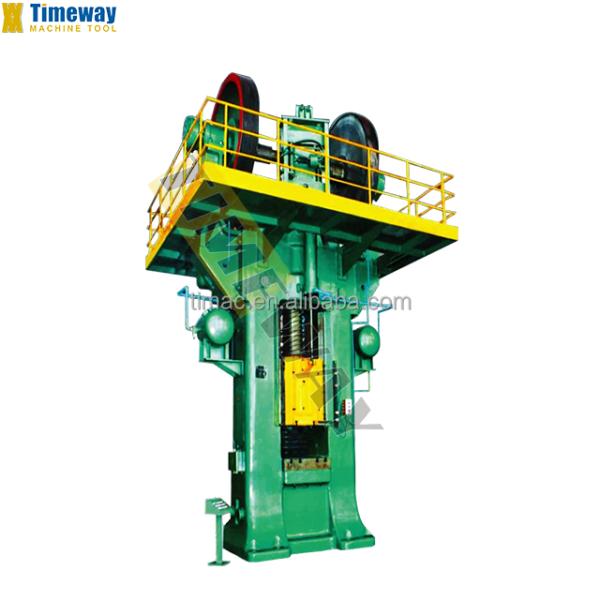

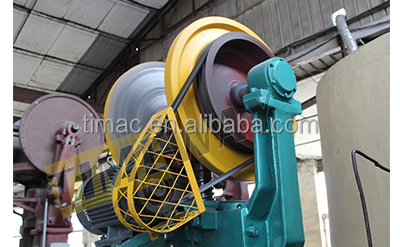

600mm Slide Stroke Pneumatic Friction Screw Forging Press for Various Applications Images
