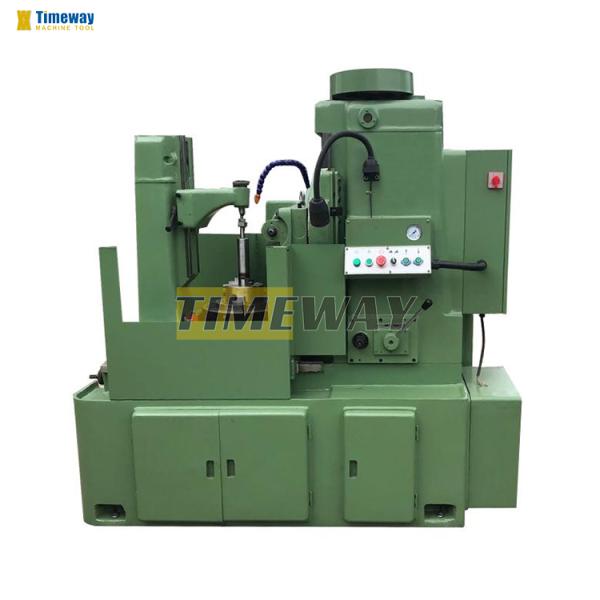

GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance

Place of Origin : China

Brand Name : TIMEWAY

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Motor

Warranty : 1 Year, 1year

Key Selling Points : High Productivity

Weight (KG) : 2600

Applicable Industries : Machinery Repair Shops, Other

Showroom Location : United States, Italy, Brazil, Peru, Mexico, Russia, Thailand, Kenya, Chile, UAE

Product name : VERTICAL GEAR HOBBING MACHINE

Model : GHM500-1

Type : Easy Operate

After-sales Service : Online 7/12

COLOR : Customer Choose

Voltage : Customer's Requirement

Net weight : 2600kg

Precision : High Precision

Main power : 3kw

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $13,660.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
Specification
Unit
GHM500-1
Max. cutting modulus (steel)
mm
5
Max. cutting modulus (cast iron)
mm
6
Max. dia. of processed spur gear
mm
350
Max. dia. of processed cylindrical helical gar
mm
370
Max. vertical stroke length of hob
mm
460
Max. hobbing length
mm
440
Hob spindle to worktable
m/min
320
Distance between center lines
mm
25
Dia. of interchangeable hob spindle
m/min
22,27,32
Max. dia. of hob
mm/str
120
Table hole dia.
mm/gra
60
Dia. of workpiece spindle
mm/min
30
Spindle speed of hob (steps/range)
mm/gra
8; 50-275
Main motor power
kw
3
Overall dimensions (LxWxH)
mm
1825x935x1730
Machine weight
kg
2600
Why Choose Us
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
GHM500-1 Vertical Gear Hobbing Machine High Productivity and Performance
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
