Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore

Max. Length of Workpiece (mm) : 3000

Machining Capacity : Heavy Duty

Type : Horizontal

Spindle Motor Power(kW) : 15

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : Q-280F

Weight (KG) : 7300 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Oil Country Lathe

Machine Type : Horizontal Normal Lathe

Keyword : Turning Machine

Function : Machining Metal

Precision : High Precision

Processing : Metal Workpiece

Distance between centers : 1000/1500/2000/3000mm

Swing over bed : 800mm

Swing over cross slide : 480mm

Pipe threading range : 70-275mm

Condition : New

Applicable Industries : Building Material Shops, Construction works , Energy & Mining

Showroom Location : Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia

Core Components : Pump, Gear, Motor

Spindle Bore(mm) : 280

Max. Turned Length (mm) : 3000 mm

Year : 2024

Price : $36,600.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping
You can click on the picture to view the products you are interested in
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Products Description
Features:
1.This machine was designed for use in often harsh and demanding environment associated with OCTG production and integrates decadesof experience.

2.Lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable performance;guide-way width (550/600/650mm), good rigidity, anti-vibration ability; Processed by ultrasonic frequency hardening and machined by theimported guideway rail grinding machine, to ensure a long service life.

3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.

4.Hardened and precision ground spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable.

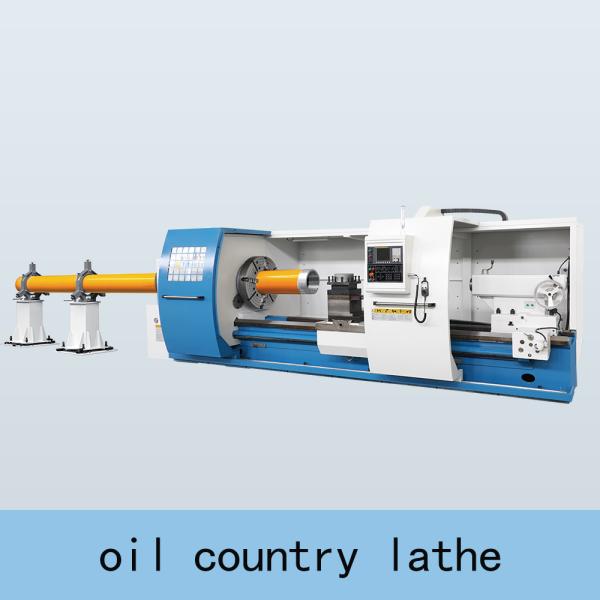

5.Pipe threading lathe with large spindle bore and double hollow chuck on both ends of spindle for long pipes.

6.Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.

7.Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.

8.Spindle driven by variable frequency motor with interver, realize manual 2steps speed change, within steps variable speed (stepless).

9.Wide spindle speed range for choosing reasonable speed, various steps feed speed for meeting different processing process and threads cutting.

10.The lathe machine is mainly developed for the turning of oil field pipe thread, it is not only suitable for all kinds of pipe
thread turning, but also can be used as ordinary lathe, suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face. Especially for multi-species, small batch of turning processing.
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
· Big bore chuck (Front & Rear)
· Dead center
· 4-station tool post
· Taper turning attachment
· Cooling system
· Work lamp
· Chip collecting plate
· General tools
· Leveling wedge and bolts
· Operation manual (English)
· 2 or 3-axis DRO
· Chuck guard
· Too-post guard
· Rear splash guard
· Rear support for long pipe

Horizontal Normal Lathe Q-280F Heavy Duty Pipe Threading Tool with Large Spindle Bore
Specification
Unit
Q-280F
Swing over bed
mm
Φ800
Swing over cross slide
mm
Φ480
Distance between centers
mm
1000/1500/2000/3000
Pipe threading range
mm
Φ70-275
Width of bed way
mm
600 (Opt. 650)
Spindle bore
mm
Φ280
Spindle speed steps
-
VF.2steps
Spindle speed range
rpm
20-100,100-300
Chuck size
mm
Φ780
Chuck type
-
4-jaw manual
Turret type
-
Manual 4 position
Tool shank
mm
40x40
X axis travel
mm
520
Z axis travel
mm
800/1300/1800/2800
X axis rapid traverse speed
mm/min
1870
Z axis rapid traverse speed
mm/min
3740
X axis feed grade/range
mm/r
32/0.095-14
Z axis feed grade/range
mm/r
32/0.095-14
Tailstock quill diameter
mm
Φ140
Tailstock quill taper
-
MT6
Tailstock quill travel
mm
250
Main spindle motor power
kw
15
Rapid traverse motor power
kw
1.5
Coolant pump motor power
kw
0.125
Metric thread grade/range
mm
22 / 1-15
Inch thread grade/range
T.P.I
26 / 14-1
Machine length
mm
3700/4200/4700/5700
Machine width/machine height
mm
1700x1600
Machine weight
kg
7300/8000/8700/9700
