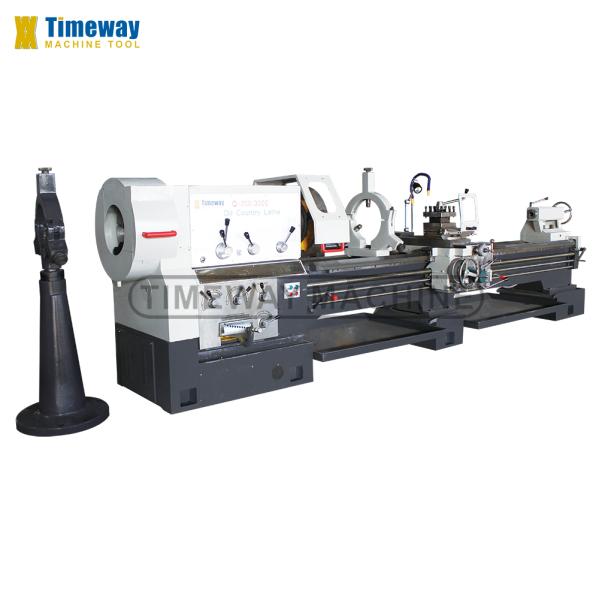

11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications

Max. Length of Workpiece (mm) : 1500

Range of Spindle Speed(r.p.m) : 20 - 480 r.p.m

Machining Capacity : Light Duty

Width of bed (mm) : 193

Type : Horizontal

Spindle Motor Power(kW) : 11

Place of Origin : China

Model Number : Q-200

Dimension(L*W*H) : 3700 1550 1550

Weight (KG) : 4300 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Hot Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Horizontal Metal Turning Lathe Machine

Product Name : Manual Metal Lathe Machine

Keyword : Universal Metal Lathe

After-sales Service Provided : Online Services

Precision : High Precision High Accuracy

Processing : Metal Workpiece

Certification : CE

spindle bore : 200mm

max. swing over bed : 630mm

Distance between centers : 1500mm

Condition : New

Showroom Location : Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia

Spindle Bore(mm) : 200

Max. Turned Length (mm) : 1500 mm

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Core Components : Other

Price : $22,666.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications

Specification

Max. swing over bed	mm	630/800
Max. swing over cross slide	mm	340/520
Distance between centers	mm	1500/3000
Pipe threading range	mm	50-193
Bed width	mm	550
X-axis travel	mm	320/420
Z-axis travel	mm	1350/2850
Loading capacity	kg	3000
Spindle bore	mm	200
Spindle speed steps	steps	CCW: 12/CW: 9
Spindle speed	rpm	20-480
Chuck size	mm	520
Chuck type (manual)	-	4-jaw
Turret type (manual)	-	V4
Tool shank size	mm	32x32
X-axis feed range (steps)	mm/r	0.02-0.45 (22)
X-axis rapid feed speed	mm/min	2300
Z-axis feed range (steps)	mm/r	0.07-1.33 (26)
Z-axis rapid feed speed	mm/min	4000
No. of Metric thread and range	mm	1-14 (24)
No. of Inch thread and range	TPI	28-2 (40)
Tailstock quill diameter	mm	100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main motor power	kw	11
Rapid feed motor power	kw	0.3
Coolant motor power	kw	0.125
Machine dimensions (LxWxH)	mm	3700/5200x1550x1550
Machine weight	kg	4300/5500

STANDARD ACCESSORIES:

Big bore chuck (Front & Rear), Dead center, 4-station tool post, General tools, Leveling wedge and bolts, Operation manual (English), etc.

OPTIONAL ACCESSORIES:

2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe.

One-Stop Shopping

You can click on the picture to view the products you are interested in

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
