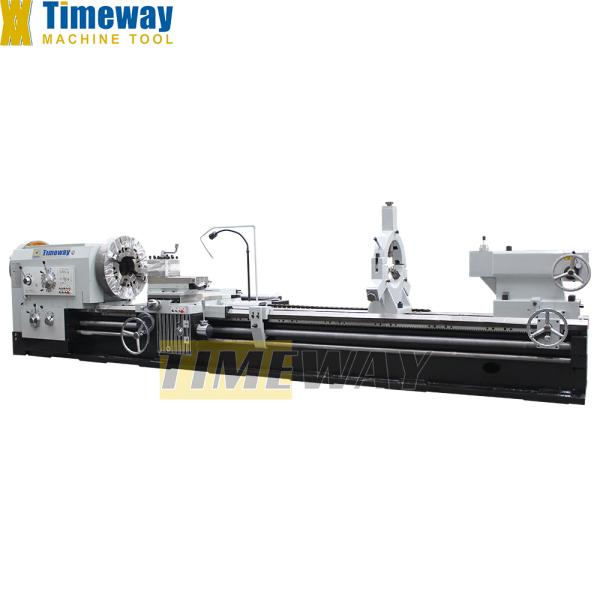

280mm Spindle Bore Pipe Threading Torno with Stable Performance and Mature Structure

Name: 280mm Spindle Bore Pipe Threading Torno with Stable Performance and Mature Structure
Brand: TIMEWAY
Price: 36 USD

Quality 280mm Spindle Bore Pipe Threading Torno with Stable Performance and Mature Structure for sale

Max. Length of Workpiece (mm) : 3000

Machining Capacity : Medium Duty

Type : Horizontal

Spindle Motor Power(kW) : 22

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : Q-280

Weight (KG) : 10000 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : Oil Country Lathe

Machine Type : Horizontal Normal Lathe

Keyword : Turning Machine

Function : Machining Metal

Precision : High Precision

Processing : Metal Workpiece

Distance between centers : 1500/3000mm

Max. swing over bed : 1000mm

Max. swing over cross slide : 610mm

Bed width : 755mm

Condition : New

Applicable Industries : Building Material Shops, Construction works , Energy & Mining

Showroom Location : Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia

Core Components : Pump, Gear, Motor

Spindle Bore(mm) : 280

Max. Turned Length (mm) : 3000 mm

Year : 2024

Price : $36,600.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

280mm Spindle Bore Pipe Threading Torno with Stable Performance and Mature Structure

Products Description

Features:
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.

2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.

3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.

4.Adopts premium cast-iron with hardened and ground guideway, 755mm width bed improves enough rigidity and large loading capacity (6000kg), to meet heavy duty cutting for customers.

5.Simple and clear operating handles on the spindle box & feed-box make easier gear shift and speed change.

Specification	Unit	Q-280
Max. swing over bed	mm	Φ1000
Max. swing over cross slide	mm	Φ610
Distance between centers	mm	1500/3000
Pipe threading range	mm	Φ130-270
Bed width	mm	755
X axis travel	mm	520
Z axis travel	mm	1350/2850
Max. load capacity	kg	6000
Spindle bore	mm	Φ280
Spindle speed steps	steps	12
Spindle speed	rpm	16-380
Chuck size	mm	Φ800
Chuck type	-	4-jaw manual
Turret type(manual)	-	V4
Tool shank size	mm	45x45
X-axis feed range(steps)	mm/r	0.05-1.5(40)
X-axis rapid feed	mm/min	1870
Z-axis feed range(steps)	mm/r	0.1-3(40)
Z-axis rapid feed	mm/min	3740
No. of Metric thread and range	mm	1-30(30)
No. of Inch thread and range	TPI	1-28(27)
Tailstock quill diameter	mm	Φ140
Tailstock quill taper	-	MT6
Tailstock quill travel	mm	300
Main motor power	kw	22
Rapid motor power	kw	1.5
Coolant motor power	kw	0.125
Machine dimensions (LxWxH)	mm	4800/6400x2100x1600
Machine weight	kg	10000/11500

· Big bore chuck (Front & Rear)
· Dead center
· 4-station tool post
· Taper turning attachment
· Cooling system
· Work lamp

· Chip collecting plate
· General tools
· Leveling wedge and bolts
· Operation manual (English)

· 2 or 3-axis DRO
· Chuck guard

· Too-post guard

· Rear splash guard
· Rear support for long pipe
