CNC Pipe Threading Oil Country Lathe Pipe Thread CNC Lathe for Pipe Threading

Name: CNC Pipe Threading Oil Country Lathe Pipe Thread CNC Lathe for Pipe Threading
Brand: Timeway
Price: 35 USD

Quality CNC Pipe Threading Oil Country Lathe Pipe Thread CNC Lathe for Pipe Threading for sale

Place of Origin : Henan, China

Brand Name : Timeway

Model Number : QK-280

Price : $35,426.00/sets >=1 sets

Type : Horizontal

Max. Length of Workpiece (mm) : 1000, 1500, 2000, 3000, 4000

Structure : Flat Bed Lathe

Machining Capacity : Medium Duty

Max. Weight of Workpiece(kg) : 1800

Width of bed (mm) : 400

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 1500 mm

Travel (Z Axis)(mm) : 500 mm

Positioning Accuracy (mm) : ±0.001

Repeatability (X/Y/Z) (mm) : ±0.002

Dimension(L*W*H) : 4800*2520*2120

Voltage : Optional

CNC Control System : FANUC

Tool Post Stations : 4

Weight (KG) : 9000

Warranty : 1 Year

Key Selling Points : Multifunctional, Competitive Price, High Safety Level, High-accuracy, Sustainable, High Productivity, Long Service Life, Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Range of Spindle Speed(r.p.m) : 5 - 400 r.p.m

Travel (Y Axis)(mm) : 0 mm

Spindle Taper : ISO40, BT40

Cutting torque : 1985 N.m

Rapid Feed Speed(mm/min) : 0 - 4 mm/min

Feed Speed(mm/min) : 0 - 5 mm/min

Min. Time of Tool Change(s) : 6

CNC or Not : CNC Lathe Machine

Machine Type : Turning

Product name : Horizontal Turning Machine

Keyword : Cnc Metal Lathe Machine

Precision : High Precision Machine

Color : Customer Optional

Brand : Timeway

Control system : SIEMENS GSK FANUC (optional)

Max. Swing Over Bed : 260mm

Distance between centers : 2000

MOQ : 1 set

Contact Now

CNC Pipe Threading Oil Country Lathe Pipe Thread CNC Lathe for Pipe Threading

Products Description

Applications of the CNC oil country lathe:

The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.

››››› The lathe is equipped with a taper turning attachment which can work out long taper.

››››› The lathe is equipped with double chucks which can powerful clamp long parts.

››››› The lathe is equipped with rear support which can auxiliary support longer parts.

√ FANUC/SIEMENS/GSK CNC system

√ Big bore chuck (Front & Rear)

√ Dead centers

√ 4-station electric tool-post

√ Cooling system

√ Work lamp

√ Pilot lamp

√ Semi-closed guard

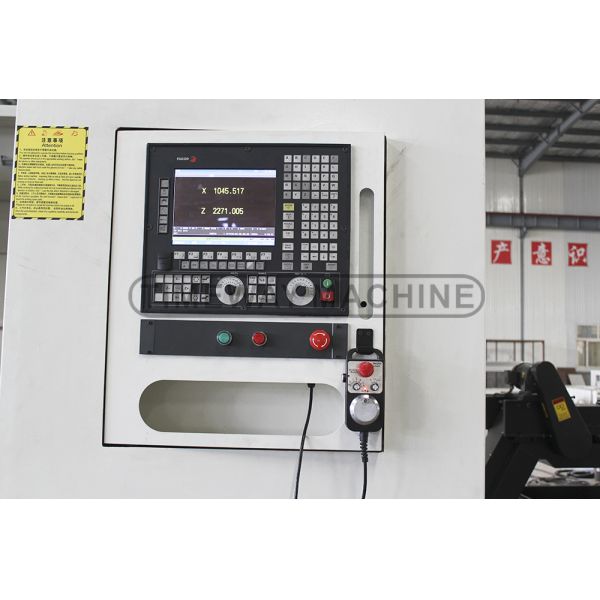

√ Manual pulse generator (MPG)

√ Automatic lubrication system

√ Oil gun

√ Manual moving tailstock

√ Tools & tool-box

√ Leveling wedge & bolts

√ Operation manual (English)

_ Pneumatic chuck

_ Other tool post

_ Steady rest

_ Follow rest

_ Air conditioner

_ Chip conveyor

_ Rear support for long pipe
_ Live centers

Specification	Unit	QK-520	QK-550	QK-640
Pipe threading range	mm	330-510	330-550	330-630
Max. swing over bed	mm	1200	1250	1400
Max. swing over cross slide	mm	710	900	800
Max. length of workpiece	mm	1500/3000/5000	1500/3000/5000	1500/3000/5000
Max. turning length	mm	1250/2750	1250/2750/4750	1250/2750/4750
Span of guideway	mm	765	1100	1100
Spindle nose	-	Thread-type	A2-28	Thread-type
Spindle bore	mm	520	550	640
Spindle speed	rpm	8-190 (manual 3steps)	23-258 (Manual 2steps)	2-120 (manual 3steps)
Chuck size	mm	1000 (electric)	1250 (manual)	1250 (manual)
Min. feed increment of X/Z-axis	mm	0.001/0.001	0.001/0.001	0.001/0.001
X/Z-axis rapid feed speed	m/min	4/4	4/4	4/4
X-axis travel	mm	520	750	750
Turret type	mm	V4	V4	V4
Section of tool shank	mm	50x50	50x50	50x50
Indexing repeatility	mm	0.008	0.008	0.008
Max. cutting force	N	30000	30000	30000
Tailstock quill diameter	mm	160	260	260 (rotary quill)
Tailstock quill travel	mm	300	300	300
Tailstock quill taper	-	MT6	metric 80	Metric 80
Main motor power	kw	22	37	37
Working accuracy	um	IT6-IT7	IT6-IT7	IT6-IT7
Surface roughness	um	Ra1.6	Ra1.6	Ra1.6
Machine length	mm	5000/6500/9000	5500/7000/9000	5600/7100/9100
Machine width	mm	2300	2500	2500
Machine height	mm	2200	2500	2500
Machine weight	tons	15/16/20	17.8/19/23	18/19.3/24
CNC system	-	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Machine Details

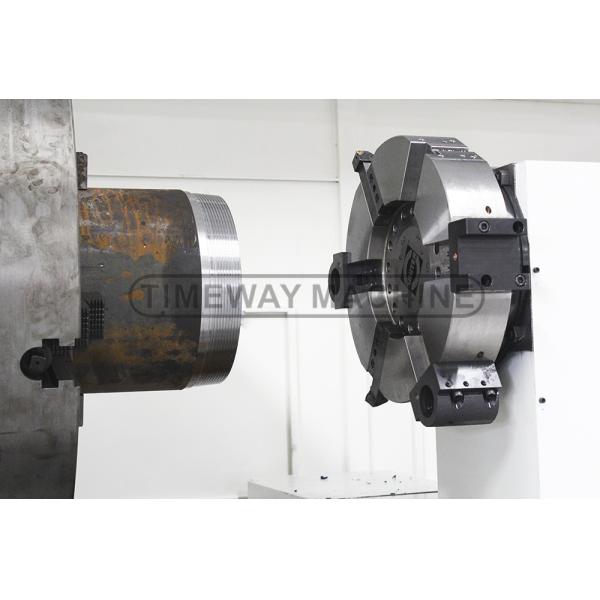

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

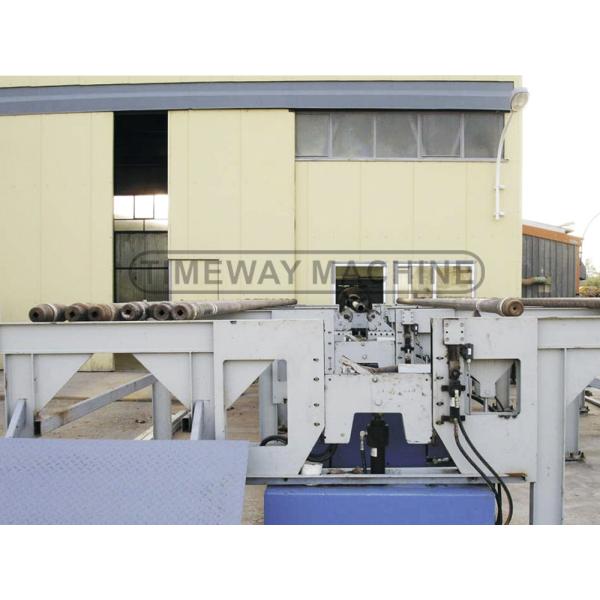

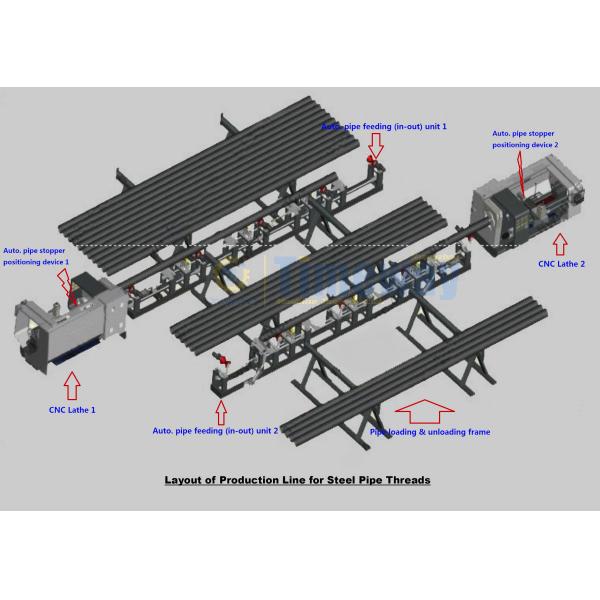

Automatic Production Line for Steel Pipe Threads (optional):

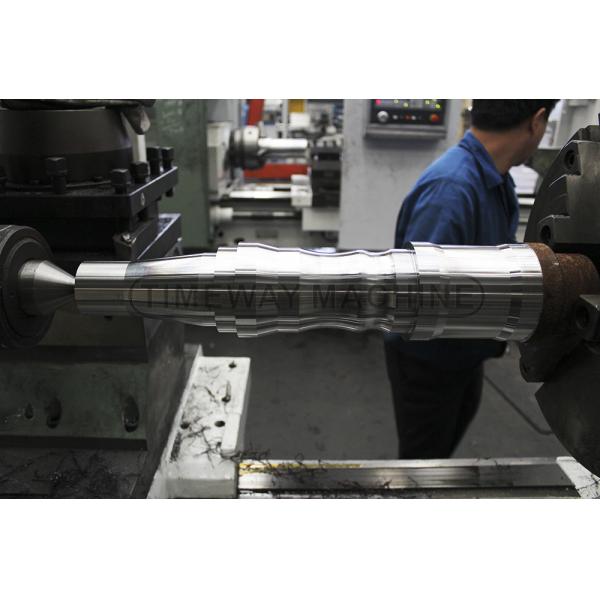

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

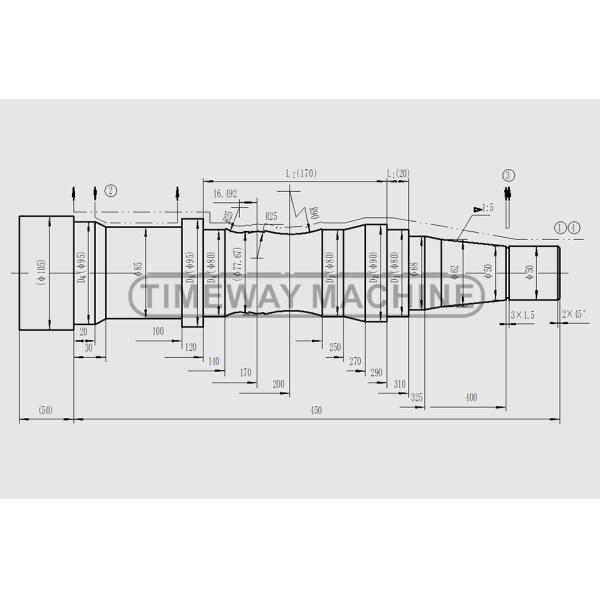

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
