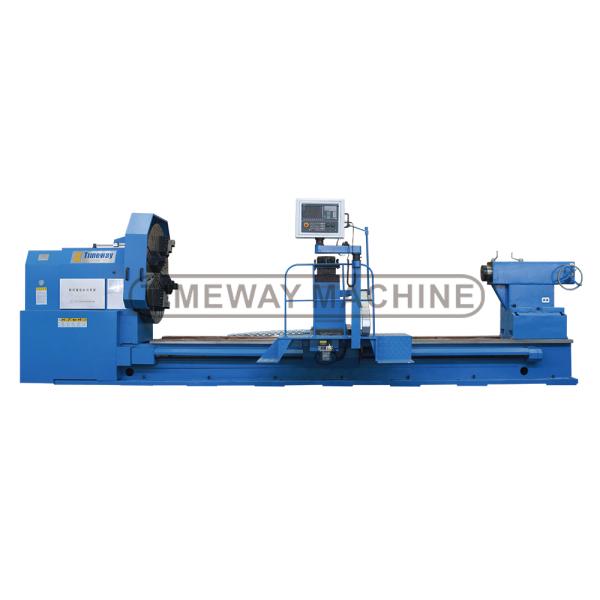

Timeway AK-1250 Heavy Duty Horizontal CNC Lathe Machine with and 4 Tool Post Stations

Name: Timeway AK1250 Heavy Duty Horizontal CNC Lathe Machine with and 4 Tool Post Stations
Brand: TIMEWAY
Price: 36 USD

Quality Timeway AK-1250 Heavy Duty Horizontal CNC Lathe Machine with and 4 Tool Post Stations for sale

Type : Horizontal

Max. Length of Workpiece (mm) : 12000

Structure : Flat Bed Lathe

Machining Capacity : Heavy Duty

Max. Weight of Workpiece(kg) : 16000

Width of bed (mm) : 12000mm

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 850 mm

Travel (Z Axis)(mm) : 900 mm

Positioning Accuracy (mm) : ±0.03

Repeatability (X/Y/Z) (mm) : ±0.012

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : AK-1250

Tool Post Stations : 4

Weight (KG) : 15000

Warranty : 1 Year

Key Selling Points : Competitive Price

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Range of Spindle Speed(r.p.m) : 3 - 320 r.p.m

Travel (Y Axis)(mm) : 900 mm

Spindle Taper : Metric 140

Cutting torque : 125 N.m

Rapid Feed Speed(mm/min) : 0 - 6000 mm/min

Feed Speed(mm/min) : 0 - 4000 mm/min

Min. Time of Tool Change(s) : 2

CNC or Not : CNC

Machine Type : Lathe Machine CNC

Function : Machining Metal

Precision : High Precision Machine

Processing type : Metal Processing Machine

Color : Customer Optional

Max.swing over bed : 1250mm

Max. swing over cross slide : 900mm

Bed width : 1100mm

Loading capacity : 16 (opt: 20)tons

Price : $36,600.00/sets 1-2 sets

MOQ : 1 set

Contact Now

One-Stop Shopping

You can click on the picture to view the products you are interested in

Timeway AK-1250 Heavy Duty Horizontal CNC Lathe Machine with and 4 Tool Post Stations

Product Description

STANDARD ACCESSORIES:

FANUC/GSK/SIEMENS CNC system,

4-jaw chuck,

4-station electric tool-post,

Work lamp,

Cooling system,

Manual pulse (MPG),

Dead centers,

Oil gun,

Pilot lamp,

Automatic lubrication pump,

Electric moving tailstock,

Tools & tool-box,

Leveling wedge & bolts,
Operation manual (English).

OPTIONAL ACCESSORIES:

6/8-station tool-post,

Steady rest,

Roller support,

Full guard,

Live centers,

Air conditioner,

Chip conveyor.

Specification

SPECIFICATION	UNIT	AK-1250
Max. swing over bed	mm	1250
Max.. swing over cross slide	mm	900
Distance between centers	mm	3000/4000/5000/6000/8000/10000/12000/-
Max. turning length	mm	2800/3800/4800/5800/7800/9800/11800/-
Bed width	mm	1100
Chuck size (4-jaw)	mm	1250
Loading capacity	tons	16 (opt: 20)
Spindle nose	mm	A2-15
Spindle bore	mm	100
Spindle taper	-	Metric 140
Spindle speed (Hydraulic 4steps, stepless)	rpm	3-320
Spindle speed (manual)	rpm	Forward: 3.15-315(21); Reverse: 3.5-291(12)
Max. cutting force	N	39200
X/Z-axis rapid feed speed	mm/min	4000/6000
Cross travel (X)	mm	850
Tool post type	-	V4
Tool post size	mm	380x380
Max. feed force (X)	N	10875
Tool section size	mm	50x50
Tailstock quill diameter	mm	260
Tailstock quill travel	mm	300
Tailstock quill taper	-	Metric 80
Working accuracy	-	IT7
Surface roughness	um	Ra2.5-3.2
Main motor power	kw	30
Machine weight	kg	15000/17200/19400/21560/26000/30400/34800/-
Machine length	mm	6400/7400/8400/9400/11400/13400/15400/-
Machine width	mm	3200
Machine height	mm	2220

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

Timeway AK-1250 Heavy Duty Horizontal CNC Lathe Machine with and 4 Tool Post Stations Images
