4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing

Type : TURNING CENTER

Max. Length of Workpiece (mm) : 1000

Machining Capacity : Heavy Duty

Max. Weight of Workpiece(kg) : 1000

Width of bed (mm) : 200 mm

Spindle Motor Power(kW) : 17

No. of Spindles : 2

Number of Axes : 2

Travel (X Axis)(mm) : 210 mm

Travel (Z Axis)(mm) : 530 mm

Positioning Accuracy (mm) : IT6

Place of Origin : China

Dimension(L*W*H) : 2875xx1500x1500

Brand Name : timeway

Model Number : AK-10

Voltage : 220V/380V

CNC Control System : FANUC

Tool Post Stations : 6

Weight (KG) : 3500

Warranty : 1 Year

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max.swing over bed : 400mm

Max. turning diameter : 300mm

Max. length of workpiece : 600mm

Cross travel (X) : 210mm

Longitudinal travel (Z) : 530mm

X/Z-axis feed speed : 1260mm/min

Main motor power : 7.5kw

Total power : 17kw

Working accuracy : IT6

Condition : New

Showroom Location : Italy, France, Peru, Thailand

Year : new

Max. Spindle Speed (r.p.m) : 4500 r.p.m

Spindle Bore(mm) : 50

Max. Turned Length (mm) : 950

Applicable Industries : Manufacturing Plant, Other

Marketing Type : New Product 2023

Core Components : Motor, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $18,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description
Slant bed CNC lathe
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
Technical Parameter
Specifications
Unit
AK-15
AK-25
Swing over bed
mm
440
520
Max. dia. cutting
mm
300
420
Max. length of workpiece
mm
600
625/1000/1500 /2000/3000
Max. turning length
mm
450
530/905/1405 /1905/2905
X-axis travel
mm
180
230
Z-axis travel
mm
480
590/965/1465/1965/2965
Rapid travel of X
m/min
20
12
Rapid travel of Z
m/min
24
15
X/Z feed speed
mm/min
1260
1260
Spindle speed
rpm
50-4500
35-3500
Spindle power
kw
11/9
18.5/15
Spindle nose
-
A2-6
A2-8
Spindle bore (Dia.)
mm
62
87
Size of chuck
inch
8
10
Front bearing dia.
mm
100
130
No. of stations
-
8
12
Indexing time
s
0.72
0.3
Size of turret
mm
25x25
25x25
Dia. of bar shank
mm
40
40
Max. travel
mm
460
490/865/1365/1865/2865
Quill Dia.
mm
80
85
Quill taper hole
-
MT4
MT5
Quill travel
mm
130
80
CNC System
-
FANUC
FANUC
Main power
kw
25
30
Weight
t
4.5
5/5.5/6.5/7.5/8.5
Length
mm
2270
3000/3380/4550/4960/6160
Width
mm
1470
1545
Height
mm
1650
1950
Accuracy/roughness
µm
IT6/Ra0.8
IT6/Ra0.8
Standard accessories: Optional accessories:
FANUC
Hydraulic chuck
Hydraulic turret
Hydraulic tailstock
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals
SIEMENS CNC system
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor
Detail Images

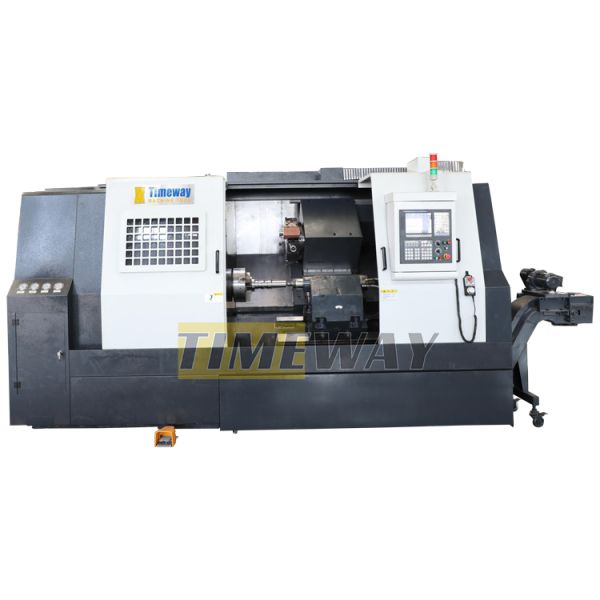

4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing

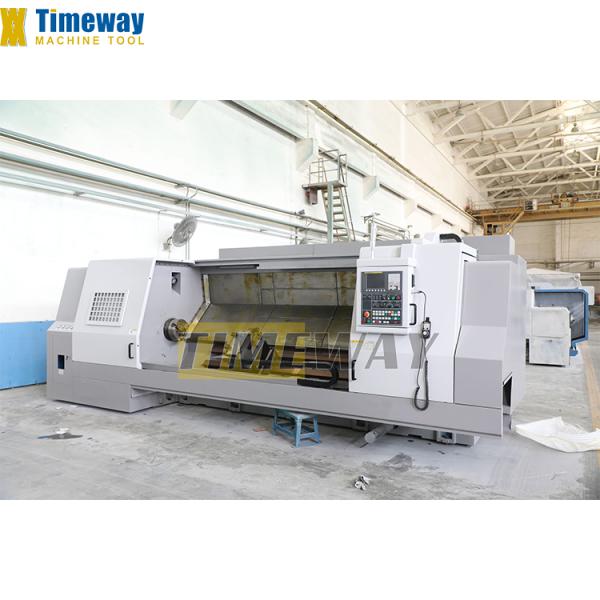

4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing

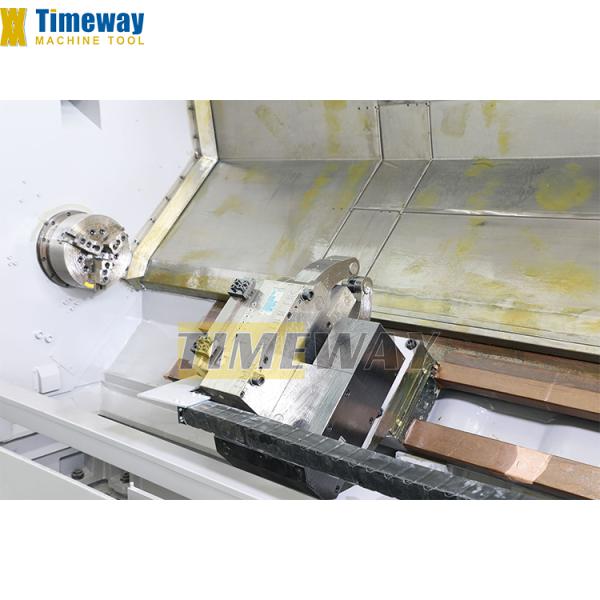

4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
Our Team
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
Why Choose Us
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
