Full Function CNC Lathe for Turning Diameter up to 300mm and Max. Length of 2890mm

Name: Full Function CNC Lathe for Turning Diameter up to 300mm and Max Length of 2890mm
Brand: TIMAC
Price: 30 USD

Quality Full Function CNC Lathe for Turning Diameter up to 300mm and Max. Length of 2890mm for sale

Type : Horizontal

Max. Length of Workpiece (mm) : 3000

Structure : Flat Bed Lathe

Machining Capacity : Light Duty

Width of bed (mm) : 110 mm

Spindle Motor Power(kW) : 22

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 305 mm

Travel (Z Axis)(mm) : 2965 mm

Place of Origin : Henan, China

Brand Name : TIMAC

Model Number : CK-500/CK-560/CK-660

Voltage : As customer's request

Tool Post Stations : 12

Weight (KG) : 8000

Warranty : 1 Year

Key Selling Points : Competitive Price

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC

Automatic Grade : Automatic

cnc lathe : Full Function CNC Lathe

Power(W) : 22kw

Max. Swing Diameter : 660mm

X-travel : 305mm

Y-travel : 2065mm

workpiece length : 1000mm

turning length : 1500mm

turning diameter : 300mm

Condition : New

Applicable Industries : Manufacturing Plant

Showroom Location : France, Peru, Mexico

Marketing Type : Hot Product 2019

Core Components : Bearing, PLC

Year : 2023

Max. Spindle Speed (r.p.m) : 2500 r.p.m

Spindle Bore(mm) : 92

Max. Turned Length (mm) : 2890

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 50 Set/Sets per Month

Price : $30,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Full Function CNC Lathe for Turning Diameter up to 300mm and Max. Length of 2890mm

Product Paramenters

Specifications	Units	CK-500	CK-560	CK-660
Max.swing over bed	mm	Φ530	Φ560	Φ660
Max.swing over carriage	mm	Φ310	Φ330	Φ430
Width of bed	mm	405	405	405
Max.length of workpiece	mm	750/1000/1500/2000/3000
Max.turning length	mm	650/900/1300/1900/2900
Max.weight between center	-	A2-8	A2-8	D8
Spindle nose	mm	Φ80	Φ80	Φ105
Spindle bore	mm	MT7	MT7	Metric113
Steps of spindle speed (Manual)	-	4 steps (variable)	4 steps (variable)	4 steps (variable)
Range of spindle speed	rpm	27-1630	27-1630	27-1630
Rapid feed for Z-axis	m/min	10	10	10
Rapid feed for X-axis	m/min	8	8	8
Max.travel of Z-axis	mm	720/970/1470/1970/2970
Max.travel of X-axis	mm	300	320	365
Min.input	mm	0.001	0.001	0.001
Tool post stations	-	V4/V6	V4/V6	V4/V6
Tool cross section	mm	32x32	32x32	32x32
External diameter of tailstock sleeve	mm	Φ75	Φ75	Φ75
Taper of bore of tailstock sleeve	-	MT5	MT5	MT5
Max.traverse of tailstock sleeve	mm	150	150	150
Power of main motor	kw	7.5	7.5	11
Power of cooling pump	kw	0.09	0.09	0.09
Overall dimensions(L x W x H)	mm	2250/2500/3000/3500/4500x1250x1580
Machine weight	kg	2700/3000/3600/4100/4700			2800/3100/3700/4300/5300
Working accuracy	mm	IT6	IT6	IT6
Roughness	µm	Ra0.8	Ra0.8	Ra0.8
Bed structure	-	45°	45°	45°
CNC system	-	FANUC or SIEMENS	FANUC or SIEMENS	FANUC or SIEMENS
Machine length	mm	2875/3415/3440	2270	3000/3380/4550/4960/6160
Machine width & height	mm	1500x1500	1470x1470	1545x1950
Machine weight	tons	3.5/4/4.5	4.5	5/5.5/6.5/7.5/8.5

Company Introduction

Package & Transportation

Customers Visited

Exhibition & Training

Export Cases

Our Team

FAQ

Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

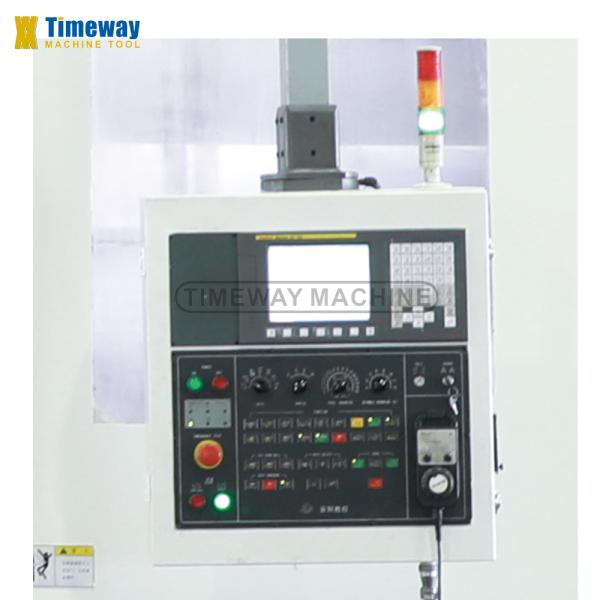

Full Function CNC Lathe for Turning Diameter up to 300mm and Max. Length of 2890mm Images
