2000mm Max. Turned Length Professional Manufacturing CNC Lathe Machine High Precision

Name: 2000mm Max Turned Length Professional Manufacturing CNC Lathe Machine High Precision
Brand: TIMEWAY
Price: 30 USD

Quality 2000mm Max. Turned Length Professional Manufacturing CNC Lathe Machine High Precision for sale

Type : Horizontal, Axis Mobile

Max. Length of Workpiece (mm) : 350

Structure : Slant Bed Lathe

Machining Capacity : Medium Duty

Width of bed (mm) : 300 mm

Spindle Motor Power(kW) : 7.5

No. of Spindles : Single

Number of Axes : 3

Travel (X Axis)(mm) : 210 mm

Travel (Z Axis)(mm) : 450 mm

Positioning Accuracy (mm) : ±0.002

Repeatability (X/Y/Z) (mm) : ±0.001

Place of Origin : Henan, China

Dimension(L*W*H) : 2600x1800x1600

Brand Name : TIMEWAY

Model Number : CK-32

Voltage : 220V/380V,50HZ

CNC Control System : Fanuc/Siemens/GSK

Tool Post Stations : 12, 8, 10, 6, 4

Weight (KG) : 2700

Warranty : 1 Year

Key Selling Points : Long Service Life

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC

Product name : CNC Lathe Mechine

Name : Metal Cnc Lathe

Keyword : Automatic CNC Lathe Machine

Function : Machining Metal

After-sales Service Provided : Online Support

Product type : Economical CNC Lathe

Precision : High Precision Machine

Machine Type : Slat Bed CNC Lathe

Condition : New

Spindle Bore(mm) : 56

Toolpost Brand : enquiry us

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Russia

Year : 2023

Max. Spindle Speed (r.p.m) : 3500 r.p.m

Max. Turned Length (mm) : 2000

Marketing Type : Hot Product

Core Components : Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, enquiry us

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

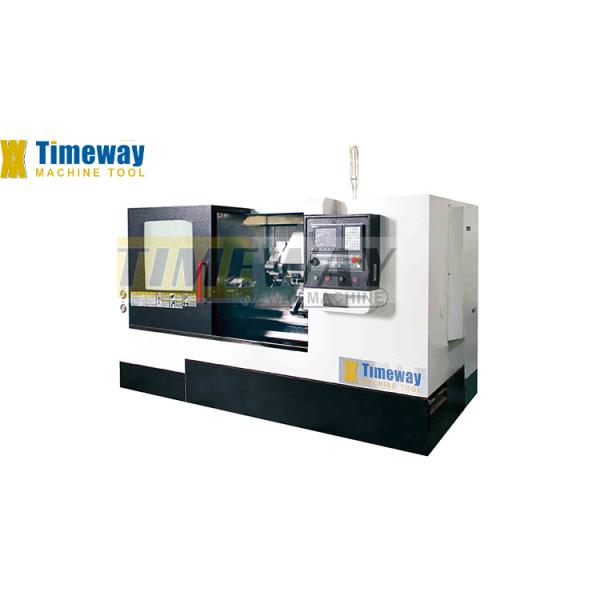

CK - 32

Slant Bed CNC Lathe:

2000mm Max. Turned Length Professional Manufacturing CNC Lathe Machine High Precision

SPECIFICATION	UNIT	CK-32	CK-36	CK-45
Max, swing over bed	mm	420	550	500
Max. swing over cross slide	mm	220	220	220
Standard turning diameter	mm	210	210	210
Max. turning diameter	mm	320	340	360
Max,turning length	mm	350	500	750
Spindle speed	rpm	3500	3000	2500
Spincle nose	-	A2-5	A2-6	A2-6
Spindle bore	mm	56	62	66
Hydraulic chuck sizc	mm	160	200	200
Cross travel(X)	mm	210	230	220
Longitudinal travel(Z)	mm	450	600	850
X/Z-axis rapid feed speed	m/min	20/12	24/24	20/20
Hydraulic cool post type		80-8T
Tool section size	mm	25x25/32
Tailstock quill diameter	mm	52	110	110
Tailstock quill travel	mm	60	100	100
Tailstock quill taper		MT4	MT5	MT4
Bed structure		45° Inlegral bed
Guideway type		Linear/Sliding
Main motor power	kw	7.5	11	7.5
Power supply	kva	30	25	30
Machine dimensions(LxWxH)	mm	2600x1800x1600	2900x1800x1750	2900x1800x1600
Machine weight	kg	2700	3200	3200

Shipping

Exhibitions

TIMEWAY at EMO Hannover

TIMEWAY machine participates in the EMO Hannover exhibition every time, which is Europe's leading machine tool and metal processing technology exhibition. At the exhibition, TIMEWAY machine demonstrated its advanced machine tools and processing technology, as well as comprehensive solutions for different industries and application fields. These solutions include precision machining and production of high-quality metal parts for the automotive, aerospace, energy, and other sectors.

TIMEWAY at CIMT

CIMT is held in China, the hometown of TIMEWAY machine, so TIMEWAY machine will participate in the CIMT exhibition every time. This is the China International Machine Tool Exhibition and one of the largest machine tool exhibitions in Asia. At the exhibition, TIMEWAY displayed its diversified machine tool products, including CNC machine tools, machining centers, gear processing machine tools, precision measuring equipment, etc.

TIMEWAY at Metalloobrabotka

TIMEWAY participated in the Metalloobrabotka exhibition held in Moscow, which is a professional exhibition for the metal processing and machine tool industry in Russia and surrounding areas. At the exhibition, TIMEWAY's booth attracted the attention of many exhibitors and industry experts. The company's professional team had in-depth exchanges with exhibitors and visitors from Russia and other countries and regions, sharing valuable experience and the latest industry trends. In addition, TIMEWAY machine has also participated in exhibitions in many countries and regions.

Company Introduction

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
