Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power

Name: Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7510 kW Spindle Motor Power
Brand: TIMAC
Price: 16 USD

Quality Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power for sale

Type : Horizontal

Max. Length of Workpiece (mm) : 2000 mm

Structure : Flat Bed Lathe

Machining Capacity : Heavy Duty

Width of bed (mm) : 390 mm

Spindle Motor Power(kW) : 7.5/10

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 320 mm

Travel (Z Axis)(mm) : 365 mm

Positioning Accuracy (mm) : 0.001 mm

Repeatability (X/Y/Z) (mm) : 0.005

Place of Origin : China

Brand Name : TIMAC

Model Number : CK-660

Voltage : 220/380V

CNC Control System : FANUC

Tool Post Stations : 8, 6

Weight (KG) : 2100

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Not Available

Warranty of core components : 1 Year

CNC or Not : CNC

Automatic Grade : Automatic

After-sales Service Provided : Online support

CNC Lathe : Economical Flat bed CNC Lathe

Certification : CE ISO

Max. Swing Diameter (mm) : 660

Steps of spindle speed : Variable

Rapid feed for axis Z : 10 m/min

Main motor power : 11/15 k W

Machine weight : 2100kg

Condition : New

Spindle Bore(mm) : 105

Showroom Location : Italy, France, Germany, Viet Nam, Philippines, Brazil

Core Components : Bearing, Motor, Pump, Engine

Year : new

Max. Spindle Speed (r.p.m) : 1600 r.p.m

Max. Turned Length (mm) : 430

Applicable Industries : Manufacturing Plant, Other

Marketing Type : New Product

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 50 Set/Sets per Month

Price : $16,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Flat bed CNC lathe

Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power

Technical Parameter

Specifications	Units	CK-500	CK-660
Max.swing over bed	mm	Φ530	Φ660
Max.swing over carriage	mm	Φ310	Φ430
Width of bed	mm	405	405
Max.length of workpiece	mm	750/1000/1500/2000/3000
Max.turning length	mm	650/900/1300/1900/2900
Max.weight between center	-	A2-8	D8
Spindle nose	mm	Φ80	Φ105
Spindle bore	mm	MT7	Metric113
Steps of spindle speed (Manual)	-	4 steps (variable)	4 steps (variable)
Range of spindle speed	rpm	27-1630	27-1630
Rapid feed for Z-axis	m/min	10	10
Rapid feed for X-axis	m/min	8	8
Max.travel of Z-axis	mm	720/970/1470/1970/2970
Max.travel of X-axis	mm	300	365
Min.input	mm	0.001	0.001
Tool post stations	-	V4/V6	V4/V6
Tool cross section	mm	32x32	32x32
External diameter of tailstock sleeve	mm	Φ75	Φ75
Taper of bore of tailstock sleeve	-	MT5	MT5
Max.traverse of tailstock sleeve	mm	150	150
Power of main motor	kw	7.5	11
Power of cooling pump	kw	0.09	0.09
Overall dimensions(L x W x H)	mm	2250/2500/3000/3500/4500x1250x1580
Machine weight	kg	2700/3000/3600/4100/4700	2800/3100/3700/4300/5300

Standard accessories: Optional accessories:

FANUC

Manual 3-jaw chuck

4-tation electric tool post

Electronic handwheel

Lubrication system

Cooling system

Work lamp

Pilot lamp

Full protection guard

Heat exchanger

Chip conveyor

Leveling blocks & bolts

Tools & tool-box

Operation manuals

SIEMENS CNC system

Hydraulic hollow chuck

Air conditioner

Tool setter

Chip conveyor

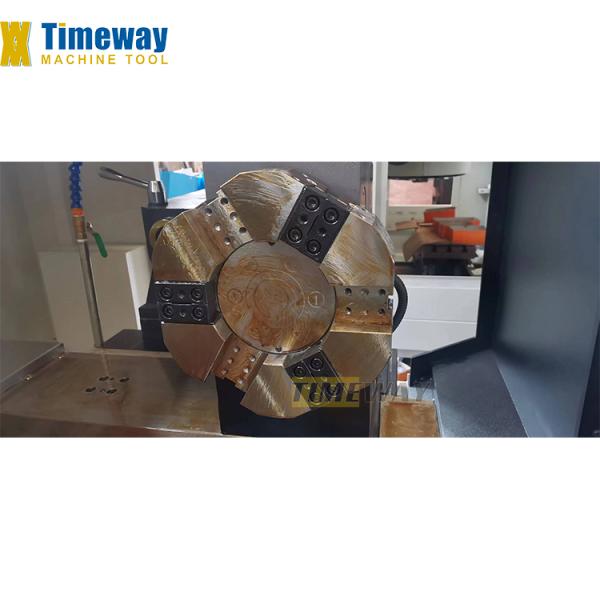

Detail Images

Our Team

Why Choose Us

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
